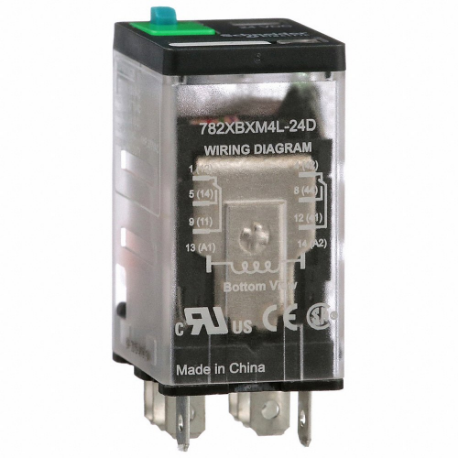

SCHNEIDER ELECTRIC 782XBXM4L-24D General Purpose Relay, Socket Mounted, 15 A Current Rating, 24 VDC, 8 Pins/Terminals, DPDT
Item: CU2BJMModel: 782XBXM4L-24DCross Ref: 6CWC3
7 In Stock
Ships within 2 days via
5.00% off
€29.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | General Purpose Relay |
| Amps Rating | 15A |
| Coil Voltage | 24V DC |
| Contact Form | DPDT |
| Contact Rating (ac) | 7.55A @ 250V (Nc), 10A @ 151/277V, 15A @ 120 to 277/120/150/250V (No) |
| Current Rating | 15A |
| Dc Contact Rating | 7.55A @ 28V (Nc), 15A @ 28V (No) |
| Dielectric Strength | 1500V AC Between Contacts, 2000V AC Between Coil And Contact, 2000V AC Between Poles |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Hp @ 120v | 1/2 hp |
| Hp @ 240v | 1 hp |
| Mechanical Operating Durability | 10000000 |
| Mfr. Series | 782 Series |
| Motor Rating | Yes |
| Number Of Pins | 8 |
| Number Of Pins/terminals | 8 |
| Product Datasheet | schneider-electric-782xbxm4l-24d.pdf |
| Push-to-test Button | Lockable Push Test Button |
| Relay Mounting Style | Socket |
| Socket Code | D |
| Status Indicator | LED Indicatormechanical Flag |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.72 |
| Ship length (cm) | 3.91 |
| Ship width (cm) | 2.11 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Contact Form | Push-to-test Button | Relay Mounting Style | Number Of Pins/terminals | Electrical Connection Type | Coil Voltage | Current Rating | Socket Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | Dpst-No | No Test Button | Din-Rail, Surface | 6 | Tab | 24V AC | 30A | - | €31.48 | |
| RPF2AF7 | - | - | - | - | - | 120V AC | 30A | - | €31.48 | |
| RPF2AP7 | Dpst-No | No Test Button | Din-Rail, Surface | 6 | Tab | 230V AC | 30A | - | €31.48 | |
| RPF2BJD | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 12V DC | 30A | - | €33.73 | |
| RPF2BBD | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 24V DC | 30A | - | €33.73 | |
| RPF2BB7 | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 24V AC | 30A | - | €33.73 | |
| RPF2BF7 | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 120V AC | 30A | - | €33.73 |
