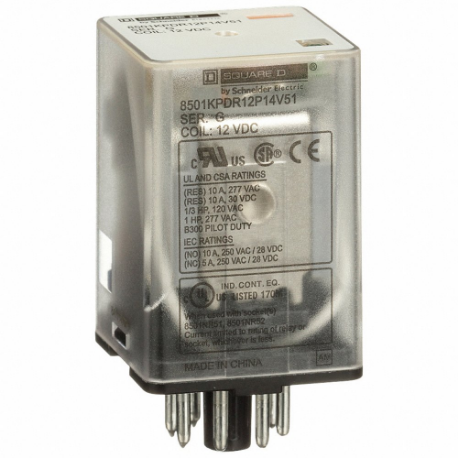

| Ac Contact Rating | 10A @ 300V |
| Coil Volts | 12V DC |
| Contact Form | Dpdt |
| Current Rating | 10A |
| Dc Contact Rating | 5A @ 30V |
| Electrical Connection Type | Pin |
| Hp @ 120vac | 333/1000 hp |
| Hp @ 240v Ac | Not Rated |
| Mfr. Series | Square D 8501K Series |
| Motor Rating | Yes |
| Number Of Pins/terminals | 8 |
| Push-to-test Button | No Test Button |
| Relay Mounting Style | Socket |
| Sealing | Enclosed |
| Socket Code | A |
| Status Indicator | Led Indicatormechanical Flag |
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Ac Contact Rating | Body Height | Body Width | Coil Volts | Contact Form | Dc Contact Rating | Number Of Pins | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
782XBXC-120A | 15A @ 120V, 12A @ 277V | 1.4" | 0.83" | 120 VAC | DPDT | 12A @ 28V | 8 | 1.64" | €15.24 | |
|
782XBXC-24D | 15A @ 120V, 12A @ 277V | 1.4" | 0.83" | 24 VDC | DPDT | 12A @ 28V | 8 | 1.64" | €15.24 | |
 |
783XCXM4L-24D | 15A @ 120V, 12A @ 277V | 1.6" | 1.2" | 24 VDC | 3PDT | 12A @ 28V | 11 | 1.85" | €25.73 | |
 |
784XDXC-12D | 15A @ 120V, 12A @ 277V | 1.4" | 1.6" | 12 VDC | 4PDT | 12A @ 28V | 14 | 1.64" | €22.39 | |
 |
782XBXM4L-24A | 15A @ 277V | 1.54" | 0.83" | 24 VAC | DPDT | 15A @ 28V | 8 | 1.78" | €20.83 | |
 |
782XBXM4L-240A | - | 1.54" | 0.83" | 240V AC | - | - | 8 | 1.78" | €20.83 | |
 |
8501KPR12V36 | - | - | - | - | - | - | - | - | - | RFQ
|
