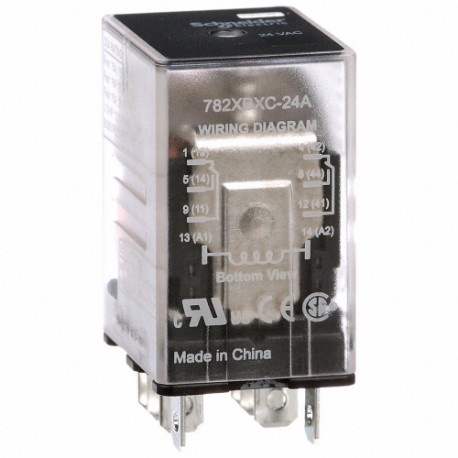

SCHNEIDER ELECTRIC 782XBXC-24A General Purpose Relay, Socket Mounted, 15 A Current Rating, 24 VAC, 8 Pins/Terminals, DPDT
Item: CU2BJHModel: 782XBXC-24ACross Ref: 6CWA2
7 In Stock
Ships within 2 days via
13.00% off
€18.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | General Purpose Relay |
| Amps | 15A |
| Coil Voltage | 24V AC |
| Contact Form | DPDT |
| Contact Rating (ac) | 7.55A @ 250V (Nc), 10A @ 151/277V, 15A @ 120 to 277/120/150/250V (No) |
| Dc Contact Rating | 7.55A @ 28V (Nc), 15A @ 28V (No) |
| Dielectric Strength | 1500V AC Between Contacts, 2000V AC Between Coil And Contact, 2000V AC Between Poles |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Hp @ 120v | 1/2 hp |
| Hp @ 240v | 1 hp |
| Mechanical Operating Durability | 10000000 |
| Mfr. Series | 782 Series |
| Motor Rating | Yes |
| No. Of Pins | 8 |
| No. Of Pins/terminals | 8 |
| Product Datasheet | schneider-electric-782xbxc-24a.pdf |
| Push-to-test Button | No Test Button |
| Relay Mounting Style | Socket |
| Socket Code | D |
| Status Indicator | Mechanical Flag |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.72 |
| Ship length (cm) | 3.48 |
| Ship width (cm) | 2.11 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Relay Mounting Style | Coil Voltage | Type | Frequency | Contact Form | Push-to-test Button | No. Of Pins/terminals | Electrical Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | DIN Rail, Surface | 24V AC | - | 50/60 Hz | DPST, NO | No Test Button | 6 | Tab | €23.38 | |
| RPF2AF7 | - | 120V AC | - | 50/60 Hz | - | - | - | - | €23.38 | |
| RPF2AP7 | DIN Rail, Surface | 230V AC | - | 50/60 Hz | DPST, NO | No Test Button | 6 | Tab | €23.38 | |
| RPF2BJD | DIN Rail, Surface | 12V DC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BBD | DIN Rail, Surface | 24V DC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BB7 | DIN Rail, Surface | 24V AC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BF7 | DIN Rail, Surface | 120V AC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 |
