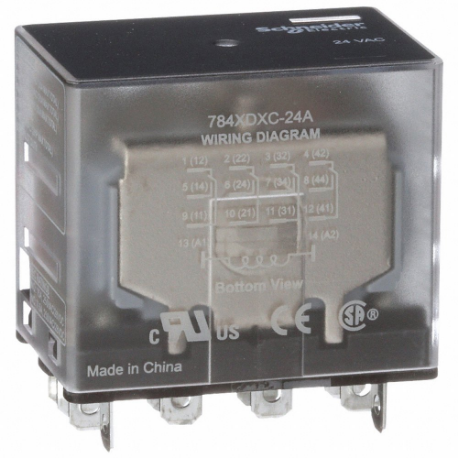

SCHNEIDER ELECTRIC 784XDXC-24A General Purpose Relay, Socket Mounted, 15 A Current Rating, 24 VAC, 14 Pins/Terminals
Get it by Monday, Aug 31
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Relay |
| Ac Contact Rating | 7.55A @ 250V10A @ 151/277V15A @ 120 To 277/120/150/250V |
| Amps | 15A |
| Coil Voltage | 24V AC |
| Contact Form | 4PDT |
| Contact Rating (ac) | 7.55A @ 250V, 10A @ 151/277V, 15A @ 120 to 277/120/150/250V |
| Dc Contact Rating | 7.55A @ 28V (Nc), 15A @ 28V (No) |
| Dielectric Strength | 1500V AC Between Contacts, 2000V AC Between Coil And Contact, 2000V AC Between Poles |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Hp @ 120v | 1/2 hp |
| Hp @ 240v | 3/4 hp |
| Mechanical Operating Durability | 10000000 |
| Mfr. Series | 784 Series |
| Motor Rating | Yes |
| No. Of Pins | 14 |
| No. Of Pins/terminals | 14 |
| Product Datasheet | schneider-electric-784xdxc-24a.pdf |
| Push-to-test Button | No Test Button |
| Relay Mounting Style | Socket |
| Socket Code | F |
| Status Indicator | Mechanical Flag |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.72 |
| Ship length (cm) | 3.48 |
| Ship width (cm) | 4.06 |
| Country of Origin | CN |
