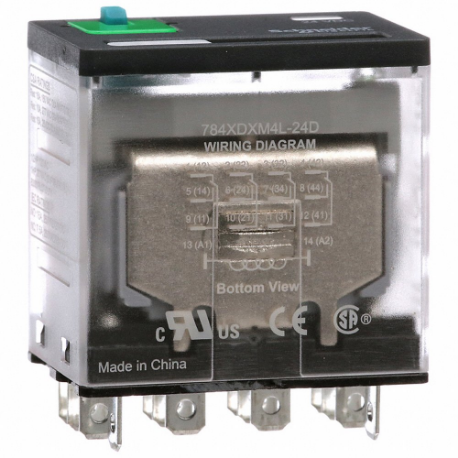

SCHNEIDER ELECTRIC 784XDXM4L-24D General Purpose Relay, Socket Mounted, 15 A Current Rating, 24 VDC, 14 Pins/Terminals
Item: CU2BJKModel: 784XDXM4L-24DCross Ref: 6CWK3
7 In Stock
Ships within 2 days via
10.00% off
€42.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | General Purpose Relay |
| Ac Contact Rating | 7.55A @ 250V10A @ 151/277V15A @ 120 To 277/120/150/250V |
| Amps Rating | 15A |
| Coil Voltage | 24V DC |
| Contact Form | 4PDT |
| Contact Rating (ac) | 7.55A @ 250V, 10A @ 151/277V, 15A @ 120 to 277/120/150/250V |
| Current Rating | 15A |
| Dc Contact Rating | 7.55A @ 28V (Nc), 15A @ 28V (No) |
| Dielectric Strength | 1500V AC Between Contacts, 2000V AC Between Coil And Contact, 2000V AC Between Poles |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Hp @ 120v | 1/2 hp |
| Hp @ 240v | 3/4 hp |
| Mechanical Operating Durability | 10000000 |
| Mfr. Series | 784 Series |
| Motor Rating | Yes |
| Number Of Pins | 14 |
| Number Of Pins/terminals | 14 |
| Push-to-test Button | Lockable Push Test Button |
| Relay Mounting Style | Socket |
| Socket Code | F |
| Status Indicator | LED Indicatormechanical Flag |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 2.72 |
| Ship length (cm) | 3.91 |
| Ship width (cm) | 4.06 |
| Country of Origin | CN |
Product Variants
| Product | Model | Contact Form | Dc Contact Rating | Coil Voltage | Number Of Pins | Relay Mounting Style | Push-to-test Button | Number Of Pins/terminals | Socket Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
782XBXC-120A | DPDT | 12A @ 28V | 120V AC | 8 | Socket | No Test Button | 8 | D | €22.87 | |
|
782XBXC-24D | DPDT | 12A @ 28V | 24V DC | 8 | Socket | No Test Button | 8 | D | €22.87 | |
 |
783XCXM4L-24D | 3PDT | 12A @ 28V | 24V DC | 11 | Socket | Lockable Push Test Button | 11 | E | €38.55 | |
 |
784XDXC-12D | 4PDT | 12A @ 28V | 12V DC | 14 | Socket | No Test Button | 14 | F | €35.60 | |
 |
782XBXM4L-24A | DPDT | 15A @ 28V | 24V AC | 8 | Socket | Lockable Push Test Button | 8 | D | €31.25 | |
 |
782XBXM4L-240A | DPDT | - | 240V AC | 8 | Socket | Lockable Push Test Button | 8 | D | €31.25 | |
 |
8501KPR12V36 | DPDT | 5A @ 30V | 12V AC | 8 | Socket | No Test Button | 8 | A | - | RFQ
|
