Spherical Rod Ends

QA1 -

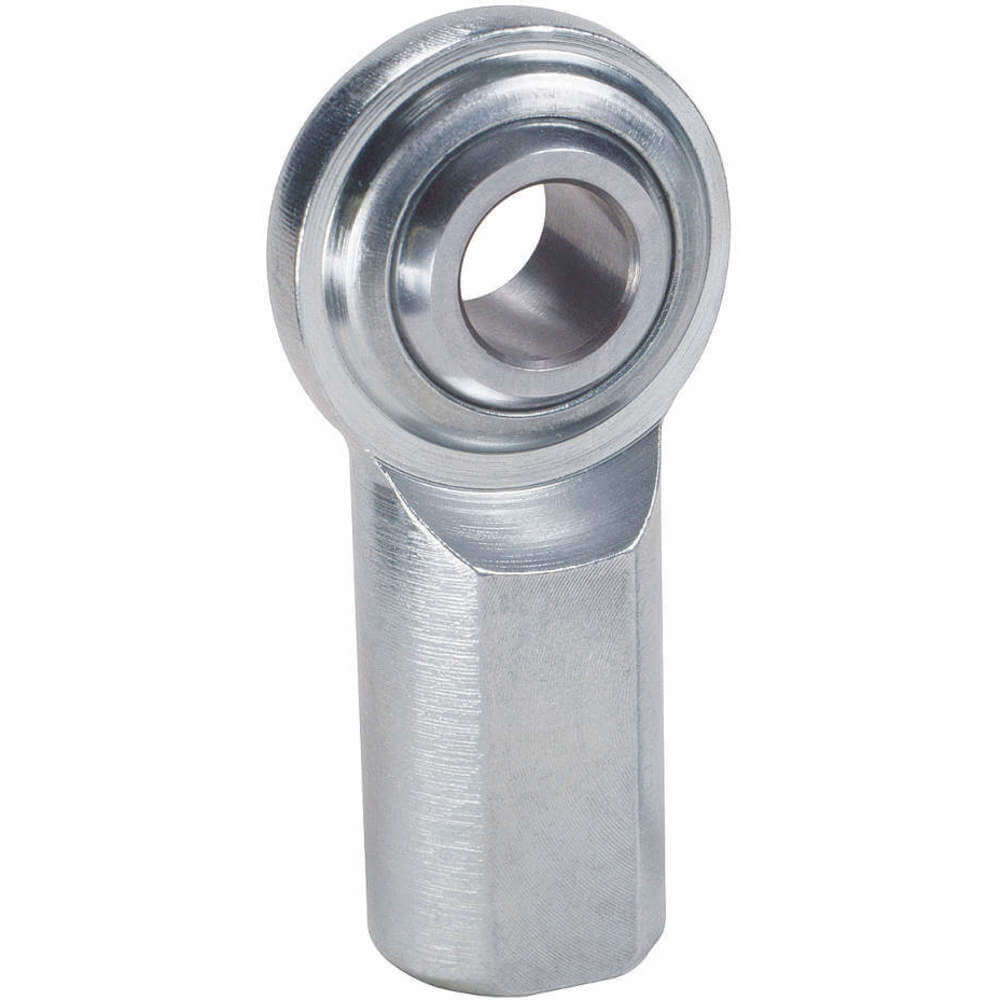

CF Series Female Rod End

A

Style	Model	Shank Thread Direction	Shank Thread Size	Bore Dia.	Ball Dia.	Dimension E	Head Width	Head Outside Diameter	Max. Angular Misalignment	Price
A	CFL4	Left Hand	1/4"-28	1/4"	1/2"	3/4"	1/4"	3/4"	27°	€10.88
A	CFL3	Left Hand	#10-32	3/16"	0.437"	5/8"	0.234"	5/8"	20°	€8.78
A	CFL6	Left Hand	3/8"-24	-	-	1"	0.359"	1"	22°	€16.08
A	CFL7	Left Hand	7/16"-20	7/16"	0.812"	1 1/8"	0.406"	1 1/8"	21°	€14.13
A	CFL8	Left Hand	1/2"-20	1/2"	0.937"	1.312"	0.453"	1 1/4"	26°	€17.95
A	CFL5	Left Hand	5/16"-24	5/16"	5/8"	7/8"	0.312"	7/8"	22°	€9.46
A	CFL10	Left Hand	5/8"-18	5/8"	1 1/8"	1 1/2"	0.484"	1 1/2"	26°	€25.40
A	CFL12	Left Hand	3/4"-16	3/4"	1.312"	1 3/4"	0.593"	1 3/4"	24°	€35.24
A	CFR3	Right Hand	#10-32	3/16"	0.437"	5/8"	0.234"	5/8"	20°	€8.78
A	CFR5	Right Hand	5/16"-24	5/16"	5/8"	7/8"	0.312"	7/8"	22°	€9.46
A	CFR8	Right Hand	1/2"-20	1/2"	0.937"	1.312"	0.453"	1 1/4"	26°	€17.95
A	CFR6	Right Hand	3/8"-24	3/8"	0.719"	1"	0.359"	1"	22°	€9.59
A	CFR7	Right Hand	7/16"-20	7/16"	0.812"	1 1/8"	0.406"	1 1/8"	21°	€14.13
A	CFR4	Right Hand	1/4"-28	1/4"	1/2"	3/4"	1/4"	3/4"	27°	€10.88
A	CFR10	Right Hand	5/8"-18	5/8"	1 1/8"	1 1/2"	0.484"	1 1/2"	26°	€25.81
A	CFR12	Right Hand	3/4"-16	3/4"	1.312"	1 3/4"	0.593"	1 3/4"	24°	€34.18

SEALMASTER -

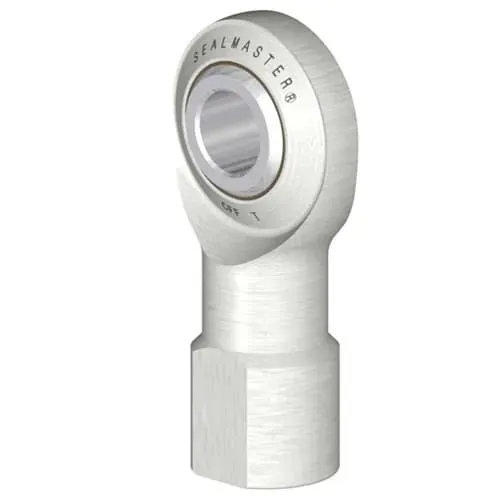

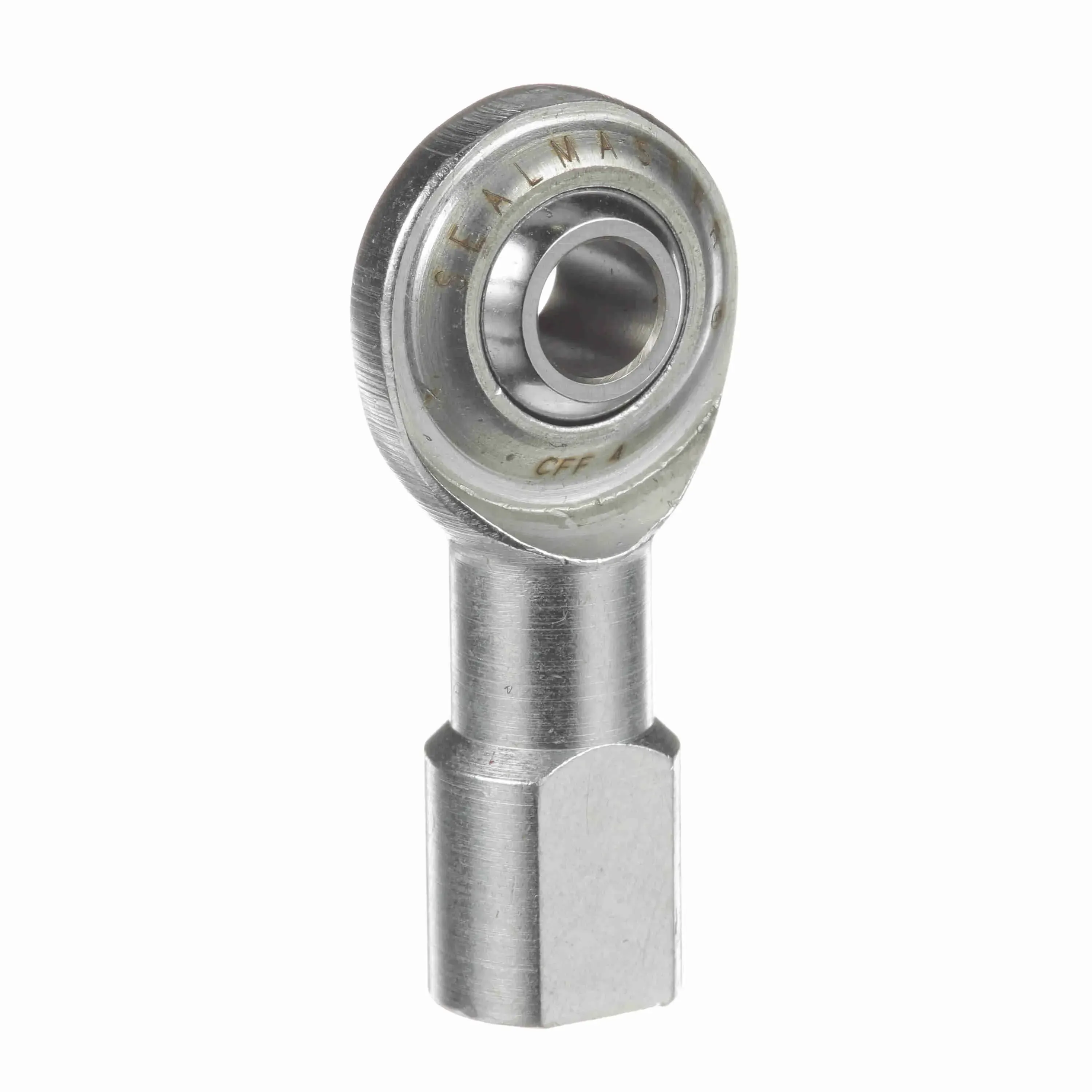

CFF Series Female Rod Ends

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Style	Model	Bore Dia.	Ball Diameter	Bore Diameter	Ball Material	Type	Race Material	Price
A	CFF 3	-	0.437"	3/16"	Alloy Steel	Female Rod End	-	€11.68
B	CFF 4Y	-	1/2"	1/4"	Alloy Steel	Female Rod End	-	€17.42
C	CFFL 4T	-	-	1/4"	Alloy Steel	-	Teflon	€239.16
D	CFF 8Y	-	-	-	-	-	-	€33.11
E	CFFL 4Y	-	-	-	-	-	-	€17.42
F	CFF 4	-	1/2"	1/4"	Alloy Steel	Female Rod End	-	€12.06
G	CFF 4TY	-	-	-	-	-	-	€45.94
E	CFF 3Y	-	-	-	-	-	-	€18.97
E	CFFL 4TY	-	-	1/4"	Alloy Steel	-	Teflon	€229.73
H	CFFL 16	-	-	-	-	-	-	€206.32
E	CFFL 4YN	-	-	1/4"	Alloy Steel	-	-	€25.54
E	CFFL 8YN	-	-	-	-	-	-	€36.49
E	CFF 4YN	-	-	1/4"	Alloy Steel	-	-	€25.54
I	CFF 6TY	-	-	-	-	-	-	€54.91
E	CFFL 3Y	-	-	-	-	-	-	€18.97

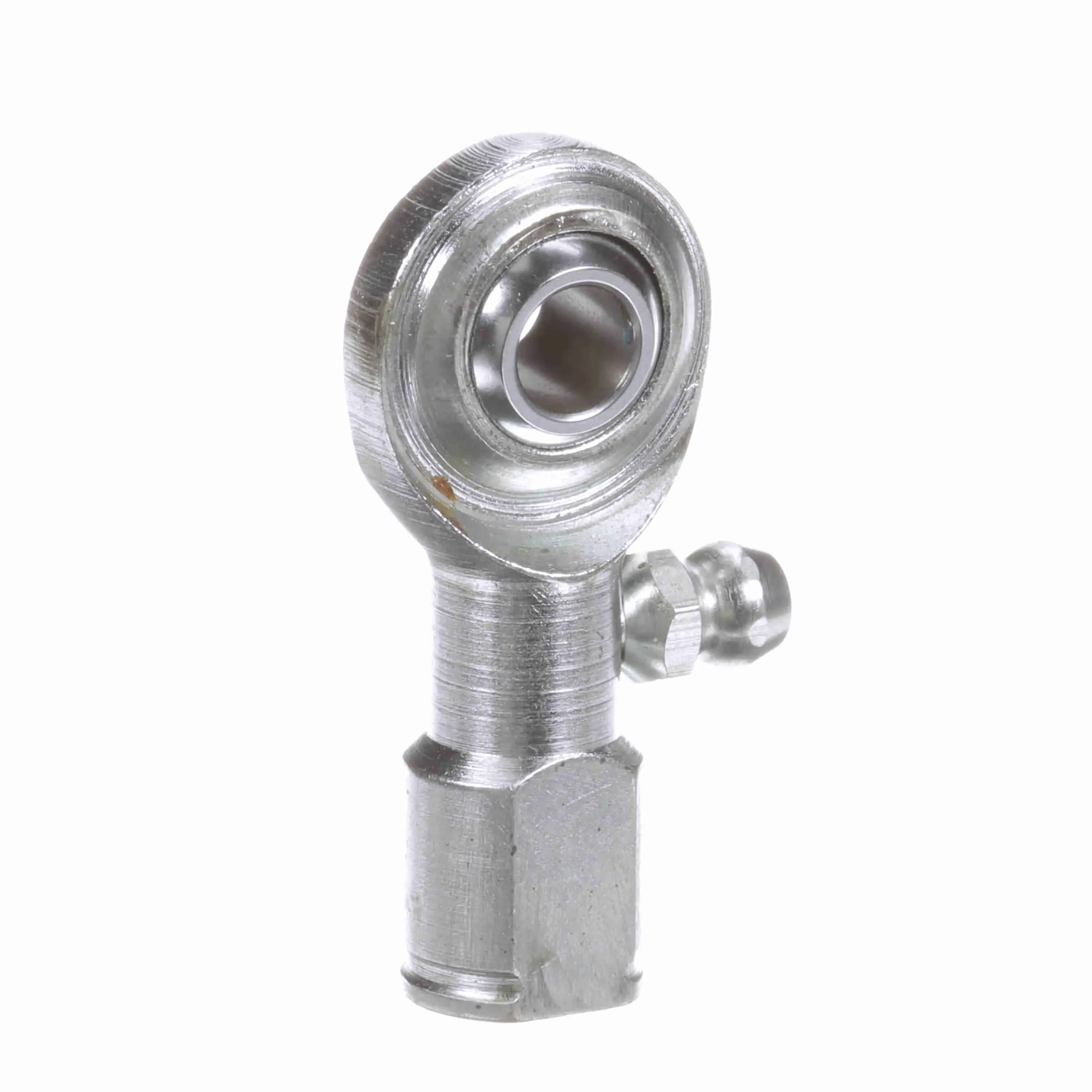

J	CFFL 4N	-	1/2"	1/4"	Alloy Steel	Female Rod End	-	€20.65
K	CFFL 4	-	1/2"	1/4"	Alloy Steel	Female Rod End	-	€14.43
L	CFF 4T	-	1/2"	1/4"	Alloy Steel	Female Rod End	Teflon	€43.01
E	CFF 3TY	0.19"	-	-	Alloy Steel	-	Teflon	€263.34
E	CFFL 3TY	0.19"	-	-	Alloy Steel	-	Teflon	€232.47
E	CFFL 3	0.19"	-	-	Alloy Steel	-	-	€13.46

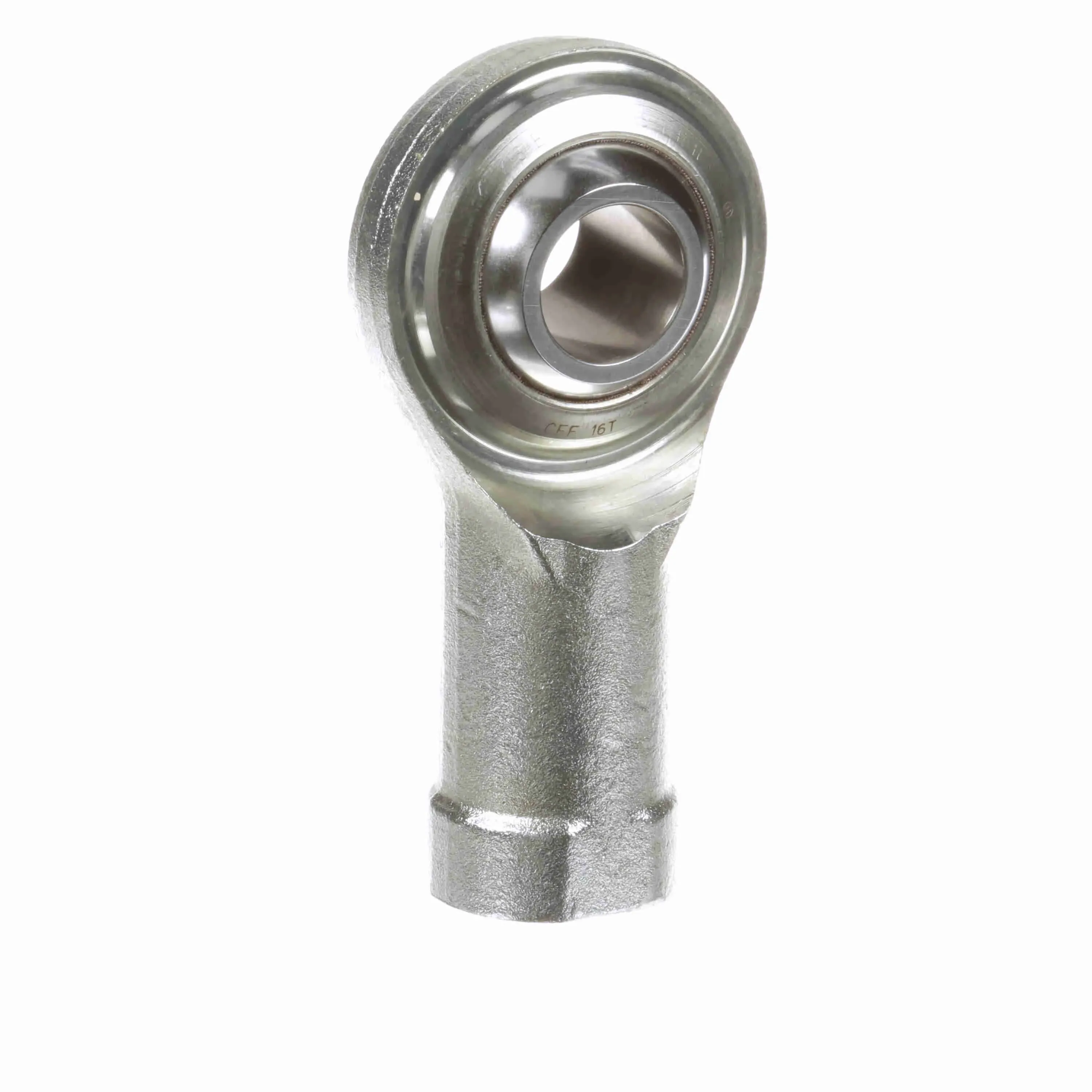

M	CFF 16T	1"	1 7/8"	-	Alloy Steel	Female Rod End	Teflon	€296.64
N	CFF 8TY	1/2"	-	-	Alloy Steel	-	Teflon	€401.33
O	CFFL 8T	1/2"	0.937"	-	Alloy Steel	Female Rod End	Teflon	€64.29
P	CFF 8	1/2"	0.937"	-	Alloy Steel	Female Rod End	-	€23.50

QA1 -

Male Stud Ss/ptfe Race Rod End

A

Style	Model	Shank Thread Direction	Shank Thread Size	Dimension E	Dimension G	Head Width	Dimension J	Head Outside Diameter	Max. Angular Misalignment	Price
A	MGML5TS	Left Hand	M5 X 0.8	16 mm	33 mm	5.75 mm	41 mm	16 mm	22°	€59.20
A	MGML6TS	Left Hand	M6 x 1	19 mm	36 mm	6.25 mm	45.5 mm	19 mm	23°	€64.25
A	MGML8TS	Left Hand	M8 x 1.25	22.25 mm	42 mm	8 mm	53.125 mm	22.25 mm	28°	€77.97
A	MGML10TS	Left Hand	M10 x 1.5	27 mm	48 mm	9.5 mm	61.5 mm	27 mm	26°	€125.11
A	MGML12TS	Left Hand	M12 x 1.75	30 mm	54 mm	10.75 mm	69 mm	30 mm	27°	€182.62
A	MGML16TS	Left Hand	M16 x 2	38 mm	66 mm	12.75 mm	85 mm	38 mm	33°	€272.56
A	MGMR5TS	Right Hand	M5 X 0.8	16 mm	33 mm	5.75 mm	41 mm	16 mm	22°	€59.20
A	MGMR8TS	Right Hand	M8 x 1.25	22.25 mm	42 mm	8 mm	53.125 mm	22.25 mm	28°	€77.97
A	MGMR10TS	Right Hand	M10 x 1.5	27 mm	48 mm	9.5 mm	61.5 mm	27 mm	26°	€108.24
A	MGMR12TS	Right Hand	M12 x 1.75	30 mm	54 mm	10.75 mm	69 mm	30 mm	27°	€182.62
A	MGMR14TS	Right Hand	M14 x 2	34.75 mm	60 mm	12.25 mm	77.375 mm	34.75 mm	30°	€218.55
A	MGMR16TS	Right Hand	M16 x 2	38 mm	66 mm	12.75 mm	85 mm	38 mm	33°	€272.56

IGUS -

Rod Ends

A

Style	Model	Shank Thread Direction	Shank Thread Size	Dimension G	Head Width	Dimension J	Head Outside Diameter	Max. Angular Misalignment	Thread	Price
A	EBLI-03 R	Left Hand	#10-32	1.181"	0.173"	1.555"	11/16"	30°	Left Hand	€14.59
A	EBLI-04 R	Left Hand	1/4"-28	1.181"	0.173"	1.594"	13/16"	25°	Left Hand	€15.67
A	EBLI-06 R	Left Hand	3/8"-24	1.692"	0.275"	2.263"	1 1/8"	22°	Left Hand	€18.94
A	EBLI-08 R	Left Hand	1/2"-20	1.968"	0.315"	2.637"	1 5/16"	18°	Left Hand	€29.66
A	EBLI-10 R	Left Hand	5/8"-18	2.539"	0.413"	3.385"	1 11/16"	16°	Left Hand	€44.24
A	EBLI-12 R	Left Hand	3/4"-16	3.031"	0.511"	4.074"	2 1/16"	14°	Left Hand	€56.40
A	EBRI-03 R	Right Hand	#10-32	1.181"	0.173"	1.555"	11/16"	30°	Right Hand	€16.93
A	EBRI-04 R	Right Hand	1/4"-28	1.181"	0.173"	1.594"	13/16"	25°	Right Hand	€19.33
A	EBRI-10 R	Right Hand	5/8"-18	2.539"	0.413"	3.385"	1 11/16"	16°	Right Hand	€39.77
A	EBRI-12 R	Right Hand	3/4"-16	3.031"	0.511"	4.074"	2 1/16"	14°	Right Hand	€45.28
A	EBRI-06 R	Right Hand	3/8"-24	1.692"	0.275"	2.263"	1 1/8"	22°	Right Hand	€18.94
A	EBRI-08 R	Right Hand	1/2"-20	1.968"	0.315"	2.637"	1 5/16"	18°	Right Hand	€29.66

IGUS -

Rod Ends 7/16-20 inch

A

Style	Model	Shank Thread Direction	Thread	Housing Material	Shank Thread Size	Dimension E	Dimension G	Head Width	Dimension J	Price
A	EBLI-07 R	Left Hand	Left Hand	Polymer	7/16"-20	1.339"	1.968"	0.315"	2.637"	€34.76
A	EBRI-07 R	Right Hand	Right Hand	Polymer	7/16"-20	1.339"	1.968"	0.315"	2.637"	€22.88

QA1 -

N Series Female Rod End

A

Style	Model	Shank Thread Direction	Shank Thread Size	Bore Dia.	Ball Dia.	Dimension E	Dimension G	Head Width	Dimension J	Price
A	NFL5	Left Hand	5/16"-24	5/16"	5/8"	7/8"	1 3/8"	0.344"	1.813"	€12.53
A	NFL6	Left Hand	3/8"-24	3/8"	0.719"	1"	1 5/8"	0.406"	2 1/8"	€13.56
A	NFL3	Left Hand	#10-32	-	-	5/8"	1.062"	1/4"	1 3/8"	€12.31
A	NFL4	Left Hand	1/4"-28	1/4"	1/2"	3/4"	1.312"	0.281"	1.687"	€12.51
A	NFL7	Left Hand	7/16"-20	7/16"	0.812"	1 1/8"	1.812"	0.437"	2 3/8"	€16.64
A	NFL8	Left Hand	1/2"-20	1/2"	0.937"	1.312"	2 1/8"	1/2"	2.781"	€19.74
A	NFL10	Left Hand	5/8"-18	5/8"	1 1/8"	1 1/2"	2 1/2"	0.562"	3 1/4"	€27.39
A	NFL12	Left Hand	3/4"-16	3/4"	1.312"	1 3/4"	2 7/8"	0.687"	3 3/4"	€34.39
A	NFR6	Right Hand	3/8"-24	3/8"	0.719"	1"	1 5/8"	0.406"	2 1/8"	€13.56
A	NFR3	Right Hand	#10-32	3/16"	0.437"	5/8"	1.062"	1/4"	1 3/8"	€11.64
A	NFR4	Right Hand	1/4"-28	1/4"	1/2"	3/4"	1.312"	0.281"	1.687"	€12.51
A	NFR5	Right Hand	5/16"-24	5/16"	5/8"	7/8"	1 3/8"	0.344"	1.813"	€12.53
A	NFR7	Right Hand	7/16"-20	7/16"	0.812"	1 1/8"	1.812"	0.437"	2 3/8"	€16.64
A	NFR8	Right Hand	1/2"-20	1/2"	0.937"	1.312"	2 1/8"	1/2"	2.781"	€19.74
A	NFR10	Right Hand	5/8"-18	5/8"	1 1/8"	1 1/2"	2 1/2"	0.562"	3 1/4"	€27.39
A	NFR12	Right Hand	3/4"-16	3/4"	1.312"	1 3/4"	2 7/8"	0.687"	3 3/4"	€34.39

QA1 -

N Series, Rod End

A

Style	Model	Shank Thread Direction	Shank Thread Size	Bore Dia.	Ball Dia.	Head Width	Head Outside Diameter	Max. Angular Misalignment	Thread	Price
A	NML3S	Left Hand	#10-32	3/16"	0.437"	1/4"	5/8"	13°	Left Hand	€16.39
A	NML4S	Left Hand	1/4"-28	1/4"	1/2"	0.281"	3/4"	16°	Left Hand	€17.48
A	NML5S	Left Hand	5/16"-24	5/16"	5/8"	0.344"	7/8"	14°	Left Hand	€13.67
A	NML6S	Left Hand	-	3/8"	0.719"	0.406"	1"	12°	Left Hand	€20.14
A	NML7S	Left Hand	7/16"-20	7/16"	0.812"	0.437"	1 1/8"	14°	Left Hand	€19.87
A	NML8S	Left Hand	1/2"-20	1/2"	0.937"	1/2"	1 1/4"	12°	Left Hand	€24.92
A	NML10S	Left Hand	5/8"-18	5/8"	1 1/8"	0.562"	1 1/2"	16°	Left Hand	€38.62
A	NML12S	Left Hand	3/4"-16	3/4"	1.312"	0.687"	1 3/4"	14°	Left Hand	€56.06
A	NMR3S	Right Hand	#10-32	3/16"	0.437"	1/4"	5/8"	13°	Right Hand	€16.39
A	NMR4S	Right Hand	1/4"-28	1/4"	1/2"	0.281"	3/4"	16°	Right Hand	€17.48
A	NMR5S	Right Hand	5/16"-24	5/16"	5/8"	0.344"	7/8"	14°	Right Hand	€13.67
A	NMR6S	Right Hand	3/8"-24	3/8"	0.719"	0.406"	1"	12°	Right Hand	€19.66
A	NMR7S	Right Hand	7/16"-20	7/16"	0.812"	0.437"	1 1/8"	14°	Right Hand	€22.63
A	NMR8S	Right Hand	1/2"-20	1/2"	0.937"	1/2"	1 1/4"	12°	Right Hand	€24.92
A	NMR10S	Right Hand	5/8"-18	-	-	0.562"	1 1/2"	16°	Right Hand	€43.86
A	NMR12S	Right Hand	3/4"-16	3/4"	1.312"	0.687"	1 3/4"	14°	Right Hand	€45.71

QA1 -

C Series, Male Rod End

A

Style	Model	Shank Thread Direction	Bore Dia.	Ball Dia.	Shank Thread Size	Dimension E	Head Width	Dimension J	Head Outside Diameter	Price

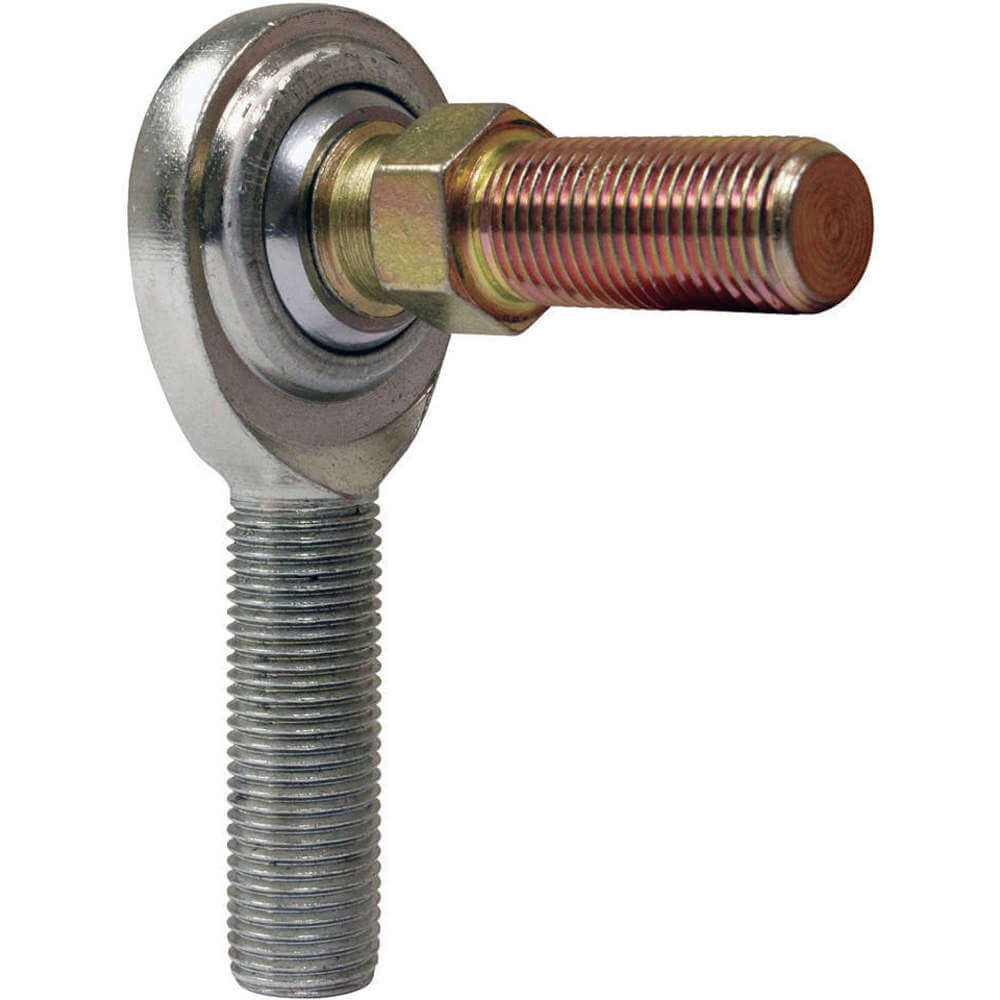

A	CML3S	Left Hand	3/16"	0.437"	#10-32	5/8"	0.234"	1.563"	5/8"	€14.84
A	CML4S	Left Hand	1/4"	1/2"	1/4"-28	3/4"	1/4"	1.937"	3/4"	€12.08
A	CML5S	Left Hand	5/16"	5/8"	5/16"-24	7/8"	0.312"	2.313"	7/8"	€16.30
A	CML6S	Left Hand	3/8"	0.719"	3/8"-24	1"	0.359"	2.438"	1"	€14.82
A	CML7S	Left Hand	7/16"	0.812"	7/16"-20	1 1/8"	0.406"	2.688"	1 1/8"	€20.38
A	CML8S	Left Hand	1/2"	0.937"	1/2"-20	1.312"	0.453"	3.094"	1 1/4"	€24.65
A	CML10S	Left Hand	5/8"	1 1/8"	5/8"-18	1 1/2"	0.484"	3 3/8"	1 1/2"	€38.62
A	CML12S	Left Hand	3/4"	1.312"	3/4"-16	1 3/4"	0.593"	3 3/4"	1 3/4"	€41.11
A	CMR3S	Right Hand	3/16"	0.437"	#10-32	5/8"	0.234"	1.563"	5/8"	€14.84
A	CMR4S	Right Hand	1/4"	1/2"	1/4"-28	3/4"	1/4"	1.937"	3/4"	€12.08
A	CMR5S	Right Hand	5/16"	5/8"	5/16"-24	7/8"	0.312"	2.313"	7/8"	€15.67
A	CMR6S	Right Hand	3/8"	0.719"	3/8"-24	1"	0.359"	2.438"	1"	€14.82
A	CMR7S	Right Hand	7/16"	0.812"	7/16"-20	1 1/8"	0.406"	2.688"	1 1/8"	€20.38
A	CMR8S	Right Hand	1/2"	0.937"	1/2"-20	1.312"	0.453"	3.094"	1 1/4"	€24.65
A	CMR10S	Right Hand	5/8"	1 1/8"	5/8"-18	1 1/2"	0.484"	3 3/8"	1 1/2"	€38.62
A	CMR12S	Right Hand	3/4"	1.312"	-	1 3/4"	0.593"	3 3/4"	1 3/4"	€41.11

QA1 -

G Series, Rod End

A

Style	Model	Shank Thread Direction	Shank Thread Size	Bore Dia.	Ball Dia.	Head Width	Dimension J	Head Outside Diameter	Ball Stud Thread Size	Price
A	GML6TS	Left Hand	3/8"-24	-	-	0.359"	2.438"	1"	3/8"-24	€67.46
A	GML7TS	Left Hand	7/16"-20	7/16"	0.812"	0.406"	2.688"	1 1/8"	7/16"-20	€75.71
A	GML8TS	Left Hand	1/2"-20	1/2"	0.937"	0.453"	3.094"	1 1/4"	1/2"-20	€101.73
A	GML10TS	Left Hand	5/8"-18	5/8"	1 1/8"	0.484"	3 3/8"	1 1/2"	5/8"-18	€122.33
A	GML3TS	Left Hand	#10-32	3/16"	0.437"	0.234"	1.563"	5/8"	#10-32	€40.25
A	GML4TS	Left Hand	1/4"-28	1/4"	1/2"	1/4"	1.937"	3/4"	1/4"-28	€52.56
A	GMR5TS	Right Hand	5/16"-24	5/16"	5/8"	0.312"	2.313"	7/8"	5/16"-24	€50.66
A	GMR6TS	Right Hand	3/8"-24	3/8"	0.719"	0.359"	2.438"	1"	3/8"-24	€67.46
A	GMR7TS	Right Hand	7/16"-20	7/16"	0.812"	0.406"	2.688"	1 1/8"	7/16"-20	€75.71
A	GMR8TS	Right Hand	1/2"-20	1/2"	0.937"	0.453"	3.094"	1 1/4"	1/2"-20	€76.46
A	GMR10TS	Right Hand	5/8"-18	5/8"	1 1/8"	0.484"	3 3/8"	1 1/2"	5/8"-18	€122.33
A	GMR12TS	Right Hand	3/4"-16	3/4"	1.312"	0.593"	3 3/4"	1 3/4"	3/4"-16	€209.87
A	GMR3TS	Right Hand	#10-32	3/16"	0.437"	0.234"	1.563"	5/8"	#10-32	€40.25
A	GMR4TS	Right Hand	1/4"-28	1/4"	1/2"	1/4"	1.937"	3/4"	1/4"-28	€52.56

QA1 -

MC Series, Rod End

A

Style	Model	Shank Thread Direction	Shank Thread Size	Dimension E	Dimension G	Head Width	Dimension J	Head Outside Diameter	Max. Angular Misalignment	Price
A	MCML5S	Left Hand	M5 X 0.8	16 mm	33 mm	5.75 mm	41 mm	16 mm	22°	€20.69
A	MCML8S	Left Hand	M8 x 1.25	22.25 mm	42 mm	8 mm	53.125 mm	22.25 mm	28°	€27.00
A	MCML10S	Left Hand	M10 x 1.5	27 mm	48 mm	9.5 mm	61.5 mm	27 mm	26°	€29.36
A	MCML14S	Left Hand	M14 x 2	34.75 mm	60 mm	12.25 mm	77.375 mm	34.75 mm	30°	€50.66
A	MCML16S	Left Hand	M16 x 2	38 mm	66 mm	12.75 mm	85 mm	38 mm	33°	€58.15
A	MCMR5S	Right Hand	M5 X 0.8	16 mm	33 mm	5.75 mm	41 mm	16 mm	22°	€20.69
A	MCMR6S	Right Hand	M6 x 1	19 mm	36 mm	6.25 mm	45.5 mm	19 mm	23°	€25.64
A	MCMR8S	Right Hand	M8 x 1.25	22.25 mm	42 mm	8 mm	53.125 mm	22.25 mm	28°	€27.00
A	MCMR10S	Right Hand	M10 x 1.5	27 mm	48 mm	9.5 mm	61.5 mm	27 mm	26°	€33.95
A	MCMR12S	Right Hand	M12 x 1.75	30 mm	54 mm	10.75 mm	69 mm	30 mm	27°	€34.24
A	MCMR14S	Right Hand	M14 x 2	34.75 mm	60 mm	12.25 mm	77.375 mm	34.75 mm	30°	€51.79
A	MCMR16S	Right Hand	M16 x 2	38 mm	66 mm	12.75 mm	85 mm	38 mm	33°	€55.71

QA1 -

Male Rod End

A

Style	Model	Shank Thread Direction	Shank Thread Size	Bore Dia.	Ball Dia.	Head Width	Head Outside Diameter	Max. Angular Misalignment	Thread	Price
A	NML6	Left Hand	3/8"-24	3/8"	0.719"	0.406"	1"	12°	Left Hand	€13.66
A	NML7	Left Hand	7/16"-20	7/16"	0.812"	0.437"	1 1/8"	14°	Left Hand	€16.39
A	NML8	Left Hand	1/2"-20	1/2"	0.937"	1/2"	1 1/4"	12°	Left Hand	€15.38
A	NML10	Left Hand	5/8"-18	5/8"	1 1/8"	0.562"	1 1/2"	16°	Left Hand	€20.14
A	NML12	Left Hand	3/4"-16	-	-	0.687"	1 3/4"	14°	Left Hand	€31.97
A	NML3	Left Hand	#10-32	3/16"	0.437"	1/4"	5/8"	13°	Left Hand	€11.30
A	NML4	Left Hand	1/4"-28	1/4"	1/2"	0.281"	3/4"	16°	Left Hand	€9.44
A	NML5	Left Hand	-	5/16"	5/8"	0.344"	7/8"	14°	Left Hand	€9.63
A	NMR6	Right Hand	3/8"-24	3/8"	0.719"	0.406"	1"	12°	Right Hand	€13.66
A	NMR7	Right Hand	7/16"-20	7/16"	0.812"	0.437"	1 1/8"	14°	Right Hand	€16.10
A	NMR8	Right Hand	1/2"-20	1/2"	0.937"	1/2"	1 1/4"	12°	Right Hand	€15.38
A	NMR10	Right Hand	5/8"-18	5/8"	1 1/8"	0.562"	1 1/2"	16°	Right Hand	€20.14
A	NMR12	Right Hand	3/4"-16	3/4"	1.312"	0.687"	1 3/4"	14°	Right Hand	€33.39
A	NMR3	Right Hand	#10-32	3/16"	0.437"	1/4"	5/8"	13°	Right Hand	€11.88
A	NMR4	Right Hand	1/4"-28	1/4"	1/2"	0.281"	3/4"	16°	Right Hand	€9.44
A	NMR5	Right Hand	5/16"-24	5/16"	5/8"	0.344"	7/8"	14°	Right Hand	€9.63

QA1 -

Male Rod End Left-hand

A

Style	Model	Shank Thread Size	Bore Dia.	Ball Dia.	Dimension E	Dimension J	Max. Angular Misalignment	Dimension H	Dimension N	Price
A	CML5	-	5/16"	5/8"	7/8"	2.313"	22°	1 1/4"	0.437"	€11.58
A	MCML10	-	-	-	27 mm	61.5 mm	26°	29 mm	14 mm	€20.10
A	CML3	#10-32	3/16"	0.437"	5/8"	1.563"	20°	3/4"	0.312"	€10.24
A	CML8	1/2"-20	1/2"	0.937"	1.312"	3.094"	20°	1 1/2"	5/8"	€16.94
A	CML4	1/4"-28	1/4"	1/2"	3/4"	1.937"	27°	1"	3/8"	€10.78
A	CML12	3/4"-16	3/4"	1.312"	1 3/4"	3 3/4"	24°	1 3/4"	7/8"	€27.55
A	CML6	3/8"-24	3/8"	0.719"	1"	2.438"	22°	1 1/4"	1/2"	€9.24
A	CML10	5/8"-18	5/8"	1 1/8"	1 1/2"	3 3/8"	26°	1 5/8"	3/4"	€24.62
A	CML7	7/16"-20	7/16"	0.812"	1 1/8"	2.688"	21°	1 3/8"	0.562"	€13.59
A	MCML5	M5 X 0.8	-	-	16 mm	41 mm	22°	20 mm	8 mm	€15.29
A	MCML6	M6 x 1	-	-	19 mm	45.5 mm	23°	22 mm	9 mm	€15.85
A	MCML8	M8 x 1.25	-	-	22.25 mm	53.125 mm	28°	25 mm	12 mm	€17.95
A	MCML12	M12 x 1.75	-	-	30 mm	69 mm	27°	33 mm	16 mm	€23.10
A	MCML14	M14 x 2	-	-	34.75 mm	77.375 mm	30°	36 mm	19 mm	€31.22
A	MCML16	M16 x 2	-	-	38 mm	85 mm	33°	40 mm	21 mm	€41.05

QA1 -

Male Rod End Right-hand

A

Style	Model	Shank Thread Size	Bore Dia.	Ball Dia.	Dimension J	Max. Angular Misalignment	Dimension N	Housing	Dimension Aa	Price
A	MCMR8	-	-	-	53.125 mm	28°	12 mm	Low Carbon	8 mm, 8.065 mm	€17.95
A	CMR3	#10-32	3/16"	0.437"	1.563"	20°	0.312"	Carbon Steel	0.190", 0.192"	€10.24
A	CMR8	1/2"-20	1/2"	0.937"	3.094"	20°	5/8"	Carbon Steel	0.500", 0.502"	€16.94
A	CMR4	1/4"-28	1/4"	1/2"	1.937"	27°	3/8"	Carbon Steel	0.250", 0.252"	€10.78
A	CMR12	3/4"-16	3/4"	1.312"	3 3/4"	24°	7/8"	Carbon Steel	0.750", 0.752"	€27.55
A	CMR6	3/8"-24	3/8"	0.719"	2.438"	22°	1/2"	Carbon Steel	0.375", 0.377"	€9.24
A	CMR10	5/8"-18	5/8"	1 1/8"	3 3/8"	26°	3/4"	Carbon Steel	0.625", 0.627"	€24.62
A	CMR5	5/16"-24	5/16"	5/8"	2.313"	22°	0.437"	Carbon Steel	0.3125", 0.3145"	€11.58
A	CMR7	7/16"-20	7/16"	0.812"	2.688"	21°	0.562"	Carbon Steel	0.4375", 0.4395"	€13.59
A	MCMR5	M5 X 0.8	-	-	41 mm	22°	8 mm	Low Carbon	5 mm, 5.065 mm	€15.29
A	MCMR6	M6 x 1	-	-	45.5 mm	23°	9 mm	Low Carbon	6 mm, 6.065 mm	€15.85
A	MCMR10	M10 x 1.5	-	-	61.5 mm	26°	14 mm	Low Carbon	10 mm, 10.065 mm	€20.88
A	MCMR12	M12 x 1.75	-	-	69 mm	27°	16 mm	Low Carbon	12 mm, 12.065 mm	€23.10
A	MCMR14	M14 x 2	-	-	77.375 mm	30°	19 mm	Low Carbon	14 mm, 14.065 mm	€34.68
A	MCMR16	M16 x 2	-	-	85 mm	33°	21 mm	Low Carbon	16 mm, 16.065 mm	€41.05

IGUS -

Rod Ends 5/16-24 inch

A

Style	Model	Shank Thread Direction	Thread	Housing Material	Shank Thread Size	Dimension E	Head Width	Dimension J	Head Outside Diameter	Price
A	EBLI-05 R	Left Hand	Left Hand	Polymer	5/16"-24	0.945"	0.236"	1.889"	15/16"	€25.44
A	EBRI-05 R	Right Hand	Right Hand	Polymer	5/16"-24	0.945"	0.236"	1.889"	15/16"	€19.27

SEALMASTER -

CFM Series Male Rod Ends

A

B

C

D

E

F

G

H

I

J

K

L

Style	Model	Bore Dia.	Ball Diameter	Bore Diameter	Ball Material	Type	Race Material	Price
A	CFML 6YN	-	-	-	-	-	-	€33.64
B	CFM 3	-	0.437"	3/16"	Alloy Steel	Male Rod End	-	€12.32
A	CFM 4YN	-	-	1/4"	Alloy Steel	-	-	€24.63
A	CFML 4YN	-	-	1/4"	Alloy Steel	-	-	€111.89
C	CFML 4T	-	-	-	-	-	-	€44.63
D	CFM 12YN	-	-	-	-	-	-	€79.02
E	CFM 4T	-	1/2"	1/4"	Alloy Steel	Male Rod End	Teflon	€44.63
A	CFML 8Y	-	-	-	-	-	-	€33.13
A	CFML 4N	-	-	1/4"	Alloy Steel	-	-	€106.50
A	CFML 4Y	-	-	1/4"	Alloy Steel	-	-	€18.17
F	CFM 6Y	-	-	-	-	-	-	€19.17
G	CFML 4	-	1/2"	1/4"	Alloy Steel	Male Rod End	-	€13.96
H	CFML 16T	-	-	-	-	-	-	€292.64
I	CFM 4N	-	1/2"	1/4"	Alloy Steel	Male Rod End	-	€19.92
A	CFM 4Y	-	-	1/4"	Alloy Steel	-	-	€18.53
A	CFML 4TY	-	-	1/4"	Alloy Steel	-	Teflon	€237.98
A	CFM 4TY	-	-	1/4"	Alloy Steel	-	Teflon	€50.91
A	CFM 3Y	0.19"	-	-	Alloy Steel	-	-	€20.41
J	CFML 3	0.19"	-	-	Alloy Steel	-	-	€72.78
A	CFML 3TY	0.19"	-	-	Alloy Steel	-	Teflon	€237.38
A	CFML 3Y	0.19"	-	-	Alloy Steel	-	-	€20.05
K	CFM 3T	0.19"	-	-	Alloy Steel	-	Teflon	€247.97
A	CFM 3TY	0.19"	-	-	-	-	Teflon	€237.38
K	CFML 3T	0.19"	-	-	Alloy Steel	-	Teflon	€247.97
L	CFM 16T	1"	1 7/8"	-	Alloy Steel	Male Rod End	Teflon	€271.93

QA1 -

Male Rod End, Stainless Steel

A

Style	Model	Shank Thread Direction	Shank Thread Size	Bore Dia.	Ball Dia.	Head Width	Dimension J	Head Outside Diameter	Thread	Price
A	GML3T	Left Hand	#10-32	3/16"	0.437"	0.234"	1.563"	5/8"	Left Hand	€28.27
A	GML4T	Left Hand	1/4"-28	1/4"	1/2"	1/4"	1.937"	3/4"	Left Hand	€28.62
A	GML6T	Left Hand	3/8"-24	3/8"	0.719"	0.359"	2.438"	1"	Left Hand	€46.72
A	GML7T	Left Hand	7/16"-20	7/16"	0.812"	0.406"	2.688"	1 1/8"	Left Hand	€57.12
A	GML8T	Left Hand	1/2"-20	1/2"	0.937"	0.453"	3.094"	1 1/4"	Left Hand	€52.70
A	GML10T	Left Hand	5/8"-18	5/8"	1 1/8"	0.484"	3 3/8"	1 1/2"	Left Hand	€94.94
A	GML12T	Left Hand	3/4"-16	3/4"	1.312"	0.593"	3 3/4"	1 3/4"	Left Hand	€122.59
A	GMR3T	Right Hand	#10-32	3/16"	0.437"	0.234"	1.563"	5/8"	Right Hand	€28.27
A	GMR4T	Right Hand	1/4"-28	1/4"	1/2"	1/4"	1.937"	3/4"	Right Hand	€28.62
A	GMR5T	Right Hand	5/16"-24	5/16"	5/8"	0.312"	2.313"	7/8"	Right Hand	€43.52
A	GMR6T	Right Hand	3/8"-24	3/8"	0.719"	0.359"	2.438"	1"	Right Hand	€46.72
A	GMR7T	Right Hand	7/16"-20	7/16"	0.812"	0.406"	2.688"	1 1/8"	Right Hand	€57.12
A	GMR8T	Right Hand	1/2"-20	1/2"	0.937"	0.453"	3.094"	1 1/4"	Right Hand	€52.70
A	GMR10T	Right Hand	5/8"-18	5/8"	1 1/8"	0.484"	3 3/8"	1 1/2"	Right Hand	€111.40
A	GMR12T	Right Hand	3/4"-16	3/4"	1.312"	0.593"	3 3/4"	1 3/4"	Right Hand	€122.59

SEALMASTER -

CTFD Series Female Rod Ends

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Style	Model	Bore Dia.	Ball Diameter	Ball Material	Race Material	Type	Bore Diameter	Price
A	CTFDL 4Y	-	-	Alloy Steel	Delrin	-	1/4"	€20.61
B	CTFD 8Y	-	-	-	-	-	-	€34.19
C	CTFD 4Y	-	1/2"	Alloy Steel	Delrin	Female Rod End	1/4"	€19.07
D	CTFD 4	-	1/2"	Alloy Steel	Delrin	Female Rod End	1/4"	€14.43
E	CTFDL 4	-	1/2"	Alloy Steel	Delrin	Female Rod End	1/4"	€14.99
F	CTFDL 3Y	0.19"	-	Alloy Steel	Delrin	-	-	€108.19
G	CTFDL 3	0.19"	-	Alloy Steel	Delrin	-	-	€70.64
A	CTFD 3Y	0.19"	-	Alloy Steel	Delrin	-	-	€23.84
A	CTFDL 8Y	1/2"	-	Alloy Steel	Delrin	-	-	€35.03
H	CTFD 8	1/2"	0.937"	Alloy Steel	Delrin	Female Rod End	-	€24.63
I	CTFDL 8	1/2"	0.937"	Alloy Steel	Delrin	Female Rod End	-	€29.50
J	CTFDL 12	3/4"	1.312"	Alloy Steel	Delrin	Female Rod End	-	€54.03
F	CTFD 12Y	3/4"	-	Alloy Steel	Delrin	-	-	€405.13
K	CTFD 12	3/4"	1.312"	Alloy Steel	Delrin	Female Rod End	-	€48.53
L	CTFD 6	3/8"	0.718"	Alloy Steel	Delrin	Female Rod End	-	€14.91
C	CTFD 6Y	3/8"	0.718"	Alloy Steel	Delrin	Female Rod End	-	€21.80
M	CTFDL 6	3/8"	0.718"	Alloy Steel	Delrin	Female Rod End	-	€17.82
A	CTFDL 6Y	3/8"	-	Alloy Steel	Delrin	-	-	€24.03
N	CTFD 10	5/8"	1 1/8"	Alloy Steel	Delrin	Female Rod End	-	€36.95
G	CTFDL 10	5/8"	-	Alloy Steel	Delrin	-	-	€199.78
C	CTFD 5Y	5/16"	5/8"	Alloy Steel	Delrin	Female Rod End	-	€18.89
O	CTFD 5	5/16"	5/8"	Alloy Steel	Delrin	Female Rod End	-	€15.15
A	CTFDL 5Y	5/16"	-	Alloy Steel	Delrin	-	-	€20.41
P	CTFD 7Y	7/16"	0.812"	Alloy Steel	Delrin	Female Rod End	-	€28.97
G	CTFDL 7	7/16"	-	Alloy Steel	Delrin	-	-	€98.09

SEALMASTER -

CTMD Series Male Rod Ends

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

Style	Model	Bore Dia.	Ball Diameter	Bore Diameter	Ball Material	Race Material	Type	Price
A	CTMD 3	-	0.437"	3/16"	Alloy Steel	Delrin	Male Rod End	€15.15
B	CTMDL 4	-	1/2"	1/4"	Alloy Steel	Delrin	Male Rod End	€16.85
C	CTMD 5Y	-	-	-	-	-	-	€21.56
C	CTMDL 4Y	-	-	1/4"	Alloy Steel	Delrin	-	€21.56
C	CTMD 4Y	-	-	1/4"	Alloy Steel	Delrin	-	€21.17
D	CTMD 4	-	1/2"	1/4"	Alloy Steel	Delrin	Male Rod End	€15.15
E	CTMDL 3Y	0.19"	-	-	Alloy Steel	Delrin	-	€104.07
C	CTMD 3Y	0.19"	-	-	Alloy Steel	Delrin	-	€23.36
F	CTMDL 3	0.19"	-	-	Alloy Steel	Delrin	-	€81.77
C	CTMD 8Y	1/2"	-	-	Alloy Steel	Delrin	-	€39.38
G	CTMD 8	1/2"	0.937"	-	Alloy Steel	Delrin	Male Rod End	€26.29
H	CTMDL 8	1/2"	0.937"	-	Alloy Steel	Delrin	Male Rod End	€31.46
C	CTMDL 8Y	1/2"	-	-	Alloy Steel	Delrin	-	€36.58
I	CTMDL 12Y	3/4"	-	-	Alloy Steel	Delrin	-	€362.36
E	CTMD 12Y	3/4"	-	-	Alloy Steel	Delrin	-	€373.23
F	CTMDL 12	3/4"	-	-	Alloy Steel	Delrin	-	€293.88
J	CTMDL 6	3/8"	0.718"	-	Alloy Steel	Delrin	Male Rod End	€19.34
K	CTMD 6	3/8"	0.718"	-	Alloy Steel	Delrin	Male Rod End	€17.36
L	CTMD 6Y	3/8"	0.718"	-	Alloy Steel	Delrin	Male Rod End	€23.28
M	CTMDL 10	5/8"	1 1/8"	-	Alloy Steel	Delrin	Male Rod End	€43.10
C	CTMDL 5Y	5/16"	-	-	Alloy Steel	Delrin	-	€22.10
N	CTMDL 5	5/16"	5/8"	-	Alloy Steel	Delrin	Male Rod End	€16.85
E	CTMDL 7Y	7/16"	-	-	Alloy Steel	Delrin	-	€140.18
E	CTMD 7Y	7/16"	-	-	Alloy Steel	Delrin	-	€140.18
O	CTMD 7	7/16"	0.812"	-	Alloy Steel	Delrin	Male Rod End	€20.43

SEALMASTER -

AR Series Rod Ends

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

Style	Model	Bore Dia.	Ball Diameter	Bore Diameter	Ball Material	Race Material	Type	Grade	Price
A	AR 4N	-	1/2"	1/4"	Alloy Steel	Carbon Steel	Female Rod End	-	€48.02
B	ARL 4	-	-	1/4"	Alloy Steel	Carbon Steel	-	Grade4130	€250.94
C	AR 3	-	0.437"	3/16"	Alloy Steel	Carbon Steel	Female Rod End	-	€45.08
D	ARL 4N	-	1/2"	1/4"	Alloy Steel	Carbon Steel	Female Rod End	-	€48.02
E	ARL 3	0.19"	-	-	Alloy Steel	Carbon Steel	-	Grade4130	€46.85
F	AR 8	1/2"	0.937"	-	Alloy Steel	Carbon Steel	Female Rod End	-	€74.76
G	ARL 8	1/2"	0.937"	-	Alloy Steel	Carbon Steel	Female Rod End	-	€74.76
H	ARL 8N	1/2"	0.937"	-	Alloy Steel	Carbon Steel	Female Rod End	-	€78.25
I	AR 12N	3/4"	1.312"	-	Alloy Steel	Carbon Steel	Female Rod End	-	€137.67
J	AR 12	3/4"	1.312"	-	Alloy Steel	Carbon Steel	Female Rod End	-	€134.07
K	ARL 12N	3/4"	1.312"	-	Alloy Steel	Carbon Steel	Female Rod End	-	€137.67
L	ARL 12	3/4"	1.312"	-	Alloy Steel	Carbon Steel	Female Rod End	-	€134.07
M	AR 6N	3/8"	0.718"	-	Alloy Steel	Carbon Steel	Female Rod End	-	€53.99
N	AR 6	3/8"	0.718"	-	Alloy Steel	Carbon Steel	Female Rod End	-	€51.10
O	ARL 6	3/8"	0.718"	-	Alloy Steel	Carbon Steel	Female Rod End	-	€51.10
P	AR 10N	5/8"	1 1/8"	-	Alloy Steel	Carbon Steel	Female Rod End	-	€111.69
Q	ARL 10N	5/8"	1 1/8"	-	Alloy Steel	Carbon Steel	Female Rod End	-	€111.69
R	AR 10	5/8"	1 1/8"	-	Alloy Steel	Carbon Steel	Female Rod End	-	€107.28
B	ARL 5	5/16"	-	-	Alloy Steel	Carbon Steel	-	Grade4130	€263.34
S	AR 5N	5/16"	5/8"	-	Alloy Steel	Carbon Steel	Female Rod End	-	€46.07
B	ARL 7	7/16"	-	-	Alloy Steel	Carbon Steel	-	Grade4130	€314.69
T	AR 7N	7/16"	0.812"	-	Alloy Steel	Carbon Steel	Female Rod End	-	€65.42
U	ARL 7N	7/16"	-	-	Alloy Steel	Carbon Steel	-	Grade4130	€349.54

SEALMASTER -

ARE Series Male Rod Ends

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

Style	Model	Bore Dia.	Ball Diameter	Bore Diameter	Ball Material	Race Material	Type	Grade	Price
A	AREL 4 20	-	-	1/4"	Alloy Steel	Carbon Steel	-	Grade4130	€243.99
B	AREL 4N	-	1/2"	1/4"	Alloy Steel	Carbon Steel	Male Rod End	-	€51.50
C	AREL 4	-	1/2"	1/4"	Alloy Steel	Carbon Steel	Male Rod End	-	€46.39
D	ARE 4	-	1/2"	1/4"	Alloy Steel	Carbon Steel	Male Rod End	-	€46.39
E	ARE 3	-	0.437"	3/16"	Alloy Steel	Carbon Steel	Male Rod End	-	€45.52
F	AREL 4 20N	-	1/2"	1/4"	Alloy Steel	Carbon Steel	Male Rod End	-	€47.92
G	ARE 4 20N	-	1/2"	1/4"	Alloy Steel	Carbon Steel	Male Rod End	-	€47.92
H	AREL 3	0.19"	-	-	Alloy Steel	Carbon Steel	-	Grade4130	€47.27
A	AREL 3 20	0.19"	-	-	Alloy Steel	Carbon Steel	-	Grade4130	€244.28
I	AREL 8	1/2"	0.937"	-	Alloy Steel	Carbon Steel	Male Rod End	-	€78.71
J	ARE 8 20	1/2"	0.937"	-	Alloy Steel	Carbon Steel	Male Rod End	-	€78.94
K	ARE 8	1/2"	0.937"	-	Alloy Steel	Carbon Steel	Male Rod End	-	€78.71
L	AREL 8 20N	1/2"	0.937"	-	Alloy Steel	Carbon Steel	Male Rod End	-	€81.12
M	AREL 8N	1/2"	0.937"	-	Alloy Steel	Carbon Steel	Male Rod End	-	€85.69
N	ARE 12N	3/4"	1.312"	-	Alloy Steel	Carbon Steel	Male Rod End	-	€150.00
O	ARE 12 20	3/4"	1.312"	-	Alloy Steel	Carbon Steel	Male Rod End	-	€145.07
P	ARE 12	3/4"	1.312"	-	Alloy Steel	Carbon Steel	Male Rod End	-	€144.94
A	AREL 12 20	3/4"	-	-	Alloy Steel	Carbon Steel	-	Grade4130	€452.16
Q	AREL 12	3/4"	1.312"	-	Alloy Steel	Carbon Steel	Male Rod End	-	€144.94
R	ARE 12 20N	3/4"	1.312"	-	Alloy Steel	Carbon Steel	Male Rod End	-	€145.23
S	AREL 6N	3/8"	0.718"	-	Alloy Steel	Carbon Steel	Male Rod End	-	€58.15
T	ARE 6	3/8"	0.718"	-	Alloy Steel	Carbon Steel	Male Rod End	-	€53.72
U	AREL 6 20N	3/8"	0.718"	-	Alloy Steel	Carbon Steel	Male Rod End	-	€54.31
V	ARE 6N	3/8"	0.718"	-	Alloy Steel	Carbon Steel	Male Rod End	-	€58.15
W	ARE 6 20N	3/8"	0.718"	-	Alloy Steel	Carbon Steel	Male Rod End	-	€53.90

SEALMASTER -

TF/TF-N Series Female Rod Ends

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

Style	Model	Bore Dia.	Ball Diameter	Bore Diameter	Ball Material	Race Material	Type	Price
A	TF 3	-	0.437"	3/16"	Alloy Steel	Bronze	Female Rod End	€16.65
B	TFL 4Y	-	-	-	-	-	-	€21.21
C	TF 4	-	1/2"	1/4"	Alloy Steel	Bronze	Female Rod End	€15.72
D	TFL 6Y	-	-	-	-	-	-	€24.24
E	TFL 4N	-	-	1/4"	Alloy Steel	Bronze	-	€132.33
B	TFL 4YN	-	-	1/4"	Alloy Steel	Bronze	-	€30.05
B	TF 4YN	-	-	1/4"	Alloy Steel	Bronze	-	€30.05
F	TF 8Y	-	-	-	-	-	-	€38.37
G	TF 8YN	-	-	-	-	-	-	€44.91
H	TF 4N	-	-	-	-	-	-	€24.73
B	TFL 3Y	0.19"	-	-	Alloy Steel	Bronze	-	€26.78
I	TFL 8	1/2"	0.937"	-	Alloy Steel	Bronze	Female Rod End	€31.42
J	TFL 8N	1/2"	0.937"	-	Alloy Steel	Bronze	Female Rod End	€39.62
K	TFL 8YN	1/2"	0.937"	-	Alloy Steel	Bronze	Female Rod End	€44.91
L	TF 8	1/2"	0.937"	-	Alloy Steel	Bronze	Female Rod End	€28.77
M	TF 8N	1/2"	0.937"	-	Alloy Steel	Bronze	Female Rod End	€34.73
K	TFL 12N	3/4"	1.312"	-	Alloy Steel	Bronze	Female Rod End	€65.62
B	TF 12Y	3/4"	-	-	Alloy Steel	Bronze	-	€86.90
N	TF 12	3/4"	1.312"	-	Alloy Steel	Bronze	Female Rod End	€51.58
B	TFL 12Y	3/4"	-	-	Alloy Steel	Bronze	-	€86.90
O	TFL 12YN	3/4"	-	-	Alloy Steel	Bronze	-	€484.82
B	TFL 6YN	3/8"	-	-	Alloy Steel	Bronze	-	€33.59
P	TF 6N	3/8"	0.718"	-	Alloy Steel	Bronze	Female Rod End	€23.23
Q	TF 6YN	3/8"	0.718"	-	Alloy Steel	Bronze	Female Rod End	€29.76
R	TFL 6N	3/8"	0.718"	-	Alloy Steel	Bronze	Female Rod End	€26.49

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Spherical Rod Ends

CF Series Female Rod End

CFF Series Female Rod Ends

Male Stud Ss/ptfe Race Rod End

Rod Ends

Rod Ends 7/16-20 inch

N Series Female Rod End

N Series, Rod End

C Series, Male Rod End

G Series, Rod End

MC Series, Rod End

Male Rod End

Male Rod End Left-hand

Male Rod End Right-hand

Rod Ends 5/16-24 inch

CFM Series Male Rod Ends

Male Rod End, Stainless Steel

CTFD Series Female Rod Ends

CTMD Series Male Rod Ends

AR Series Rod Ends

ARE Series Male Rod Ends

TF/TF-N Series Female Rod Ends

Popular Search Queries

Explore More

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Spherical Rod Ends

Popular Search Queries

Explore More
