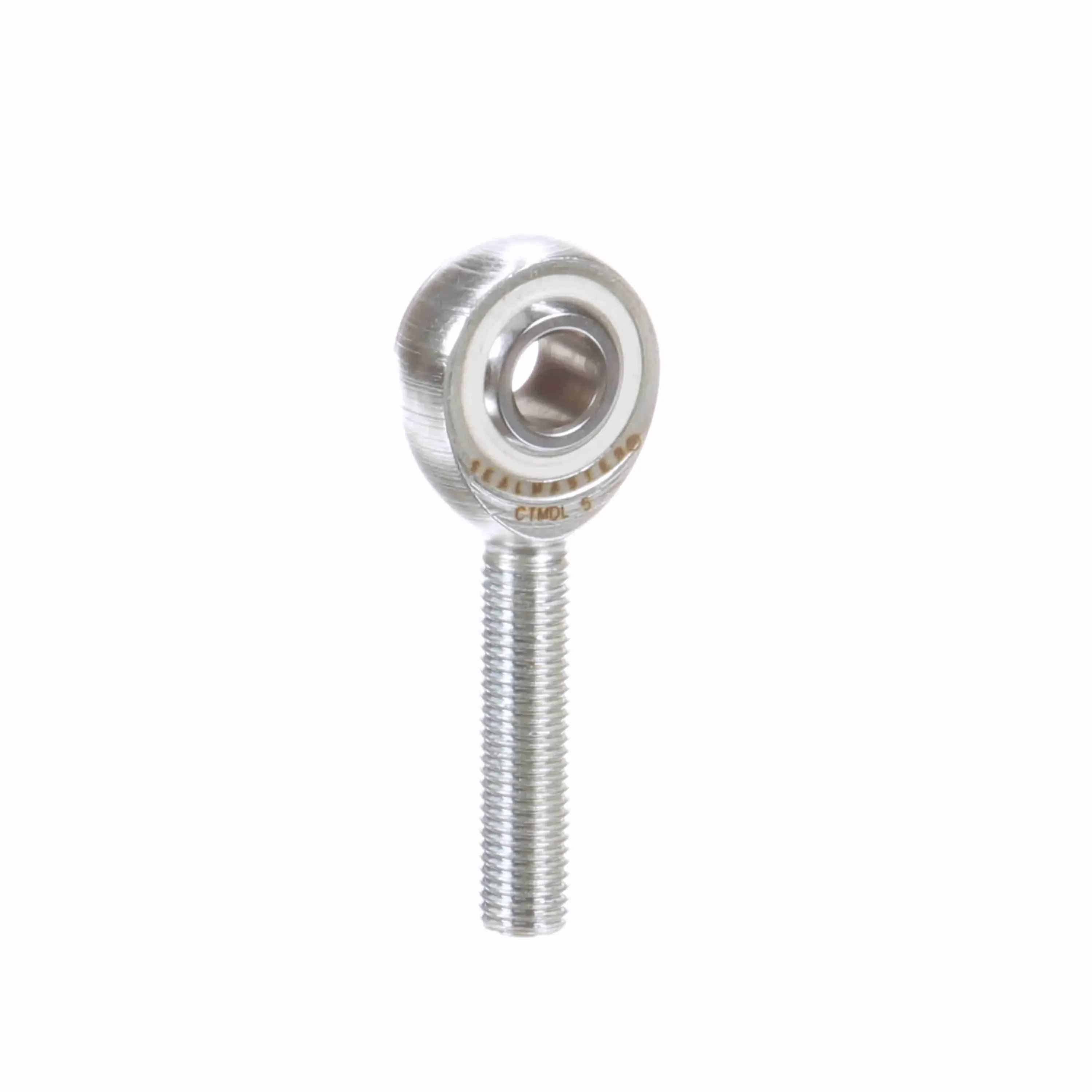

SEALMASTER CTMDL 5 1560500000 Male Threaded Left Hand Rod End, Bore Diameter 0.3125 Inch
Get it by Wednesday, Aug 26
€16.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Self |
| Axial Load | 157 |
| Ball Dia. | 5/8" |
| Ball Finish | Chrome Plated |
| Ball Flat Dia. | 0.447" |
| Ball Material | Alloy, Steel |
| Ball Width | 0.437" |
| Bearing Insert Type | Rod End |
| Bore Dia. | 5/16" |
| Class | Commercial |
| Configuration | Male |
| Construction | Three Piece Rod End |
| Head Dia. | 7/8" |
| Housing Style | Male Rod End |
| Housing Width | 0.344" |
| Htc | 8483.30.8055 |
| Length To Center Of Ball | 1 22/25" |
| Liner | Delrin Liner |
| Lubrication | No Zerk Fitting |
| Lubrication Method | Self Lubricating |
| Lubrication Type | Self Lubricating |
| Max. Ambient Temp. | 150°F |
| Max. Static Radial Load | 1570 |
| Misalignment Angle | -7° to +7° |
| Outer Material | Carbon Steel |
| Outer Material Property | Corrosion Resistant Plating |
| Product Selection Available Sw | Yes |
| Product Type | Ctmd |
| Race Material | Delrin |
| Series | Commercial Series |
| Thread Direction | Left Hand |
| Thread Length | 1.219" |
| Thread Size | 5/16"-24 |
| Thread Type | UNF |
| Type | Male Rod End |
| Zerk Fitting Sw | No |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.24 |
| Ship length (cm) | 5.87 |
| Ship width (cm) | 1.12 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Ball Dia. | Shank Thread Size | Race Material | Ball Material | Type | Head Width | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CTMD 3 | 3/16" | 0.437" | - | Delrin | Alloy, Steel | Male Rod End | - | - | €15.15 | |
 |
CTMDL 6 | 3/8" | 0.718" | - | Delrin | Alloy, Steel | Male Rod End | - | - | €19.34 | |
 |
CTMD 6Y | 3/8" | 0.718" | - | Delrin | Alloy, Steel | Male Rod End | - | - | €23.28 | |
 |
CTMDL 12Y | 3/4" | - | - | Delrin | Alloy, Steel | - | - | - | €362.36 | |
 |
CTMDL 3Y | 0.19" | - | - | Delrin | Alloy, Steel | - | - | - | €104.07 | |
 |
CTMDL 8Y | 1/2" | - | - | Delrin | Alloy, Steel | - | - | - | €36.58 | |
|
CTMDL 5Y | 5/16" | - | - | Delrin | Alloy, Steel | - | - | - | €22.10 |
