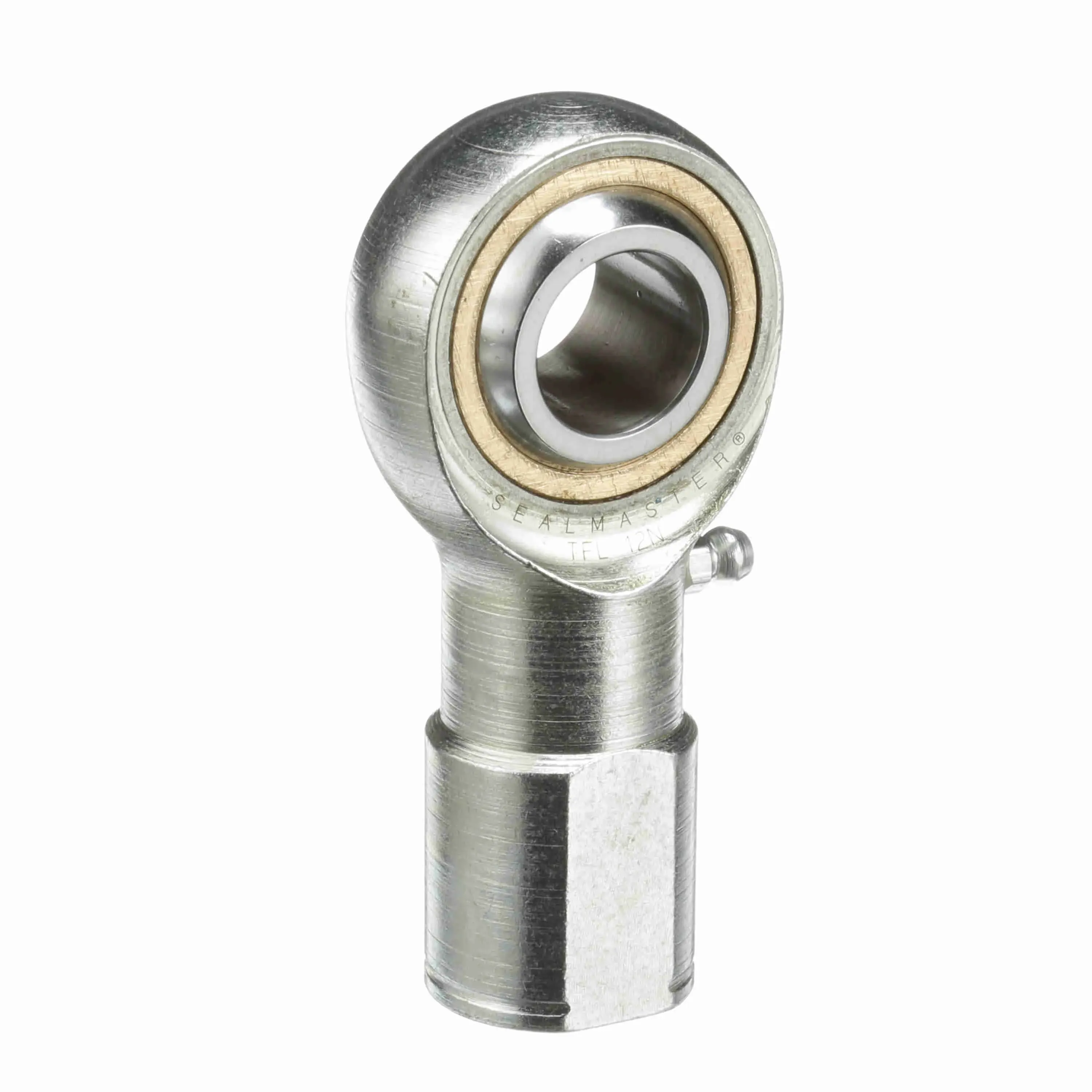

SEALMASTER TFL 8YN 1530809000 Rod End Bearing, 1/2 Inch Bore, 1/2 Inch Housing Width, Female, 1/2-20 UNF, Left Hand
Get it by Tuesday, Aug 25
€44.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rod End Bearing |
| Ability To Relubricate | Yes |
| Across Wrench Flats | 3/4" |
| Axial Load | 740 |
| Ball Dia. | 0.937" |
| Ball Finish | Chrome Plated |
| Ball Flat Dia. | 0.698" |
| Ball Material | Alloy, Steel |
| Ball Width | 5/8" |
| Base Dia. | 7/8" |
| Bearing Insert Type | Rod End |
| Bore Dia. | 1/2" |
| Class | Commercial |
| Configuration | Female |
| Construction | Three Piece Rod End With Y Stud And Zerk Fitting |
| Head Dia. | 1.312" |
| Housing Style | Female Rod End |
| Housing Width | 1/2" |
| Htc | 8483.30.8055 |
| Length To Center Of Ball | 2.13" |
| Lubrication | Zerk Fitting |
| Lubrication Method | Fitting |
| Lubrication Type | Grease |
| Max. Ambient Temp. | 350°F |
| Max. Static Radial Load | 7400 |
| Misalignment Angle B3 | 24.3° |
| Outer Material | Carbon Steel |
| Outer Material Property | Corrosion Resistant Plating |
| Product Selection Available Sw | No |
| Product Type | TF |
| Race Material | Bronze |
| Series | Commercial Series |
| Stud Length To Center Of Ball | 2" |
| Stud Length To Hex | 1.13" |
| Stud Thread Length | 1" |
| Thread Direction | Left Hand |
| Thread Length | 1.156" |
| Thread Size | 1/2"-20 |
| Thread Type | UNF |
| Type | Female Rod End |
| Y Stud Material | Carbon Steel |
| Y Stud Material Property | Corrosion Resistant Plating |
| Zerk Fitting Sw | Yes |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 5.87 |
| Ship length (cm) | 7.06 |
| Ship width (cm) | 3.33 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Ball Dia. | Shank Thread Size | Static Radial Load Capacity | Head Width | Race Material | Type | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TFL 6YN | 3/8" | - | - | - | - | Bronze | - | - | €33.59 | |
|
TFL 5Y | 5/16" | - | - | - | - | Bronze | - | - | €24.04 | |
 |
TF 10 | 5/8" | 1 1/8" | - | - | - | Bronze | Female Rod End | - | €40.06 | |
|
TFL 5YN | 5/16" | - | - | - | - | Bronze | - | - | €31.16 | |
 |
TF 8 | 1/2" | 0.937" | - | - | - | Bronze | Female Rod End | - | €28.77 | |
 |
TF 5 | 5/16" | 5/8" | - | - | - | Bronze | Female Rod End | - | €16.16 | |
|
TFL 12Y | 3/4" | - | - | - | - | Bronze | - | - | €86.90 |
