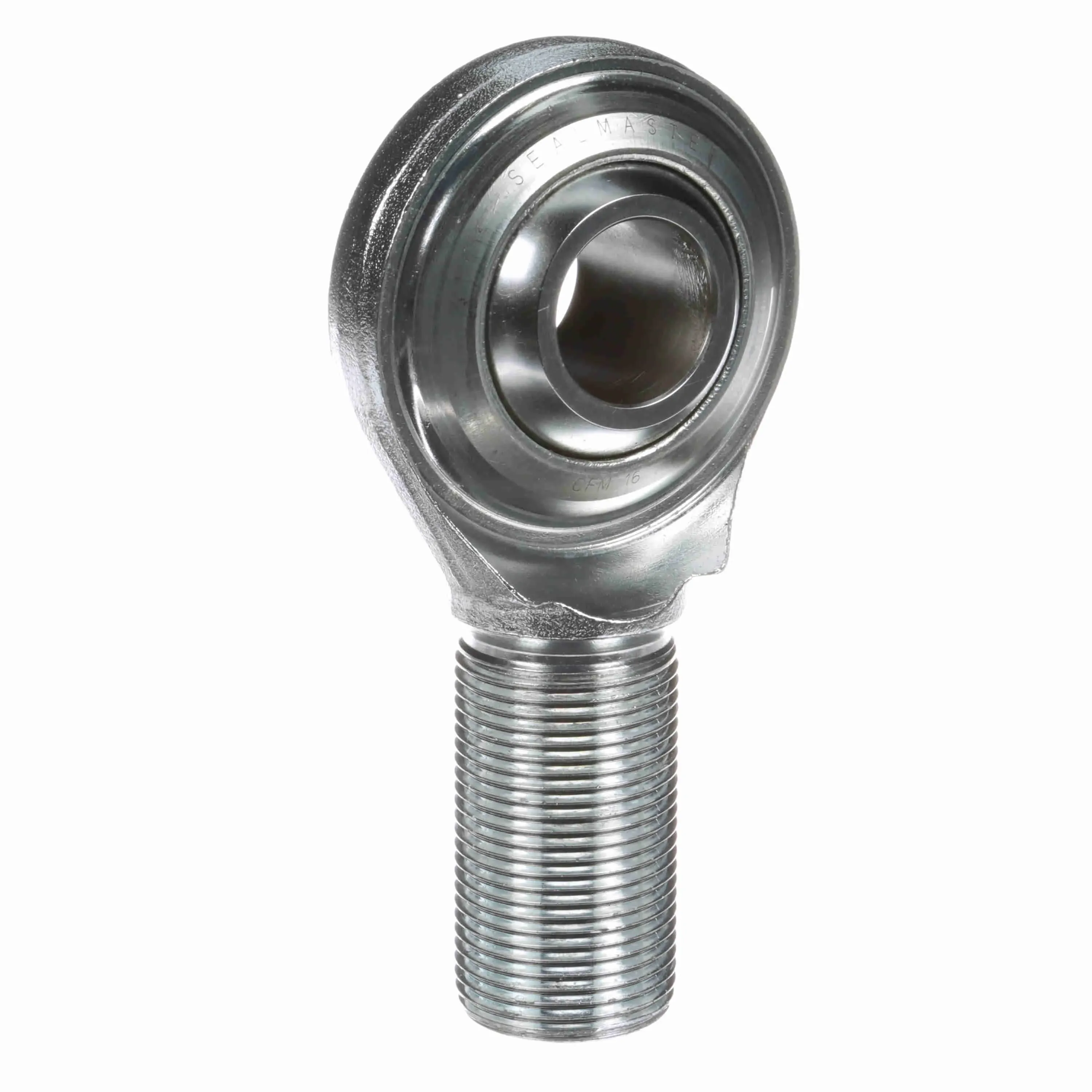

SEALMASTER CFM 16 1481600000 Rod End
Get it by Tuesday, Feb 24
€189.15 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | No |
| Axial Load | 2100 |
| Ball Diameter | 1 7/8" |
| Ball Finish | Chrome Plated |
| Ball Flat Diameter | 1.269" |
| Ball Material | Alloy Steel |
| Ball Width | 1 3/8" |
| Bearing Insert Type | Rod End |
| Bore Dia. | 1" |
| Class | Commercial |
| Configuration | Male |
| Construction | Two Piece Rod End |
| Head Diameter | 2 3/4" |
| Housing Style | Male Rod End |
| Housing Width | 1" |
| Htc | 8483.30.8055 |
| Length To Center Of Ball | 4.13" |
| Lubrication | No Zerk Fitting |
| Lubrication Method | No Fitting |
| Lubrication Type | Grease |
| Max Static Radial Load | 21000 |
| Max. Ambient Temp. | 350°F |
| Misalignment Angle | -8.5° to +8.5° |
| Outer Material | Carbon Steel |
| Outer Material Property | Corrosion Resistant Plating |
| Product Selection Available Sw | Yes |
| Product Type | Cfm |
| Series | Commercial Series |
| Thread Direction | RH |
| Thread Length | 2.094" |
| Thread Size | 1 1/4"-12 |
| Thread Type | UNF |
| Type | Male Rod End |
| Zerk Fitting Sw | No |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 3.51 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Ball Diameter | Bore Diameter | Ball Material | Type | Race Material | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
CFM 10 | 5/8" | 1 1/8" | - | Alloy Steel | Male Rod End | - | €35.44 | |
 |
CFM 10N | 5/8" | 1 1/8" | - | Alloy Steel | Male Rod End | - | €40.85 | |
 |
CFM 10T | 5/8" | 1 1/8" | - | Alloy Steel | Male Rod End | Teflon | €74.29 | |
 |
CFM 10TY | 5/8" | - | - | Alloy Steel | - | Teflon | €99.79 | |
 |
CFM 10Y | 5/8" | - | - | Alloy Steel | - | - | €290.79 | |
|
CFM 10YN | 5/8" | - | - | Alloy Steel | - | - | €63.09 | |
 |
CFM 12 | 3/4" | 1.312" | - | Alloy Steel | Male Rod End | - | €44.95 |
