SEALMASTER CTMD 6Y 1460608000 Rod End Bearing, 3/8 Inch Bore, 13/32 Inch Housing Width, Male, 3/8-24 UNF, Right Hand
Get it by Thursday, Aug 27
€23.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rod End Bearing |
| Ability To Relubricate | Self |
| Axial Load | 215 |
| Ball Dia. | 0.718" |
| Ball Finish | Chrome Plated |
| Ball Flat Dia. | 0.517" |
| Ball Material | Alloy, Steel |
| Ball Width | 1/2" |
| Bearing Insert Type | Rod End |
| Bore Dia. | 3/8" |
| Class | Commercial |
| Configuration | Male |
| Construction | Three Piece Rod End With Y Stud |
| Head Dia. | 1" |
| Housing Style | Male Rod End |
| Housing Width | 0.406" |
| Htc | 8483.30.8055 |
| Length To Center Of Ball | 1.94" |
| Liner | Delrin Liner |
| Lubrication | No Zerk Fitting |
| Lubrication Method | Self Lubricating |
| Lubrication Type | Self Lubricating |
| Max. Ambient Temp. | 150°F |
| Max. Static Radial Load | 2150 |
| Misalignment Angle B3 | 22.6° |
| Outer Material | Carbon Steel |
| Outer Material Property | Corrosion Resistant Plating |
| Product Selection Available Sw | No |
| Product Type | Ctmd |
| Race Material | Delrin |
| Series | Commercial Series |
| Stud Length To Center Of Ball | 1.54" |
| Stud Length To Hex | 0.91" |
| Stud Thread Length | 13/16" |
| Thread Direction | RH |
| Thread Length | 1.219" |
| Thread Size | 3/8"-24 |
| Thread Type | UNF |
| Type | Male Rod End |
| Y Stud Material | Carbon Steel |
| Y Stud Material Property | Corrosion Resistant Plating |
| Zerk Fitting Sw | No |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 6.2 |
| Ship width (cm) | 4.55 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Ball Dia. | Shank Thread Size | Race Material | Ball Material | Type | Head Width | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CTMD 3 | 3/16" | 0.437" | - | Delrin | Alloy, Steel | Male Rod End | - | - | €15.15 | |
 |
CTMDL 6 | 3/8" | 0.718" | - | Delrin | Alloy, Steel | Male Rod End | - | - | €19.34 | |
 |
CTMDL 12Y | 3/4" | - | - | Delrin | Alloy, Steel | - | - | - | €362.36 | |
 |
CTMDL 3Y | 0.19" | - | - | Delrin | Alloy, Steel | - | - | - | €104.07 | |
 |
CTMDL 8Y | 1/2" | - | - | Delrin | Alloy, Steel | - | - | - | €36.58 | |
|
CTMDL 5Y | 5/16" | - | - | Delrin | Alloy, Steel | - | - | - | €22.10 | |
 |

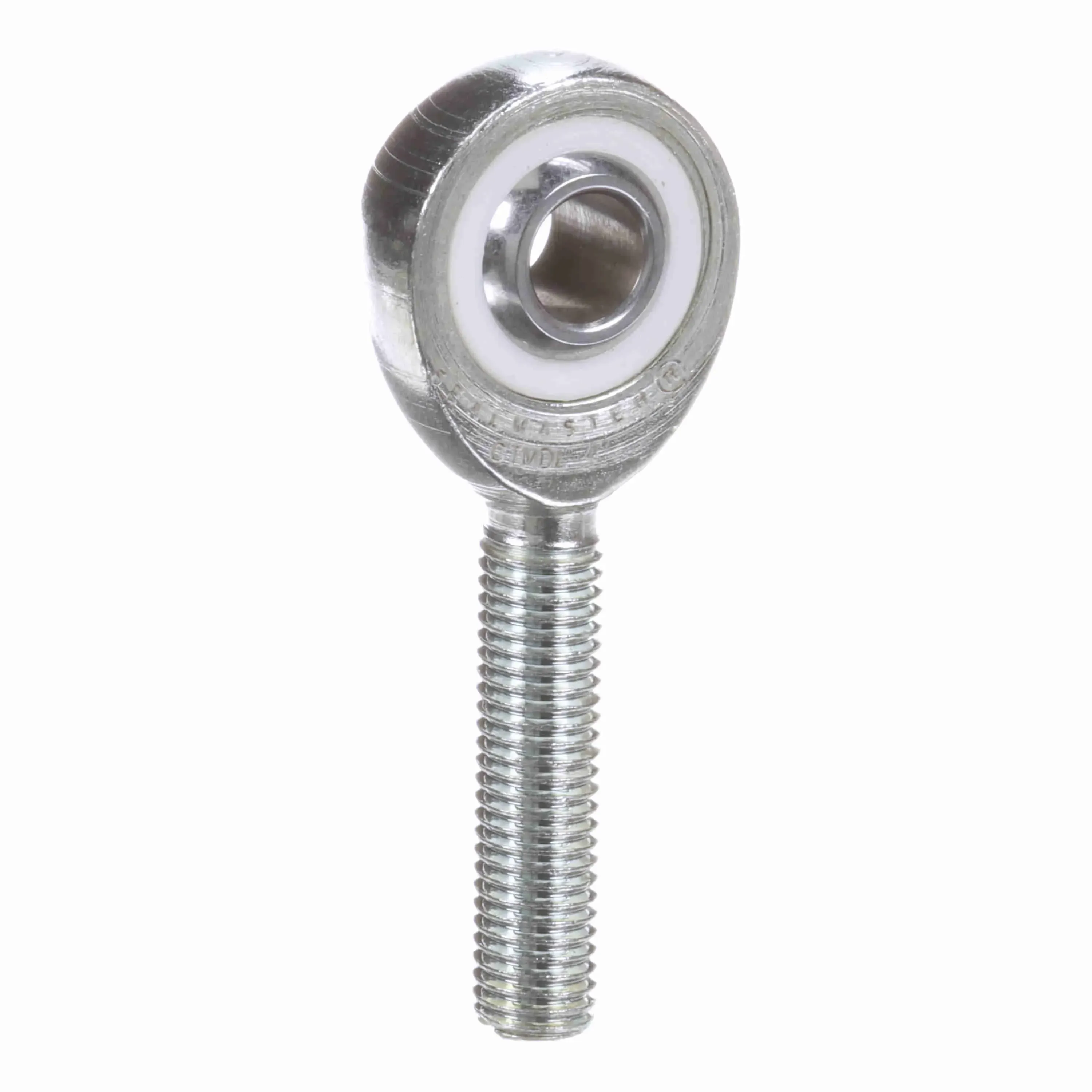

CTMDL 4 | 1/4" | 1/2" | - | Delrin | Alloy, Steel | Male Rod End | - | - | €16.85 |
