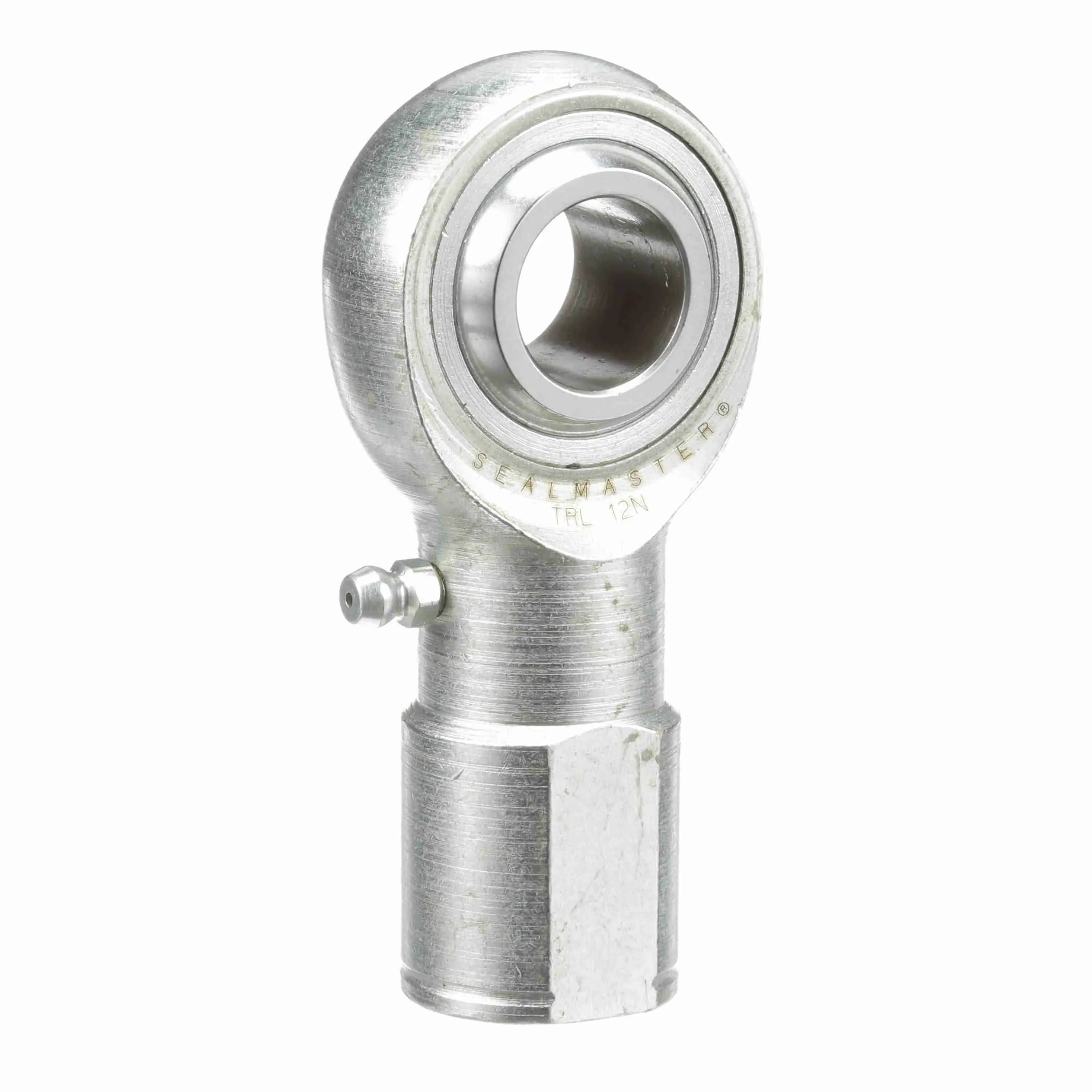

SEALMASTER TRL 12N 1511201000 Rod End Bearing, 3/4 Inch Bore, 0.687 Inch Housing Width, Female, Left Hand
Get it by Tuesday, Sep 1
€69.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rod End Bearing |
| Ability To Relubricate | Yes |
| Across Wrench Flats | 1" |
| Axial Load | 1130 |
| Ball Dia. | 1.312" |
| Ball Finish | Chrome Plated |
| Ball Flat Dia. | 0.978" |
| Ball Material | Alloy, Steel |
| Ball Width | 7/8" |
| Base Dia. | 1 1/8" |
| Bearing Insert Type | Rod End |
| Bore Dia. | 3/4" |
| Class | Precision |
| Configuration | Female |
| Construction | Three Piece Rod End With Zerk Fitting |
| Head Dia. | 1 3/4" |
| Housing Style | Female Rod End |
| Housing Width | 0.687" |
| Htc | 8483.30.8055 |
| Length To Center Of Ball | 2 22/25" |
| Lubrication | Zerk Fitting |
| Lubrication Method | Fitting |
| Lubrication Type | Grease |
| Max. Ambient Temp. | 350°F |
| Max. Static Radial Load | 11300 |
| Misalignment Angle | -7° to +7° |
| Outer Material | Carbon Steel |
| Outer Material Property | Corrosion Resistant Plating |
| Product Selection Available Sw | Yes |
| Product Type | TR |
| Race Material | Carbon Steel |
| Race Material Property | Corrosion Resistant Plating |
| Series | Precision Series |
| Thread Direction | Left Hand |
| Thread Length | 1.719" |
| Thread Size | 3/4"-16 |
| Thread Type | UNF |
| Type | Female Rod End |
| Zerk Fitting Sw | Yes |
Shipping Info:
| Ship weight (kg) | 0.31 |
| Ship height (cm) | 5.33 |
| Ship length (cm) | 12.95 |
| Ship width (cm) | 3.18 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Ball Dia. | Shank Thread Size | Static Radial Load Capacity | Head Width | Race Material | Type | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TRL 16N | 1" | 1 7/8" | - | - | - | Carbon Steel | Female Rod End | - | €195.62 | |
 |
TRL 12YN | 3/4" | - | - | - | - | Carbon Steel | - | - | €102.04 | |
 |
TRL 6Y | - | - | #3/8-24 | 4450 lbf. | - | - | - | Grade Precision | €29.62 | |
 |
TR 5 | 5/16" | 5/8" | - | - | - | Carbon Steel | Female Rod End | - | €19.40 | |
 |
TRL 8N | 1/2" | 0.937" | - | - | - | Carbon Steel | Female Rod End | - | €42.93 | |
 |
TR 12N | 3/4" | 1.312" | - | - | - | Carbon Steel | Female Rod End | - | €62.33 | |
 |
TR 4N | 1/4" | 1/2" | - | - | - | Carbon Steel | Female Rod End | - | €22.71 |
