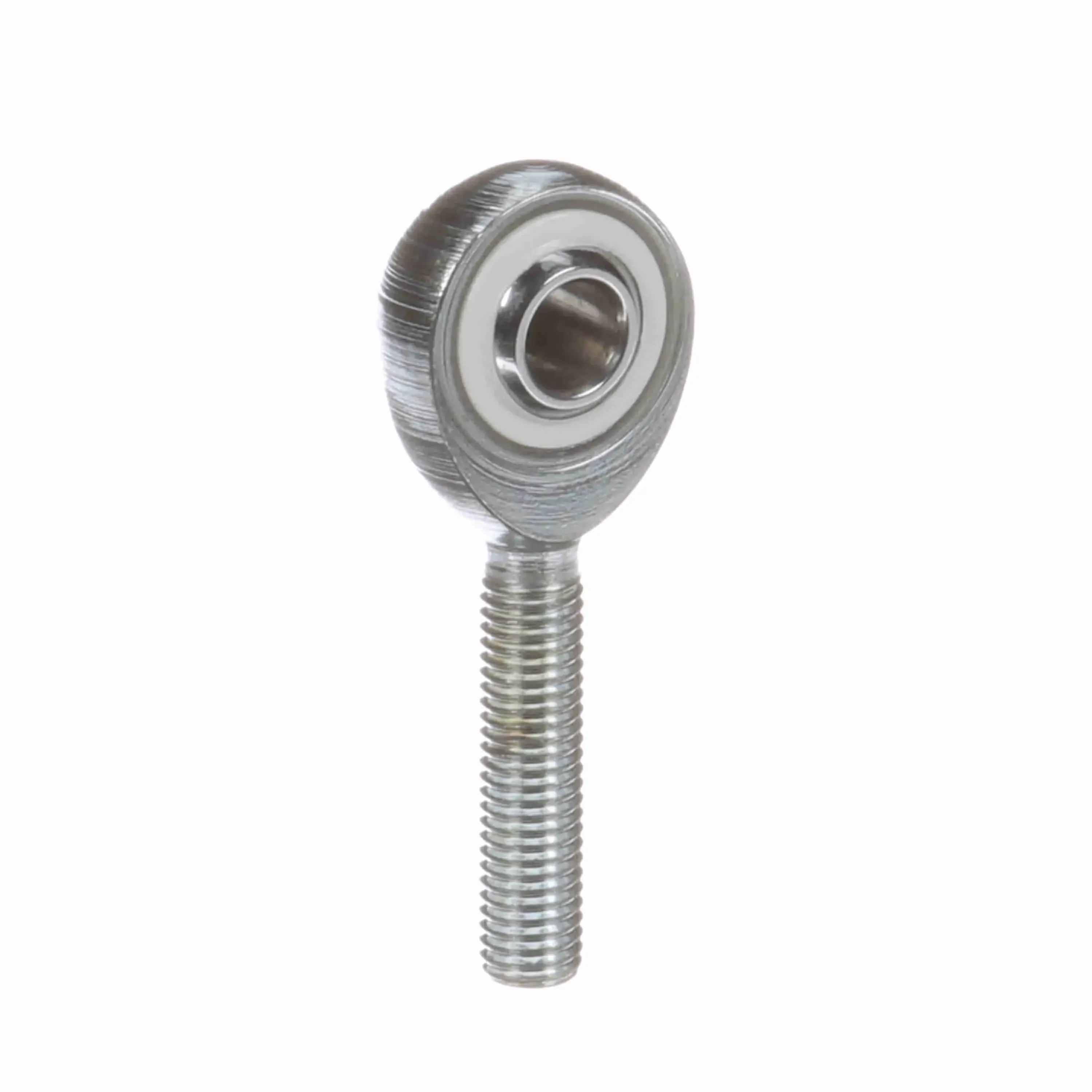

SEALMASTER CTMD 4 1460400000 Rod End Bearing, 1/4 Inch Bore, 9/32 Inch Housing Width, Male, 1/4-28 UNF, Right Hand
Get it by Wednesday, Dec 24
€15.15 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rod End Bearing |
| Ability To Relubricate | Self |
| Axial Load | 106 |
| Ball Diameter | 1/2" |
| Ball Finish | Chrome Plated |
| Ball Flat Diameter | 0.331" |
| Ball Material | Alloy Steel |
| Ball Width | 3/8" |
| Bearing Insert Type | Rod End |
| Bore Diameter | 1/4" |
| Class | Commercial |
| Configuration | Male |
| Construction | Three Piece Rod End |
| Head Dia. | 3/4" |
| Housing Style | Female Rod End |
| Housing Width | 0.281" |
| Htc | 8483.30.8055 |
| Length To Center Of Ball | 1 14/25" |
| Liner | Delrin Liner |
| Lubrication | No Zerk Fitting |
| Lubrication Method | Self Lubricating |
| Lubrication Type | Self Lubricating |
| Max Static Radial Load | 1060 |
| Max. Ambient Temp. | 150°F |
| Misalignment Angle | -8° to +8° |
| Outer Material | Carbon Steel |
| Outer Material Property | Corrosion Resistant Plating |
| Product Selection Available Sw | Yes |
| Product Type | Ctmd |
| Race Material | Delrin |
| Series | Commercial Series |
| Thread Direction | RH |
| Thread Length | 0.969" |
| Thread Size | 1/4"-28 |
| Thread Type | UNF |
| Type | Male Rod End |
| Zerk Fitting Sw | No |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 4.93 |
| Ship width (cm) | 0.97 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Ball Diameter | Bore Diameter | Ball Material | Race Material | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
CTMD 3 | - | 0.437" | 3/16" | Alloy Steel | Delrin | Male Rod End | €15.15 | |
 |
CTMDL 6 | 3/8" | 0.718" | - | Alloy Steel | Delrin | Male Rod End | €19.34 | |
 |
CTMD 6Y | 3/8" | 0.718" | - | Alloy Steel | Delrin | Male Rod End | €23.28 | |
 |
CTMDL 12Y | 3/4" | - | - | Alloy Steel | Delrin | - | €362.36 | |
 |
CTMDL 3Y | 0.19" | - | - | Alloy Steel | Delrin | - | €104.07 | |
 |
CTMDL 8Y | 1/2" | - | - | Alloy Steel | Delrin | - | €36.58 | |
|
CTMDL 5Y | 5/16" | - | - | Alloy Steel | Delrin | - | €22.10 |
