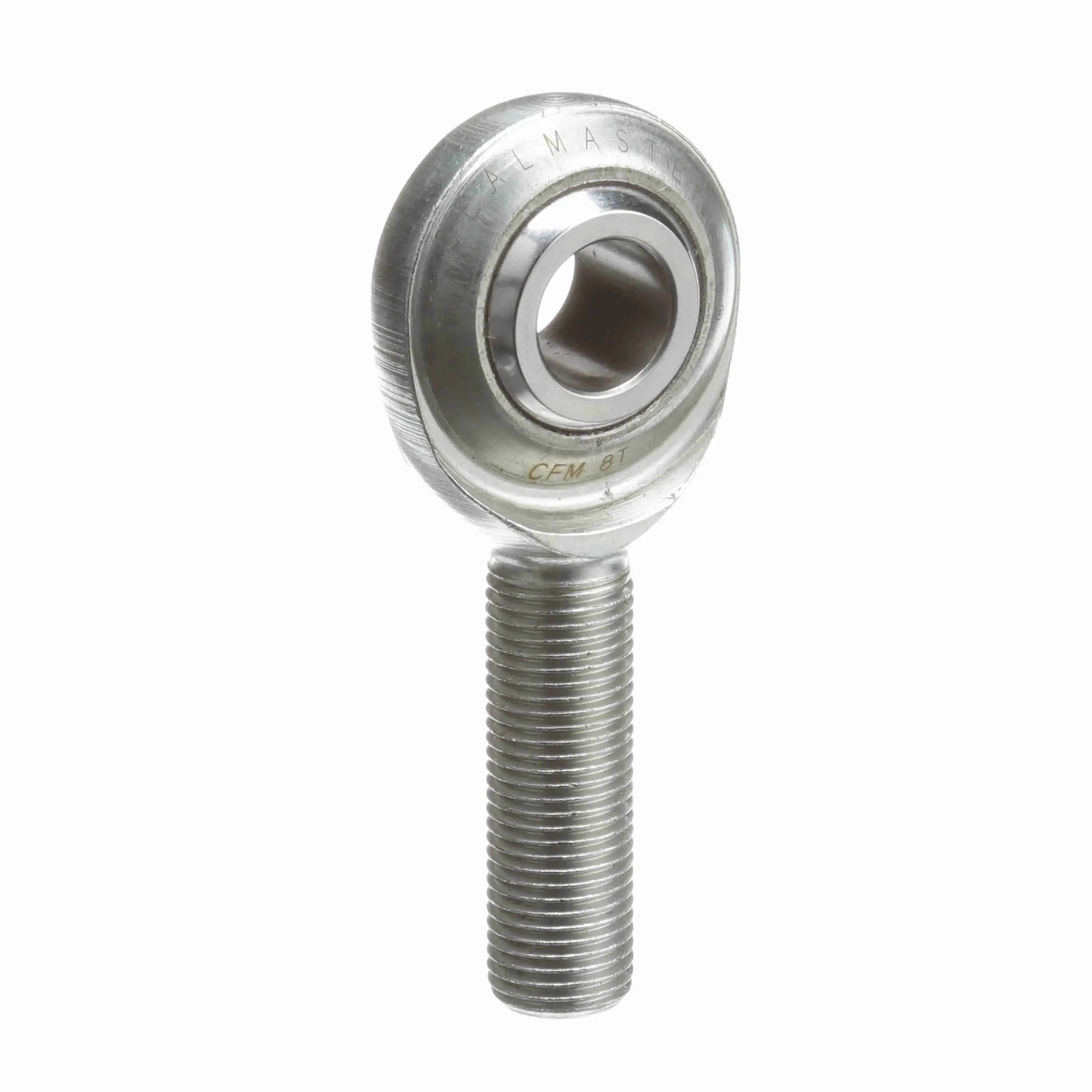

SEALMASTER CFM 8T 1480804000 Rod End Bearing, 1/2 Inch Bore, 1/2 Inch Housing Width, Male, 1/2-20 UNF, Right Hand
Get it by Tuesday, Dec 23
€61.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rod End Bearing |
| Ability To Relubricate | No |
| Axial Load | 492 |
| Ball Diameter | 0.937" |
| Ball Finish | Chrome Plated |
| Ball Flat Diameter | 0.698" |
| Ball Material | Alloy Steel |
| Ball Width | 5/8" |
| Bearing Insert Type | Rod End |
| Bore Dia. | 1/2" |
| Class | Precision |
| Configuration | Male |
| Construction | Two Piece Rod End |
| Head Diameter | 1.312" |
| Housing Style | Male Rod End |
| Housing Width | 1/2" |
| Htc | 8483.30.8055 |
| Length To Center Of Ball | 2 11/25" |
| Liner | Teflon Fabric Liner |
| Lubrication | No Zerk Fitting |
| Lubrication Method | Self Lubricating |
| Lubrication Type | Self Lubricating |
| Max. Ambient Temp. | 250°F |
| Max. Static Radial Load | 4920 |
| Misalignment Angle | -6° to +6° |
| Outer Material | Carbon Steel |
| Outer Material Property | Corrosion Resistant Plating |
| Product Selection Available Sw | Yes |
| Product Type | Cfm-T |
| Race Material | Teflon |
| Series | Precision Series |
| Thread Direction | RH |
| Thread Length | 1.469" |
| Thread Size | 1/2"-20 |
| Thread Type | UNF |
| Type | Male Rod End |
| Zerk Fitting Sw | No |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 3.33 |
| Ship length (cm) | 7.85 |
| Ship width (cm) | 1.6 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Ball Diameter | Bore Diameter | Ball Material | Type | Race Material | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
CFML 6YN | - | - | - | - | - | - | €33.64 | |
|
CFML 10Y | - | - | - | - | - | - | €60.83 | |
 |
CFM 8Y | 1/2" | 0.937" | - | Alloy Steel | Male Rod End | - | €33.13 | |
|
CFML 16N | 1" | - | - | Alloy Steel | - | - | €970.87 | |
 |
CFM 10Y | 5/8" | - | - | Alloy Steel | - | - | €290.79 | |
|
CFM 5TY | 5/16" | - | - | Alloy Steel | - | Teflon | €52.07 | |
 |
CFML 7N | 7/16" | 0.812" | - | Alloy Steel | Male Rod End | - | €27.17 |
