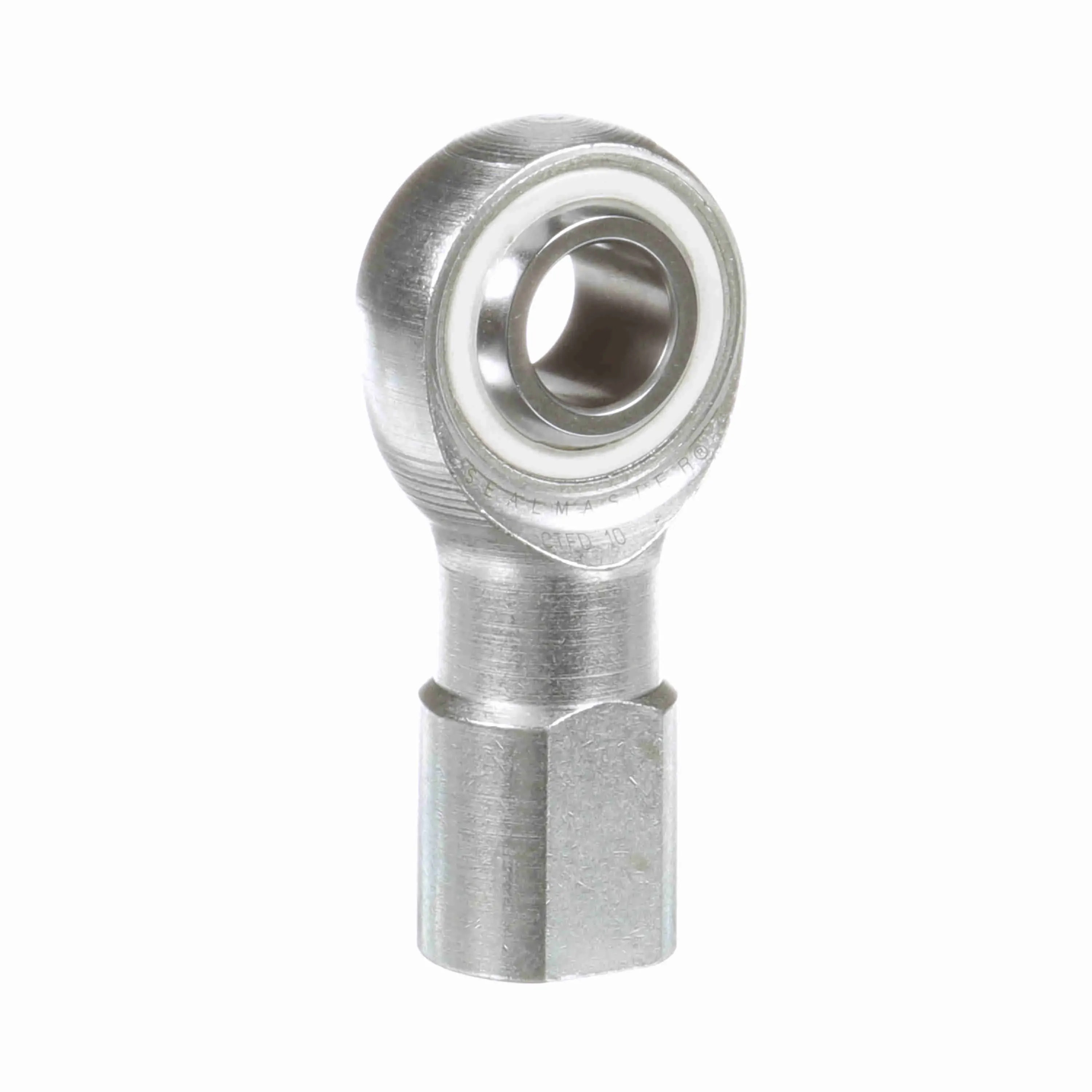

SEALMASTER CTFD 10 1471000000 Rod End Bearing, 5/8 Inch Bore, 0.562 Inch Housing Width, Female, 5/8-18 UNF, Right Hand
Get it by Tuesday, Aug 25
€36.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rod End Bearing |
| Ability To Relubricate | Self |
| Across Wrench Flats | 7/8" |
| Axial Load | 462 |
| Ball Dia. | 1 1/8" |
| Ball Finish | Chrome Plated |
| Ball Flat Dia. | 0.839" |
| Ball Material | Alloy, Steel |
| Ball Width | 3/4" |
| Base Dia. | 1" |
| Bearing Insert Type | Rod End |
| Bore Dia. | 5/8" |
| Class | Commercial |
| Configuration | Female |
| Construction | Three Piece Rod End |
| Head Dia. | 1 1/2" |
| Housing Style | Female Rod End |
| Housing Width | 0.562" |
| Htc | 8483.30.8055 |
| Length To Center Of Ball | 2 1/2" |
| Liner | Delrin Liner |
| Lubrication | No Zerk Fitting |
| Lubrication Method | Self Lubricating |
| Lubrication Type | Self Lubricating |
| Max. Ambient Temp. | 150°F |
| Max. Static Radial Load | 4620 |
| Misalignment Angle | -8° to +8° |
| Outer Material | Carbon Steel |
| Outer Material Property | Corrosion Resistant Plating |
| Product Selection Available Sw | Yes |
| Product Type | Ctfd |
| Race Material | Delrin |
| Series | Commercial Series |
| Thread Direction | RH |
| Thread Length | 1.469" |
| Thread Size | 5/8"-18 |
| Thread Type | UNF |
| Type | Female Rod End |
| Zerk Fitting Sw | No |
Shipping Info:
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 2.24 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Ball Dia. | Shank Thread Size | Race Material | Type | Grade | Static Radial Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
CTFDL 3Y | 0.19" | - | - | Delrin | - | - | - | €108.19 | |
 |
CTFDL 8Y | 1/2" | - | - | Delrin | - | - | - | €35.03 | |
 |
CTFD 7 | 7/16" | 0.812" | - | Delrin | Female Rod End | - | - | €18.69 | |
 |
CTFDL 3 | 0.19" | - | - | Delrin | - | - | - | €70.64 | |
|
CTFDL 6Y | 3/8" | - | - | Delrin | - | - | - | €24.03 | |
|
CTFD 3Y | 0.19" | - | - | Delrin | - | - | - | €23.84 | |
|
CTFDL 7 | 7/16" | - | - | Delrin | - | - | - | €98.09 |
