LEESON Jet Pump Motors

CSA certified & UL recognized motors designed for industrial & commercial pumping applications; feature 416 stainless steel threaded shafts & terminal board with quick-connects. Available with drip cover kits and in single- & three-phase motor designs

Filter

Leeson jet pump motors are non-submersible pumps that can be mounted above the ground. They extract water from a well using a suction pipe to produce potable water or water pressure and are designed for industrial & commercial pumping applications.
LEESON -

Centrifugal Pump Motors, Three Phase, Totally Enclosed, C Face Footed, 56J

LEESON 056T34F99018A
LEESON 056T34F5343B
LEESON 056T34F99029C
StyleModelVoltageHpOverall LengthBody Dia.Full Load AmpsUsable @ 208vNominal EfficiencyEfficiencyPrice
A056T34F99018208-230/460V AC1 1/2 hp13 13/16"7.4"4.2-4/2AYes85.5%85.5%€756.86
B056T34F5343208-230/460V AC3/4 hp12 5/16"7 2/5"3-3.2/1.6AYes74%74%€506.23
C056T34F99029230/460V AC1 hp12 5/16"7 2/5"3/1.5ANo85.5%-€658.06
LEESON -

JM Pump Motors, Three Phase, TEFC, C Face With Base

LEESON 122086.00A
LEESON 122090.00B
StyleModelHpShaft LengthEfficiencyPowerCodeVoltageNameplate RpmMotor Enclosure DesignPrice
A122086.001 1/2 hp4 7/25"84%1.12 kWM230/460V3600/3000 RPMTotally Enclosed Fan Cooled€165.83
B122090.002 hp4.21"85.5%1.49 kWK230/460V3600/3000 RPMTotally Enclosed Fan Cooled€225.46
LEESON -

Washguard Jet Pump Motors, Three Phase, TEFC Threaded Shaft, C Face With Base

LEESON 116780.00A
LEESON 119461.00B
LEESON 119463.00C
LEESON 116779.00D
StyleModelHpNameplate RpmMotor Shaft RotationOverall LengthEfficiencyPowerFull Load AmpsCodePrice
A116780.001 hp3450 RPMClockwise/Counter Clockwise11 3/8"77%0.75 kW1.6AJ€1,357.47
B119461.002 hp3490 RPMCWLE13 7/8"85.5%1.49 kW5.2-4.8/2.4AL€1,458.11
C119463.003 hp3490 RPMCWLE14 3/8"86.5%2.24 kW8.8-8/4AN€1,153.90
D116779.003/4 hp3450 RPMClockwise/Counter Clockwise11 3/8"75.5%0.56 kW1.2AJ€679.24
LEESON -

Jet Pump Motors, Single Phase, Totally Enclosed Threaded Shaft, C Face Less Base

LEESON 113640.00A
LEESON 113955.00B
LEESON 113641.00C
StyleModelHpDesignService FactorEfficiencyPowerCodeVoltageNameplate RpmPrice
A113640.001 1/2 hpL172%1.12 kWH115/208-230V3600 RPM€1,099.55
B113955.001/2 hpN1.663%0.37 kWM115/208-230V3600 RPM€729.84
C113641.002 hpL173%1.49 kWJ115/208-230V3600 RPM€1,311.60
LEESON -

Jet Pump Motors, Single Phase, Totally Enclosed Threaded Shaft, C Face With Base

LEESON 113958.00A
LEESON 113957.00B
LEESON 113637.00C
LEESON 113959.00D
StyleModelHpService FactorDesignEfficiencyPowerCodeVoltageNameplate RpmPrice
A113958.001 1/2 hp1L72%1.12 kWH115/208-230V3600 RPM€1,089.50
B113957.001 hp1.25-70%0.75 kWJ115/208-230V3600 RPM€490.16
C113637.001/2 hp1.6N63%0.37 kWM115/208-230V3600 RPM€437.19
D113959.002 hp1L73%1.49 kWJ115/208-230V3600 RPM€1,327.14
LEESON -

Centrifugal Pump Motors, Single Phase, Dripproof, C Face Footless, 56C/56J

LEESON 5KC39RN45XA
LEESON 5KC37FN65XB
LEESON 5KC39QN3219XC
LEESON 5KC49NN2167XD
LEESON 5KCR48TN2174TE
LEESON 5KC36JN269XF
StyleModelVoltageHpMotor Shaft RotationService FactorMotor ApplicationMotor Thermal ProtectionMotor Mounting PositionOverall LengthPrice
A5KC39RN45X115/208-230V AC1 hpCCWSE1.4PumpAutomaticAll Angle13 1/8"€400.65
B5KC37FN65X115/208-230V AC1/3 hpCW1.75PumpAutomaticAll Angle11 1/4"€348.40
C5KC39QN3219X115/208-230V AC3/4 hpCCWSE1.5Jet PumpAutomaticAll Angle12 3/8"€348.62
D5KC49NN2167X115/230V AC1 1/2 hpCCWSE1.3PumpAutoAll Angle11 7/8"€562.41
E5KCR48TN2174T115/230V AC3 hpCCWSE1.15PumpAutomaticAll Angle13 3/16"€1,098.27
F5KC36JN269X115/230V AC1/2 hpCCWSE1.6PumpAutomaticAll Angle10 13/16"€367.43
LEESON -

Jet Pump Motors, Two-Compartment, C Face Footled, 56C/56J

LEESON 5KC39SN2890XA
LEESON 5KH39EN2887XB
StyleModelVoltageHpMotor Shaft RotationService FactorOverall LengthNominal EfficiencyRpm RangeNameplate RpmPrice
A5KC39SN2890X115/230V AC1 hpCCWSE1.414"72%3001-3600 RPM3450 RPM€301.14
B5KH39EN2887X115V AC1/3 hpCWSE1.7511.562"63.3%3001-3600 RPM3450 RPM€214.65
LEESON -

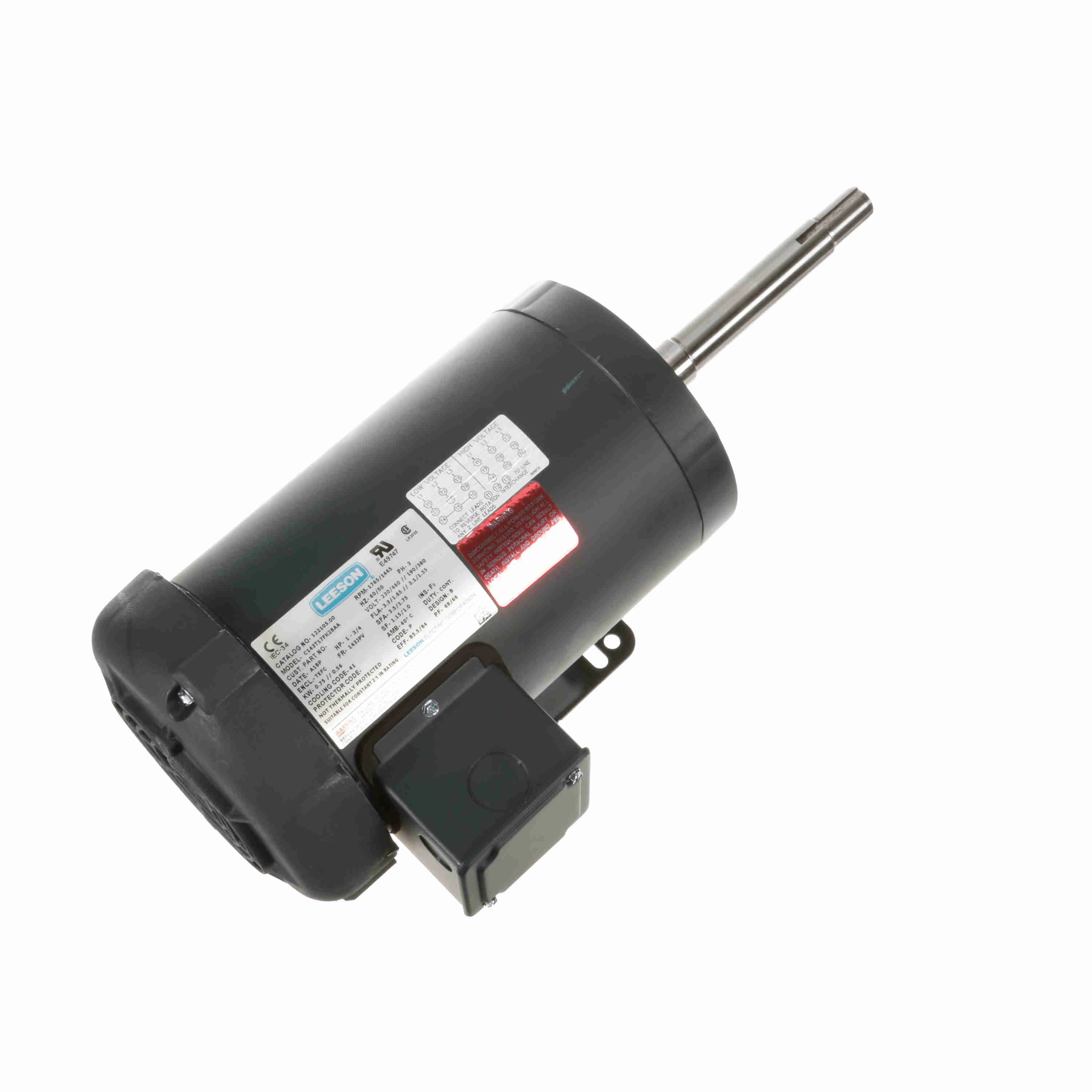

Jet Pump Motor, 1HP, 1800 RPM, 230/460V, 60Hz

Jet Pump Motor, 1HP, 1800 RPM, 230/460V, 60Hz
ModelItemPrice (ex. VAT)
122105.00EC3KYG€208.43
LEESON -

Jet Pump Motor, 1800 RPM, 1.50 HP

Jet Pump Motor, 1800 RPM, 1.50 HP
ModelItemPrice (ex. VAT)
122097.00EC3KYF€237.11
LEESON -

Jet Pump Motor, 0.75 HP, 1800 RPM

Jet Pump Motor, 0.75 HP, 1800 RPM
ModelItemPrice (ex. VAT)
103725.00EC3KVY€115.97
LEESON -

Jet Pump Motor, 1.50/1 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 and 3000 RPM

Jet Pump Motor, 1.50/1 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 and 3000 RPM
ModelItemPrice (ex. VAT)
119453.00AJ2RCD€567.63
LEESON -

Jet Pump Motor, 5 HP, 3 Phase, 60 Hz, 230/460V, 3600 RPM

Jet Pump Motor, 5 HP, 3 Phase, 60 Hz, 230/460V, 3600 RPM
ModelItemPrice (ex. VAT)
116699.00AJ2QUJ€1,336.36
LEESON -

Jet Pump Motor, 5 and 3 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 and 3000 RPM

Jet Pump Motor, 5 and 3 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 and 3000 RPM
ModelItemPrice (ex. VAT)
116698.00AJ2QUH€1,287.22
LEESON -

General Purpose Pump Motor, 1 HP, 1 Phase, 60 Hz, 115/208-230V, 3600 RPM

General Purpose Pump Motor, 1 HP, 1 Phase, 60 Hz, 115/208-230V, 3600 RPM
ModelItemPrice (ex. VAT)
056C34D2121AJ2LNA€442.88
LEESON -

General Purpose Pump Motor, 0.75 HP, 3 Phase, 60 Hz, 208-230/460V, 3600 RPM

General Purpose Pump Motor, 0.75 HP, 3 Phase, 60 Hz, 208-230/460V, 3600 RPM
ModelItemPrice (ex. VAT)
5K37MN38AJ2LCE€423.49
LEESON -

General Purpose Pump Motor, 0.33 HP, 1 Phase, 60 Hz, 115/230V, 3600 RPM

General Purpose Pump Motor, 0.33 HP, 1 Phase, 60 Hz, 115/230V, 3600 RPM
ModelItemPrice (ex. VAT)
5KC33FN4180XAE6JJH€490.78
LEESON -

General Purpose Pump Motor, 0.50 HP, 3 Phase, 60 Hz, 208-230/460V, 1800 RPM

General Purpose Pump Motor, 0.50 HP, 3 Phase, 60 Hz, 208-230/460V, 1800 RPM
ModelItemPrice (ex. VAT)
5K42HN4133AD8VWL€704.99
LEESON -

Jet Pump Motor, 2/1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 and 3000 RPM

Jet Pump Motor, 2/1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 and 3000 RPM
ModelItemPrice (ex. VAT)
119460.00AJ2RCG€1,828.61
LEESON -

Jet Pump Motor, 0.33 HP, 1 Phase, 60 Hz, 115V, 3600 RPM

Jet Pump Motor, 0.33 HP, 1 Phase, 60 Hz, 115V, 3600 RPM
ModelItemPrice (ex. VAT)
5KH39EN2552XAJ2LNM€191.53

Features

  • Leeson jet pump motors feature 416 stainless steel threaded shafts & terminal boards with quick connects.
  • They feature durable steel frame construction for structural rigidity and Polyrex EM / verified lubrication to resist oil & water leakage at temperatures up to 40 degrees Celsius.
  • These single & triple-phase units offer premium Class B / F insulation for temperature control.
  • They are either equipped with a TEFC enclosure to permit the cooling air to flow through the motor, thereby preventing overheating or a dripproof enclosure to ensure protection from dust, water and air-borne contaminants.
  • These models come with a drip-proof enclosure to ensure protection from dust, water and air-borne contaminants.
  • They have either a C-Face endshield with / without a base or a rigid base for quick installation.
  • These units include easy-to-read nameplates for quick identification and high-quality ball bearings to deliver continuous duty operation at speeds up to 3490 rpm.
  • They are available in counter-clockwise, clockwise or REV shaft rotation variants.

Working Mechanism

  • Electric motors convert electrical energy into mechanical energy for generating motion.
  • Force is produced within the motor through the interaction between a winding alternating (AC) or direct (DC) current and the magnetic field.

Standards and Approvals

  • CSA
  • UL

Frequently Asked Questions

What is the difference between TEBC and TEFC motors?

Totally enclosed blower-cooled (TEBC) motors are virtually identical to TEFC motors with the exception that the motor body is cooled by a separate "blower" positioned on the body rather than by a shaft-mounted fan while the motor is working at a high speed.

What is the purpose of a shaft in a motor?

A shaft is a cylindrical component extruding out from the housing and motor. It converts energy from the motor into end-use applications.

What do you mean by Class B and F insulation?

These motors have Class B or F insulation for temperature control. The Class B insulated motors can handle temperatures up to 130 degrees C and Class F can withstand a maximum temperature of 105 degrees C.

What is the difference between single, double and triple-phase motors?

  • Single-phase motor: Current flows through a single conductor.
  • Double-phase motor: Current flows through 4-wire conductors (2 for each phase).
  • Triple-phase motor: Current flows through 3 separate conductors.
