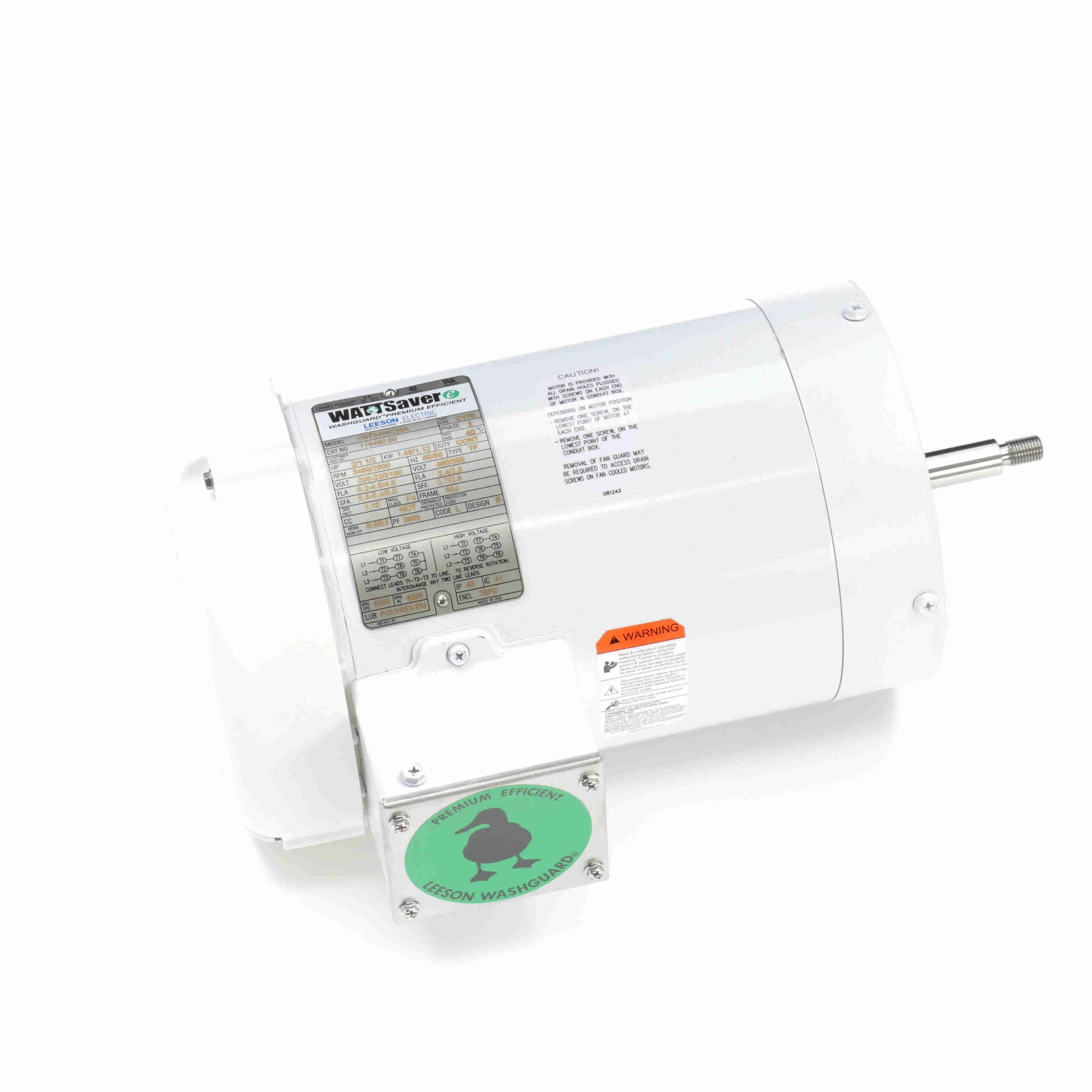

LEESON 119460.00 C6T34WC25A Jet Pump Motor, 2/1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 and 3000 RPM
Get it by Wednesday, Dec 24
10.00% off
€1,645.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Jet Pump Motor |
| Ambient Temp. | 104°F |
| Amps | 4.8/2.4A |
| Bearing Type | Ball |
| Body Dia. | 7.38" |
| Bolt Circle Dia. | 5 7/8" |
| Cc Number | CC005A |
| Code | L |
| Color | White |
| Conduit Box Position | F1 |
| Design | B |
| Design Code | B |
| Drain Plug | (4) Each End, (2) In Conduit Box |
| Drain Plugs | (4) Each End, (2) Conduit Box |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Endshield Material | Cast Aluminum |
| Finish | Epoxy Coated |
| Frame | 56J |
| Frame Length | 7 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 56J |
| Frequency | 60 Hz |
| Frequency | 50/60 Hz |
| Full Load Amps | 5.2-4.8/2.4A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 2 hp |
| Hz | 50/60 Hz |
| Includes | Splice Kit |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP55 |
| Kva Code | L |
| Kw | 1.5 kW |
| Length | 19 1/2" |
| Length Less Shaft | 10 7/16" |
| Lubrication | Polyrex EM |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 3490 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Shaft Rotation | CWLE |
| Motor Sub Application | Pool and Spa Pump |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Nameplate Rpm | 3490 RPM |
| Nema Design | NEMA B |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 85.5% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 13 7/8" |
| Packaging | B |
| Phase | 3 |
| Power | 1.49 kW |
| Power Factor | 88 |
| Product Type | Washdown Jet Pump Motor |
| Removable Base | No |
| Resistance Main | 6.4 ohms |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 11/25" |
| Shaft Type | J |
| Standards | Bissc, Ce, Csa, Ul |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Weight | 44 lbs. |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 19.98 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - 116777.00 / C6T34WC11B
- Eff 100%: 85.5
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 081341
- Winding: T632174
- GROUP: 3
- Paint: WHITE - LEESON (EPOXY)
- S. F Amps: 5.8-5.4 / 2.7
