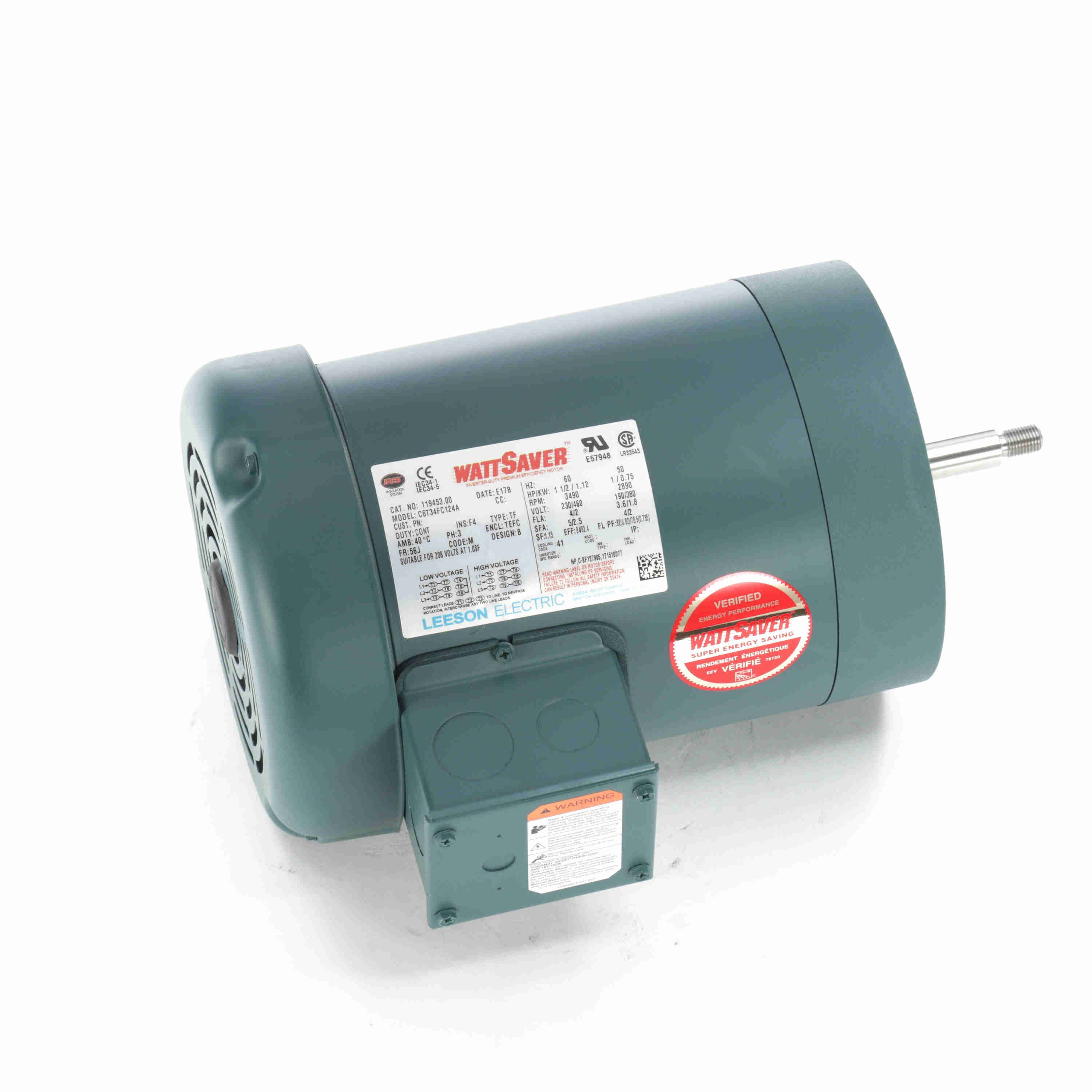

LEESON 119453.00 C6T34FC124A Jet Pump Motor, 1.50/1 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 and 3000 RPM
Get it by Tuesday, May 19
€567.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Jet Pump Motor |
| Amps | 4/2A |
| Bearing Protection | Shaft Shield |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Bolt Circle Dia. | 5 7/8" |
| Code | M |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Design | B |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 84% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | Tefc |
| Frame | 56J |
| Frame Length | 6 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 56J |
| Frequency | 60 Hz |
| Full Load Amps | 4/2A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 1/2 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP43 |
| Kva Code | M |
| Kw | 1.1 kW |
| Length | 14 11/25" |
| Length Less Shaft | 10 1/4" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 104°F |
| Max. Rpm | 3490 RPM |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.2 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Jet Pump |
| Mounting Type | Face |
| Nameplate Rpm | 3490 RPM |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 84% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 12 11/16" |
| Packaging | B |
| Phase | 3 |
| Power | 1.12 kW |
| Power Factor | 82 |
| Resistance Main | 8.5 ohms |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 11/25" |
| Shaft Material | Stainless Steel |
| Shaft Type | J |
| Starting Method | Line Or Inverter |
| Thermal Protection | No Protection |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 18.45 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - 114206.00
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 993500
- Winding: T632173
- GROUP: 3
- Paint: GREEN - LEESON WATTSAVER
- S. F Amps: 5 / 2.5
- Eff 100%: 84 / 82.4
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Frame | Motor Shaft Rotation | Service Factor | Phase | Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056T34F99029 | 230/460V AC | 1 hp | 3450 RPM | 56J | CW/CCW | 1.15 | 3 | - | €658.06 | |
 |
113637.00 | 115/208-230V | 1/2 hp | 3600 RPM | 56J | Fixed Clockwise | 1.6 | 1 | N | €437.19 | |
 |
113640.00 | 115/208-230V | 1 1/2 hp | 3600 RPM | 56J | Fixed Clockwise | 1 | 1 | L | €1,099.55 | |
 |
113641.00 | 115/208-230V | 2 hp | 3600 RPM | 56J | Fixed Clockwise | 1 | 1 | L | €1,311.60 | |
 |
113955.00 | 115/208-230V | 1/2 hp | 3600 RPM | 56J | Fixed Clockwise | 1.6 | 1 | N | €729.84 | |
 |
113957.00 | 115/208-230V | 1 hp | 3600 RPM | 56J | Fixed Clockwise | 1.25 | 1 | - | €490.16 | |
 |
113958.00 | 115/208-230V | 1 1/2 hp | 3600 RPM | 56J | Fixed Clockwise | 1 | 1 | L | €1,089.50 |
