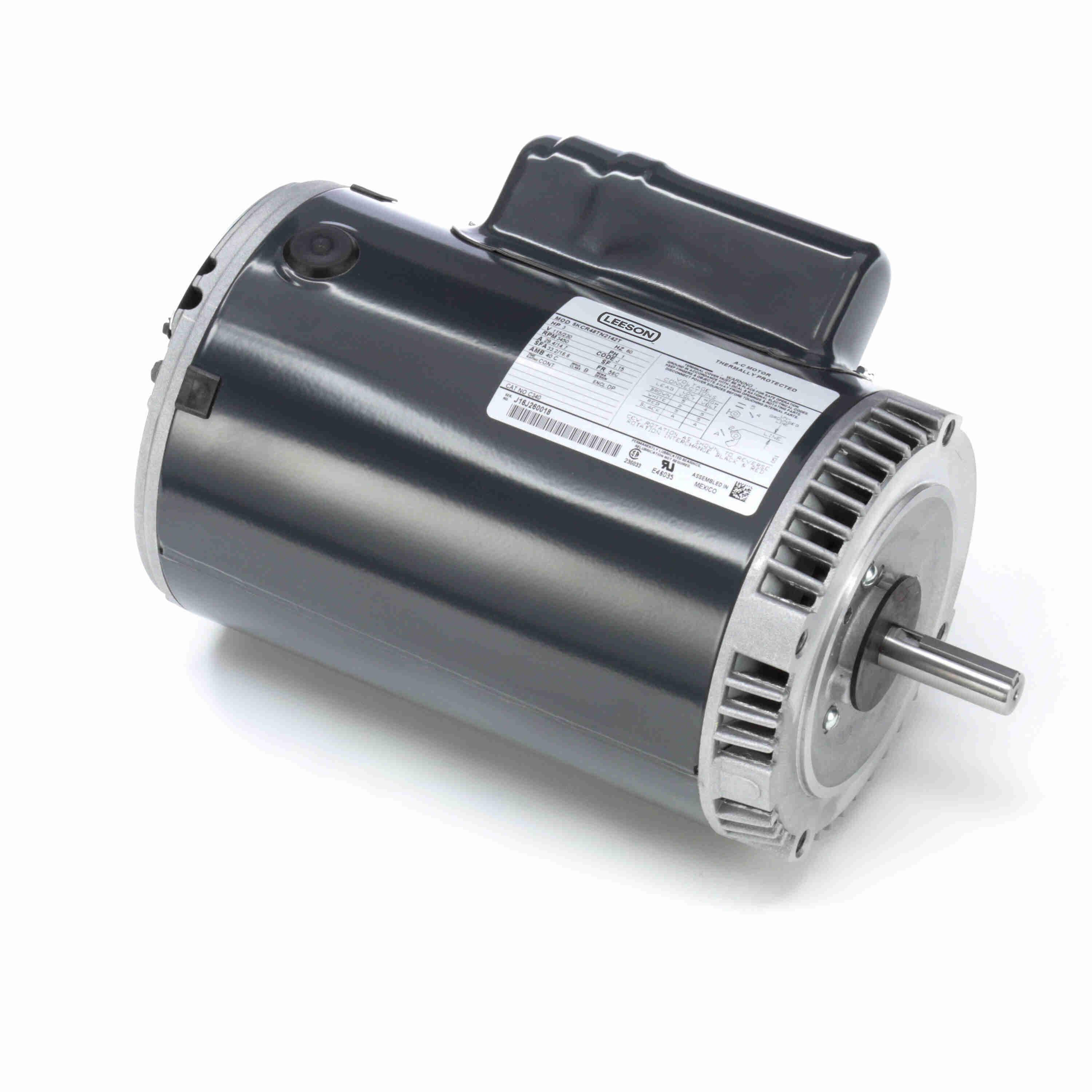

LEESON 5KCR48TN2142T C340 General Purpose Pump Motor, 3 HP, 1 Phase, 60 Hz, 115/230V, 3600 RPM
Get it by Tuesday, Sep 1
5.00% off
€1,146.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Oil Burner Motor |
| Bearing Type | Ball |
| Bolt Circle Dia. | 4 1/2" |
| Conduit Box Location | Exterior |
| Duty Cycle | Continuous |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 29.4/14.7A |
| Hp | 3 hp |
| Included | Shaft Slinger |
| Insulation Class | Class B |
| Length Less Shaft | 10 3/4" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start, Run |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | CW, CCW |
| Motor Sub Application | Jet Pump |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start |
| Mounting Type | Face |
| Nameplate Speed | 3450 RPM |
| No. Of Speed | 1 |
| Nominal Efficiency | 78.5% |
| Phase | 1 |
| Product Datasheet | leeson-5kcr48tn2142t.pdf |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Material | Carbon Steel |
| Shaft Type | Keyed |
| Speed | 3001-3600 RPM |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
Shipping Info:
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 38.46 |
| Ship width (cm) | 25.88 |
| HS code | 8501406040 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Hp | Voltage | Motor Enclosure Design | Frame | Service Factor | Phase | Motor Thermal Protection | Motor Shaft Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KC36JN269X | 1/2 hp | 115/230V AC | Open Dripproof | 56J | 1.6 | 1 | Automatic | CCWSE | €384.33 | |
 |
5KC39QN3219X | 3/4 hp | 115/208-230V AC | Open Dripproof | 56J | 1.5 | 1 | Automatic | CCWSE | €384.71 | |
 |
5KC39RN45X | 1 hp | 115/208-230V AC | Open Dripproof | 56J | 1.4 | 1 | Automatic | CCWSE | €400.65 | |
 |
5KC49NN2167X | 1 1/2 hp | 115/230V AC | Open Dripproof | 56J | 1.3 | 1 | Auto | CCWSE | €562.41 | |
 |
5KCR48TN2174T | 3 hp | 115/230V AC | Open Dripproof | 56J | 1.15 | 1 | Automatic | CCWSE | €1,098.27 | |
 |
5KC49TN2141X | 2 hp | 115/208-230V AC | Open Dripproof | 56C | 1.2 | 1 | Auto | CW, CCW | €585.48 | |
 |
5K42HN4133 | 1/2 hp | 208-230/460V AC | Totally Enclosed Fan Cooled | 56J | 1 | 3 | None | CW, CCW | €746.53 |
