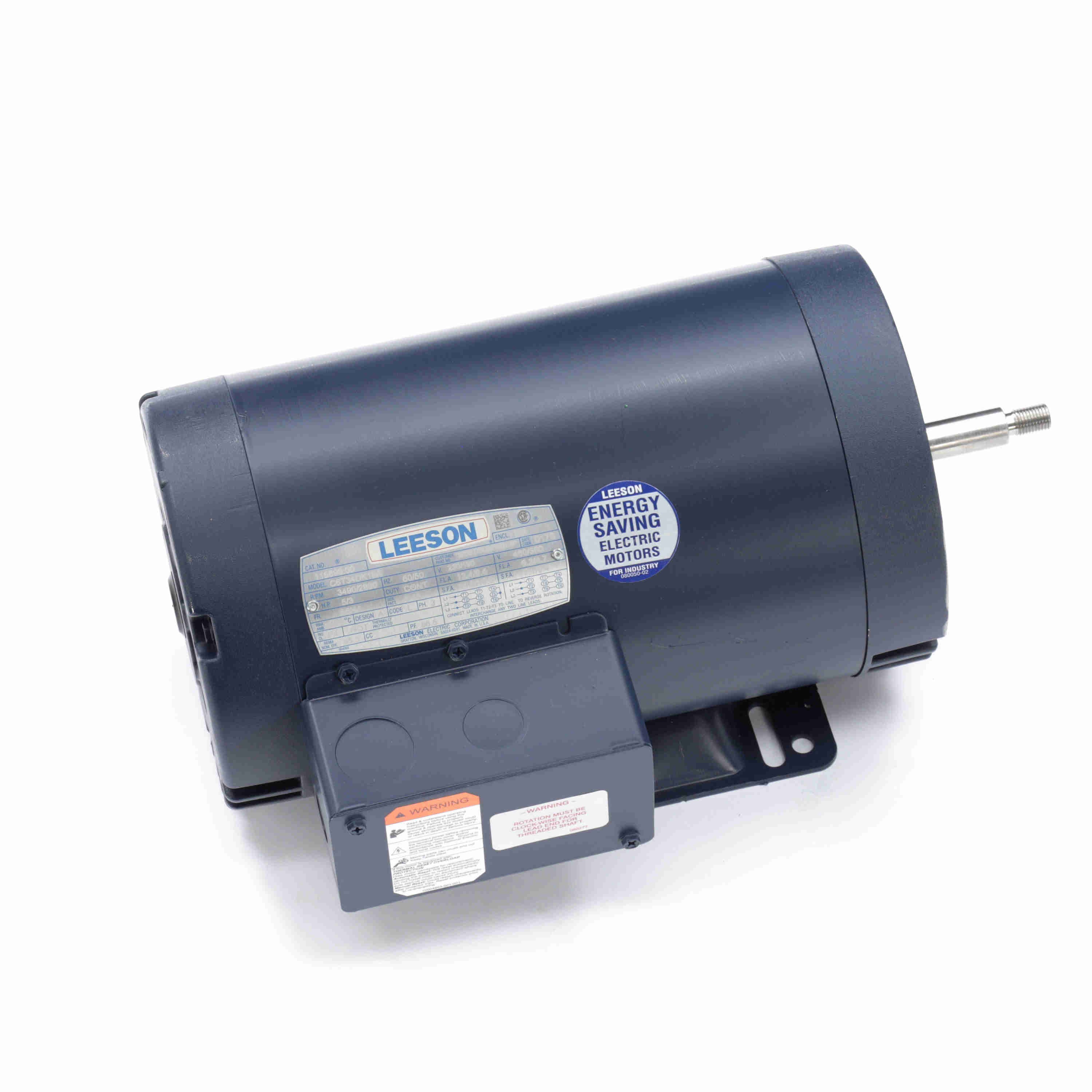

LEESON 116699.00 C6T34DK18A Jet Pump Motor, 5 HP, 3 Phase, 60 Hz, 230/460V, 3600 RPM
Get it by Tuesday, Dec 23
10.00% off
€1,202.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Jet Pump Motor |
| Amps | 12.4/6.2A |
| Code | L |
| Design | A |
| Design Code | A |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | ODP |
| Frame | 56HJ |
| Frame Length | 8 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 56HJ |
| Frequency | 60 Hz |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 5 hp |
| Insulation Class | Class F |
| Ip Code | IP22 |
| Kva Code | L |
| Kw | 3.7 kW |
| Length | 19 1/2" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 3490 RPM |
| Motor Enclosure Design | Dripproof |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600/3000 RPM |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | B |
| Phase | 3 |
| Power | 3.7 kW |
| Power Factor | 86.5 |
| Resistance Main | 3.1 ohms |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 11/25" |
| Shaft Type | J |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TD |
| Voltage | 230/460V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 23.85 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 004002
- Winding: T632199
- GROUP: 3
- Paint: VERIFY
- S. F Amps: 14.2 / 7.1
- Eff 100%: 85.5 / 86.5
