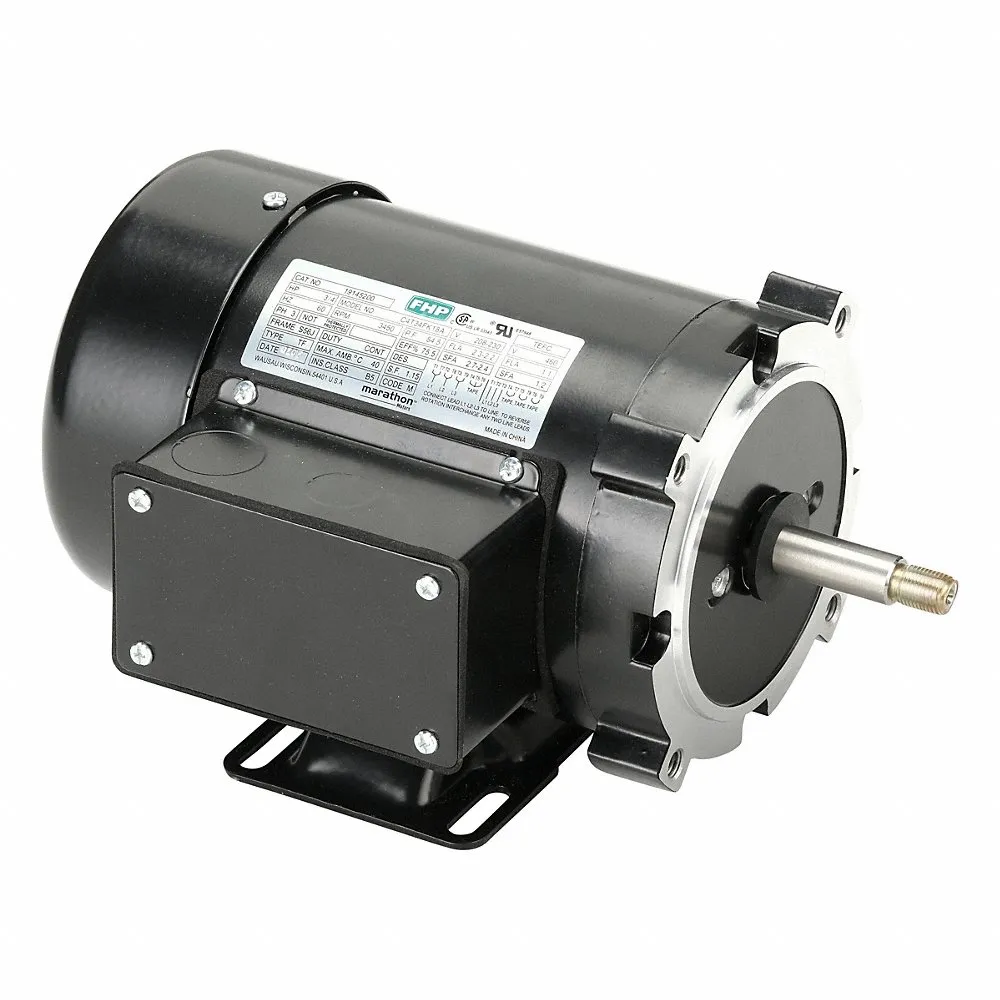

LEESON 19145200 Jet Pump Motor, 0.75 HP, 3 Phase, 60 Hz, 230/460V, 3600 RPM
Get it by Tuesday, Jun 30
5.00% off
€779.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor |
| Ambient Temp. | 105°F |
| Bearing Type | Ball |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Cord Length | 6" |
| Duty Cycle | Continuous |
| Efficiency | 79% |
| Finish | Enamel |
| Frame | S56J |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2.1/1.05A |
| Hp | 3/4 hp |
| Insulation Class | Class F |
| Inverter Rated | No |
| Min. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CW, CCW |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Speed | 3450 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| No. Of Wires | 3 |
| Output Kw | 0.56 kW |
| Overall Height | 6 3/16" |
| Overall Length | 11 7/8" |
| Part Winding Start Capable | No |
| Phase | 3 |
| Power | 0.56 kW |
| Power Factor | 84 |
| Product Datasheet | leeson-19145200.pdf |
| Service Factor | 1.2 |
| Service Factor Amps | 1.15A |
| Shaft Dia. | 5/8" |
| Shaft Material | Stainless Steel |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 15.72 |
| Ship length (cm) | 30.16 |
| Ship width (cm) | 39.17 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Voltage | Phase | Motor Enclosure Design | Frame | Motor Shaft Rotation | Motor Application | Motor Mounting Type | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S260409 | 12V DC | - | - | - | - | - | - | - | €951.90 | |
 |
20118 | - | - | - | - | - | - | - | - | €42.75 | RFQ
|
|
119454 | - | - | - | - | - | - | - | - | €120.13 | RFQ
|
|
20090 | - | - | - | - | - | - | - | - | €90.90 | RFQ
|
|
119455 | - | - | - | - | - | - | - | - | €129.59 | RFQ
|
 |
260428 | - | - | - | - | - | - | - | - | €1,491.57 | |
 |

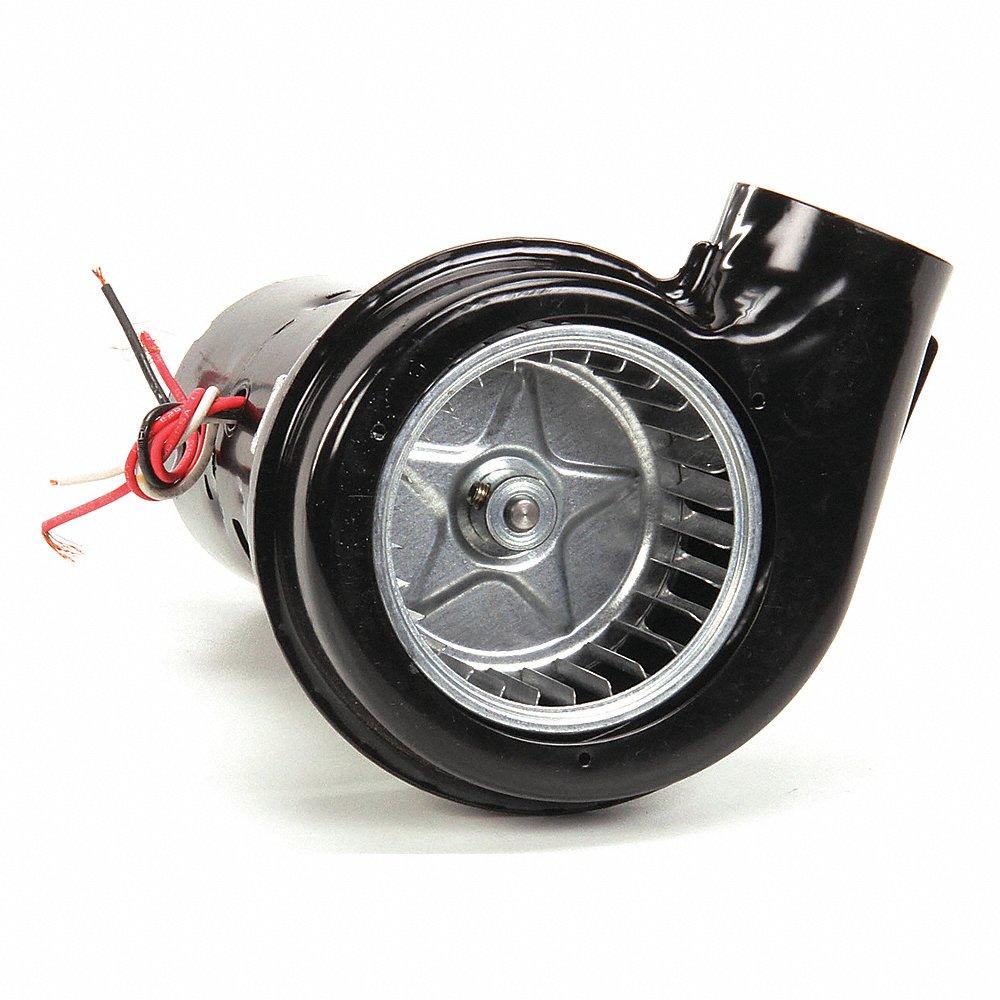

1614706 | 115V AC | - | - | - | - | - | - | - | €1,562.96 |
