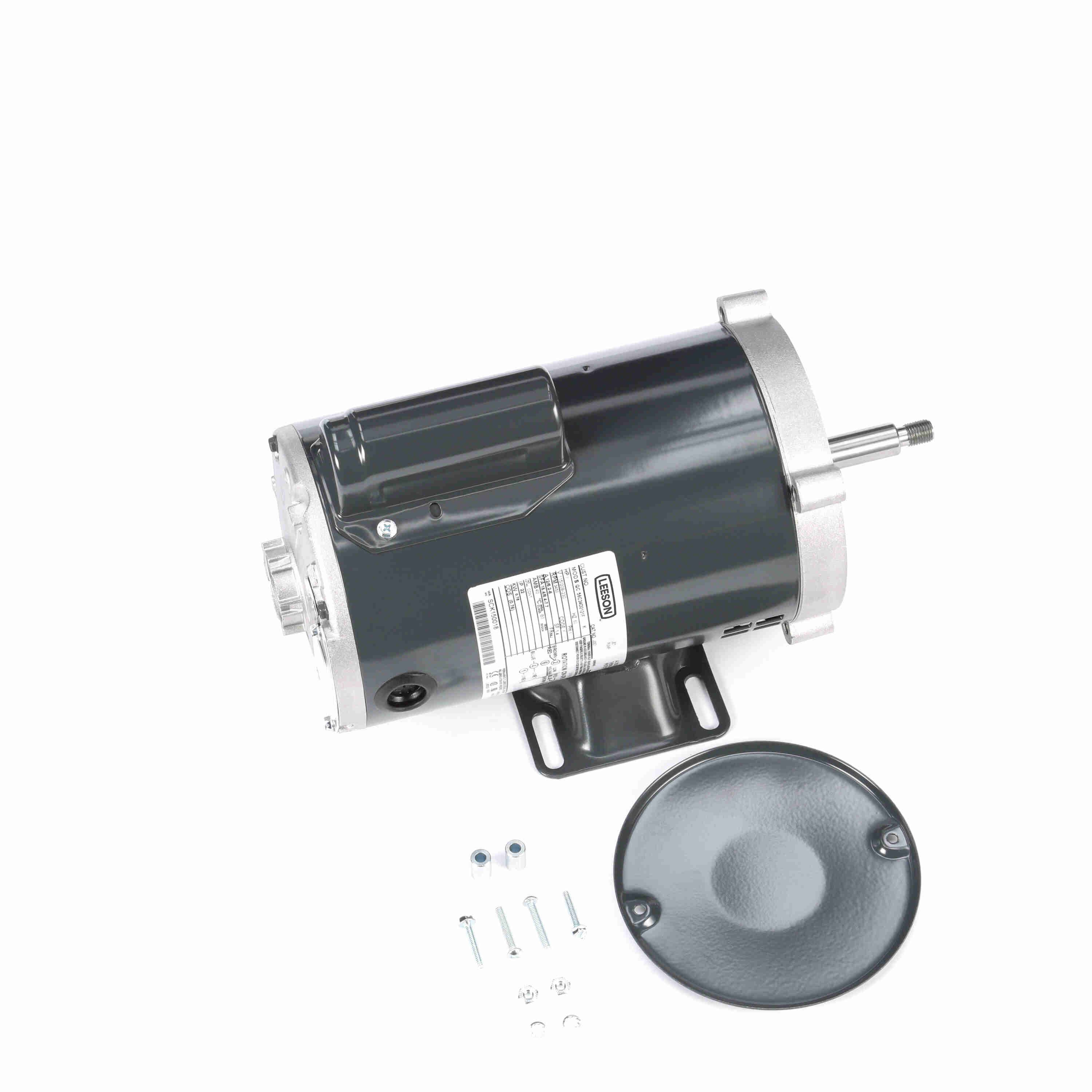

LEESON 056C34D2121 56C34D2121F / J057 General Purpose Pump Motor, 1 HP, 1 Phase, 60 Hz, 115/208-230V, 3600 RPM
Get it by Tuesday, May 19
5.00% off
€420.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pump Motor |
| Ambient (c) | 40 |
| Amps | 12/6-6.2A |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Body Dia. | 5 3/5" |
| Bolt Circle Dia. | 5 7/8" |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Design | Definite Duty |
| Duty Cycle | Continuous |
| Efficiency | N/A % |
| Efficiency | Not Applicable |
| Frame | 56J |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 12/6.2-6A |
| Height | 7 13/16" |
| Hp | 1 hp |
| Includes | Shaft Slinger, Drip Cover |
| Ins. Class | Class B |
| Length Less Shaft | 9 7/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal, Vertical Shaft Down |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1.4 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CW |
| Motor Thermal Protection | Automatic |
| Motor Type | Capacitor Start Induction Run |
| Mounting Type | Face, Base |
| Nameplate Rpm | 3450 RPM |
| Nema Design | None |
| Nominal Efficiency | 72% |
| Number Of Speeds | 1 |
| Orientation | Horizontal |
| Overall Length | 12 7/16" |
| Phase | 1 |
| Power | 0.75 kW |
| Service Factor | 1.4 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 5/8" |
| Shaft Material | Stainless Steel |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Details:
- Starting Type: CAP START IND RUN
- KVA Code: K
- Drive End Bearing: BALL
- IP Code: 22
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Motor Enclosure Design | Frame | Service Factor | Phase | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KC36JN269X | 115/230V AC | 1/2 hp | 3450 RPM | Open Dripproof | 56J | 1.6 | 1 | Automatic | €367.43 | |
 |
5KC39QN3219X | 115/208-230V AC | 3/4 hp | 3450 RPM | Open Dripproof | 56J | 1.5 | 1 | Automatic | €348.62 | |
 |
5KC39RN45X | 115/208-230V AC | 1 hp | 3450 RPM | Open Dripproof | 56J | 1.4 | 1 | Automatic | €400.65 | |
 |
5KC49NN2167X | 115/230V AC | 1 1/2 hp | 3450 RPM | Open Dripproof | 56J | 1.3 | 1 | Auto | €562.41 | |
 |
5KCR48TN2174T | 115/230V AC | 3 hp | 3450 RPM | Open Dripproof | 56J | 1.15 | 1 | Automatic | €1,098.27 | |
 |
5KC49TN2141X | 115/208-230V AC | 2 hp | 3450 RPM | Open Dripproof | 56C | 1.2 | 1 | Auto | €586.71 | |
 |
5KCR48TN2142T | 115/230V AC | 3 hp | 3450 RPM | Open Dripproof | 56C | 1.15 | 1 | Auto | €1,139.70 |
