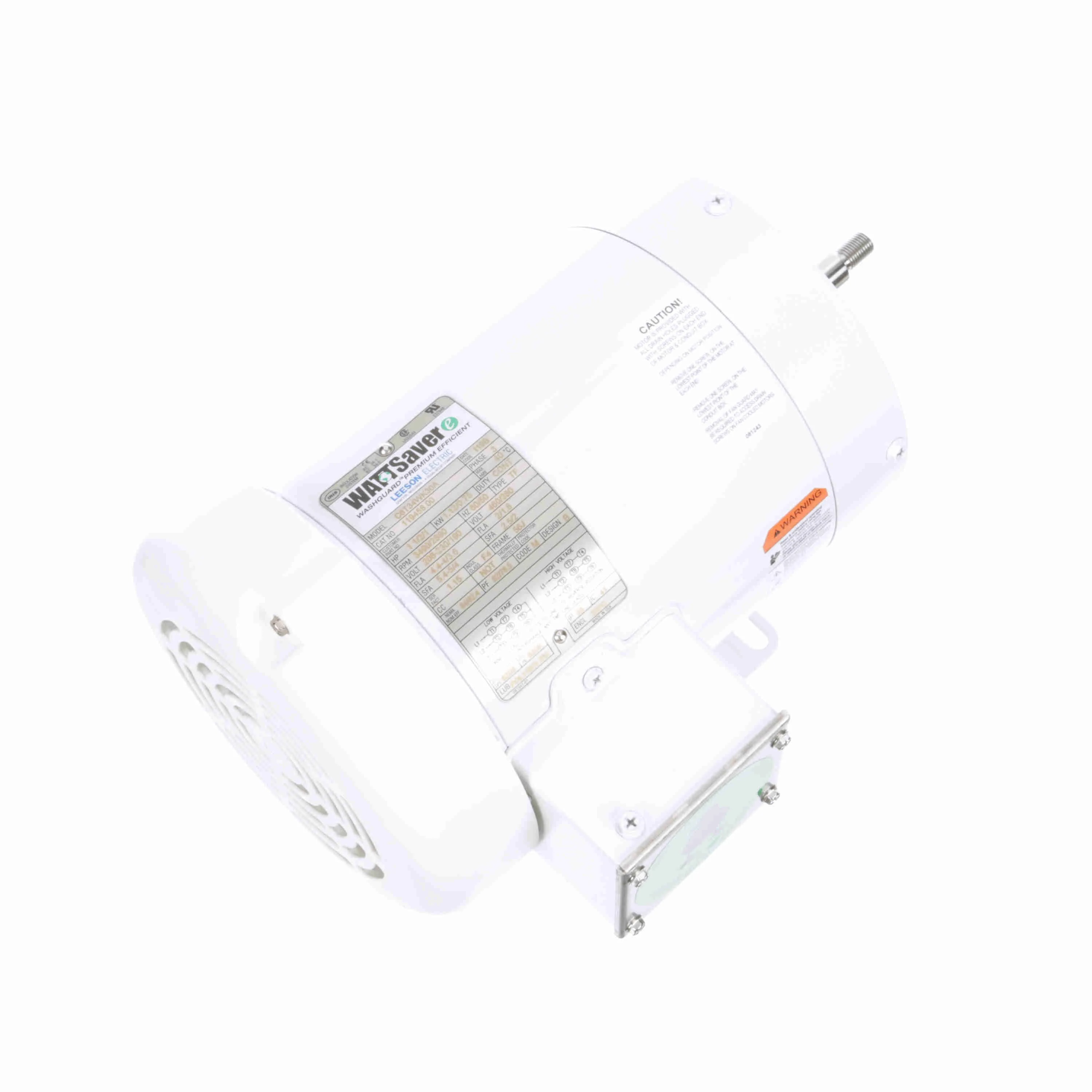

LEESON 119458.00 C6T34WK30A Jet Pump Motor, 1.50/1 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 3600 and 3000 RPM

Item: CR8PPQModel: 119458.00Cross Ref: 48ZF59 / C6T34WK30A

Check Availability

In Stock

Get it by Wednesday, Dec 24

~~€1,533.65~~

10.00% off

€1,380.29 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	170-264V AC
Ambient Temp.	40°C
Amps	4-4.4/2A
Bearing Type	Ball
Body Dia.	7.38"
Bolt Circle Dia.	5 7/8"
Cc Number	CC005A
Design Code	B
Drain Plug Location	Conduit Box, Each End
Drain Plugs	(4) Each End, (2) Conduit Box
Drive End Bearing Size	6205
Drive End Bearing Type	Ball
Duty Cycle	Continuous
Efficiency	84%
Electrical Type	Squirrel Cage, Inverter Rated
Enclosure Type	Tefc
Endshield Material	Cast Aluminum
Frame	56J
Frame Length	6 1/2"
Frame Material	Rolled Steel
Frame Type	56J
Frequency	60 Hz
Full Load Amps	4.4-4/2A
Height	10 22/25"
Hp	1 1/2 hp
Hz	50/60 Hz
Includes	Splice Kit
Ins. Class	Class F
Insulation Class	Class F
Ip Code	IP55
Kva Code	M
Kw	1.1 kW
Length	14 11/25"
Length Less Shaft	9 15/16"
Manufacturers Warranty Length	1 yr.
Max. Ambient Temp.	40°C
Max. Rpm	3490 RPM
Motor Application	Washdown
Motor Bearings	Ball
Motor Design	3-Phase
Motor Enclosure Design	Totally Enclosed Fan Cooled
Motor Frame Material	Steel
Motor Mounting Position	Horizontal
Motor Mounting Type	Face, Base
Motor Orientation	Horizontal
Motor Service Factor	1.15
Motor Shaft Design	Threaded
Motor Shaft Rotation	Clockwise Lead End
Motor Sub Application	Pool and Spa Pump
Motor Type	Three Phase
Mounting Type	Face/Base
Nameplate Rpm	3490 RPM
Nema Design	B
No. Of Drain Plugs	6
No. Of Poles	2
No. Of Speeds	1
Nominal Efficiency	84%
Opp. Drive End Bearing Size	6203
Opp. Drive End Bearing Type	Ball
Overall Length	12 7/8"
Phase	3
Power Factor	82
Product Type	Washdown Jet Pump Motor
Removable Base	No
Resistance Main	8.5 ohms
Rpm	3400-3600 RPM
Service Factor	1.15
Shaft Dia.	5/8"
Shaft Length	2 14/25"
Shaft Material	Stainless Steel
Shaft Type	J
Standards	Bissc, Ce, Csa, Ul
Starting Method	Line Or Inverter
Thermal Protection	No Protection
Usable @ 200v	No
Usable @ 208v	Yes
Voltage	208-230/460V
Weight	45 lbs.
Width	10 11/25"

Shipping Info:

Ship weight (kg)	20.25
Ship height (cm)	27.64
Ship length (cm)	36.68
Ship width (cm)	26.52
Country of Origin	US

Product Variants

Model	Voltage	Nameplate Rpm	Hp	Full Load Amps	Service Factor	Phase	Mounting Type	Motor Type	Price
116466.00	208-230/460V	1725 RPM	33/100 hp	0.65A	1.15	3	Face/Base	Three Phase	€1,321.26
122197.00	208-230/460V	1745 RPM	2 hp	2A	1.15	3	Rigid Base	Three Phase	€2,541.76
141427.00	230V	1750 RPM	7 1/2 hp	26.4/13.2A	1.15	3	Rigid Base	Three Phase	€1,864.33
119462.00	208-230/460V	3490 RPM	3 hp	8.8-8/4A	1.15	3	Face	Three Phase	€1,599.38
141358.00	230/460V	3495 RPM	15 hp	35/17.6A	1.15	3	Rigid Base	Three Phase	€5,484.32
141275.00	230/460V	3525 RPM	10 hp	23.6/11.8A	1.15	3	Rigid Base	Three Phase	€7,441.39
141273.00	230/460V	1765 RPM	7 1/2 hp	19.6/9.8A	1.15	3	Rigid Base	Three Phase	€4,624.15
