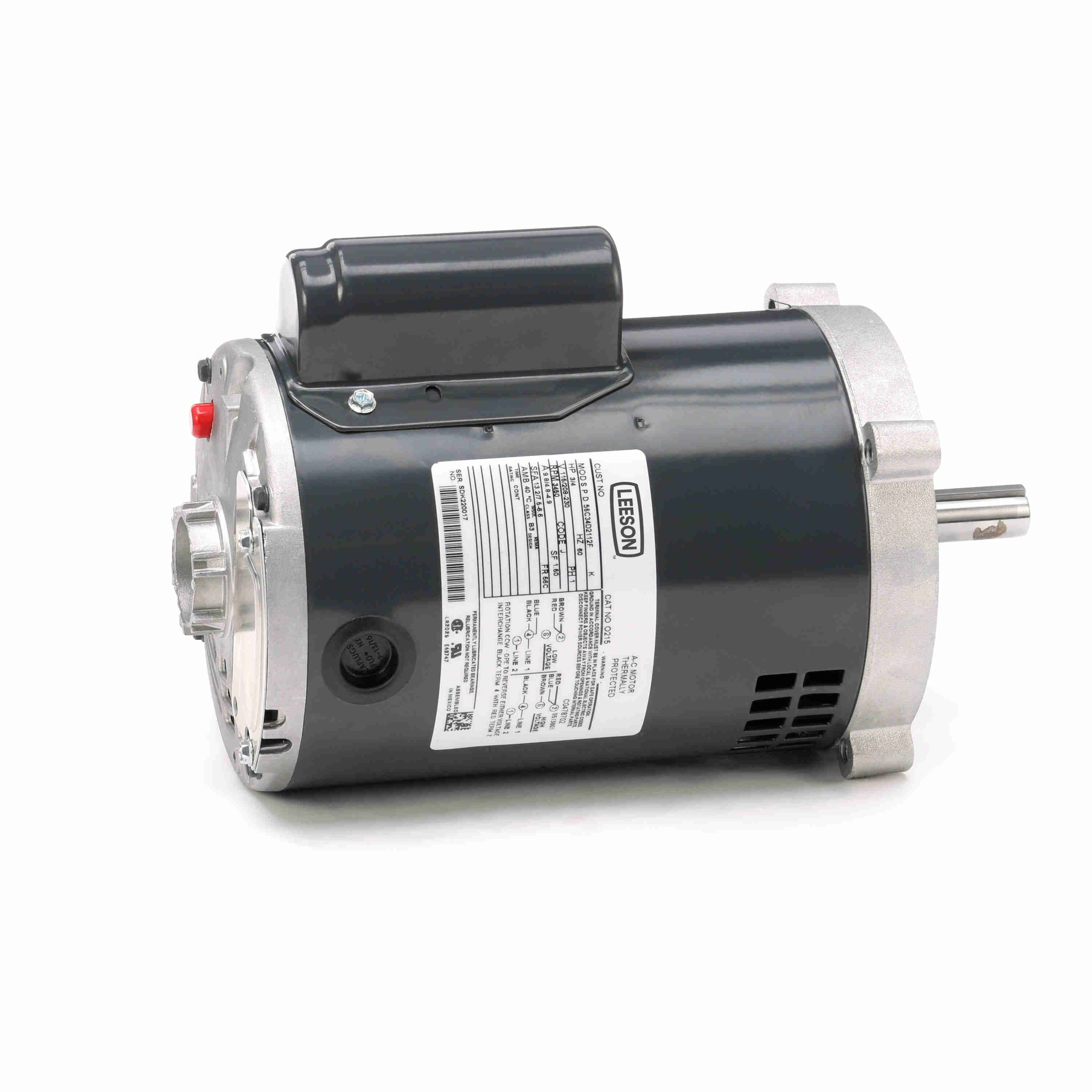

LEESON 056C34D2112 O215 / 56C34D2112F Fan and Blower Motor, 0.75 HP, 1 Phase, 60 Hz, 115/208-230V, 3600 RPM
Get it by Friday, Dec 19
€357.45 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Oil Burner Motor |
| Ambient (c) | 40 |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | N/A % |
| Efficiency | Not Applicable |
| Frame | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 9.8/4.8-4.9A |
| Hp | 3/4 hp |
| Insulation Class | Class B |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | C Face, Footless |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 3450 RPM |
| Nema Design | Definite Duty |
| Number Of Speeds | 1 |
| Output Kw | 0.56 kW |
| Phase | 1 |
| Power | 0.56 kW |
| Rpm | 3600 RPM |
| Service Factor | 1.5 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.06" |
| Thermal Protection | Manual |
| Voltage | 115/208-230V |
Shipping Info:
| Ship weight (kg) | 8.1 |
| Ship height (cm) | 20.47 |
| Ship length (cm) | 31.6 |
| Ship width (cm) | 23.19 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Details:
- Starting Type: CAP START IND RUN
- KVA Code: J
- Drive End Bearing: BALL
- IP Code: 22
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Voltage | Hp | Motor Mounting Type | Motor Thermal Protection | Motor Sub Application | Motor Mounting Position | Motor Shaft Rotation | Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KC39RN44X | 115/208-230V | 1 hp | Face | Automatic | Jet Pump | All Angle | CW/CCW | Automatic | €389.56 | |
 |
5KC49TN2141X | 115/208-230V AC | 2 hp | Face | Auto | Jet Pumps | All Angle | CW/CCW | Automatic | €586.71 | |
 |
5KCR48TN2142T | 115/230V AC | 3 hp | Face | Auto | Jet Pumps | All Angle | CW/CCW | Automatic | €1,139.70 | |
 |
5KC36JN268X | 115/230V AC | 1/2 hp | Face | Automatic | Jet Pump | All Angle | CW/CCW | Automatic | €320.32 | |
 |
5KC37FN71X | 115/230V AC | 1/3 hp | Face | Automatic | Jet Pump | All Angle | CW/CCW | Automatic | €269.17 | |
 |
056C34D2105 | 115/208-230V AC | - | C Face, Footless | Manual | - | Horizontal | CCW | Manual | €550.48 | |
 |
056C34D2099 | 115/208-230V AC | 1/2 hp | C Face, Footless | Manual | - | Horizontal | CCW | Manual | €308.67 |
