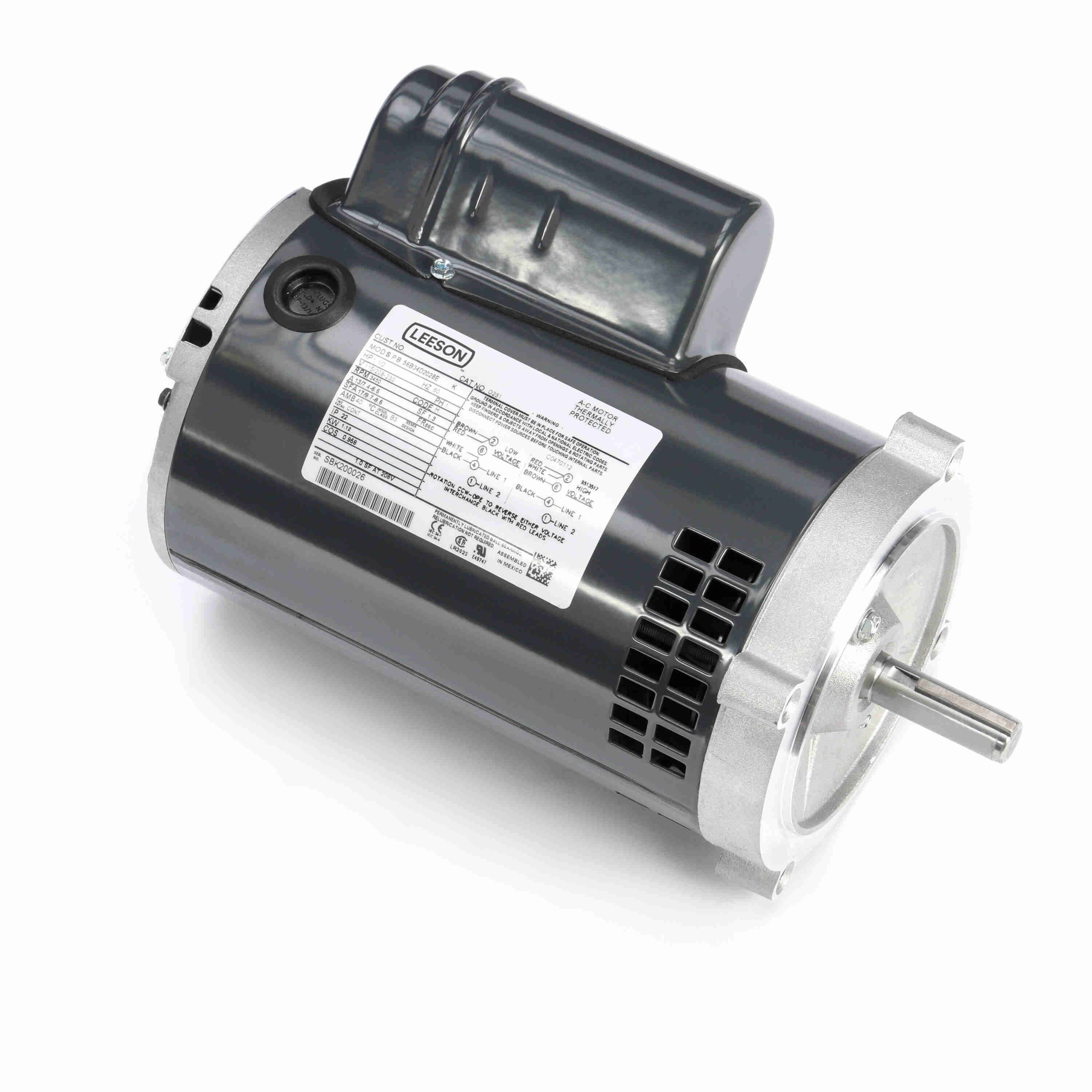

LEESON 056B34D2028 O231 / 56B34D2028E Fan and Blower Motor, 1.50 HP, 1 Phase, 60 Hz, 115/208-230V, 3600 RPM
Get it by Monday, Dec 22
10.00% off
€669.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Oil Burner Motor |
| Ambient (c) | 40 |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | N/A % |
| Efficiency | Not Applicable |
| Frame | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 13.4/7.4-6.7A |
| Hp | 1 1/2 hp |
| Insulation Class | Class B |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | C Face, Footless |
| Motor Shaft Rotation | Selective CCW |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 3450 RPM |
| Nema Design | No Design Code |
| Number Of Speeds | 1 |
| Output Kw | 1.12 kW |
| Phase | 1 |
| Power | 1.12 kW |
| Rpm | 3600 RPM |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | Manual |
| Voltage | 115/208-230V |
Shipping Info:
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Details:
- Starting Type: CAP START CAP RUN
- KVA Code: H
- Drive End Bearing: BALL
- IP Code: 22
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Voltage | Hp | Motor Mounting Type | Motor Thermal Protection | Motor Sub Application | Motor Mounting Position | Motor Shaft Rotation | Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

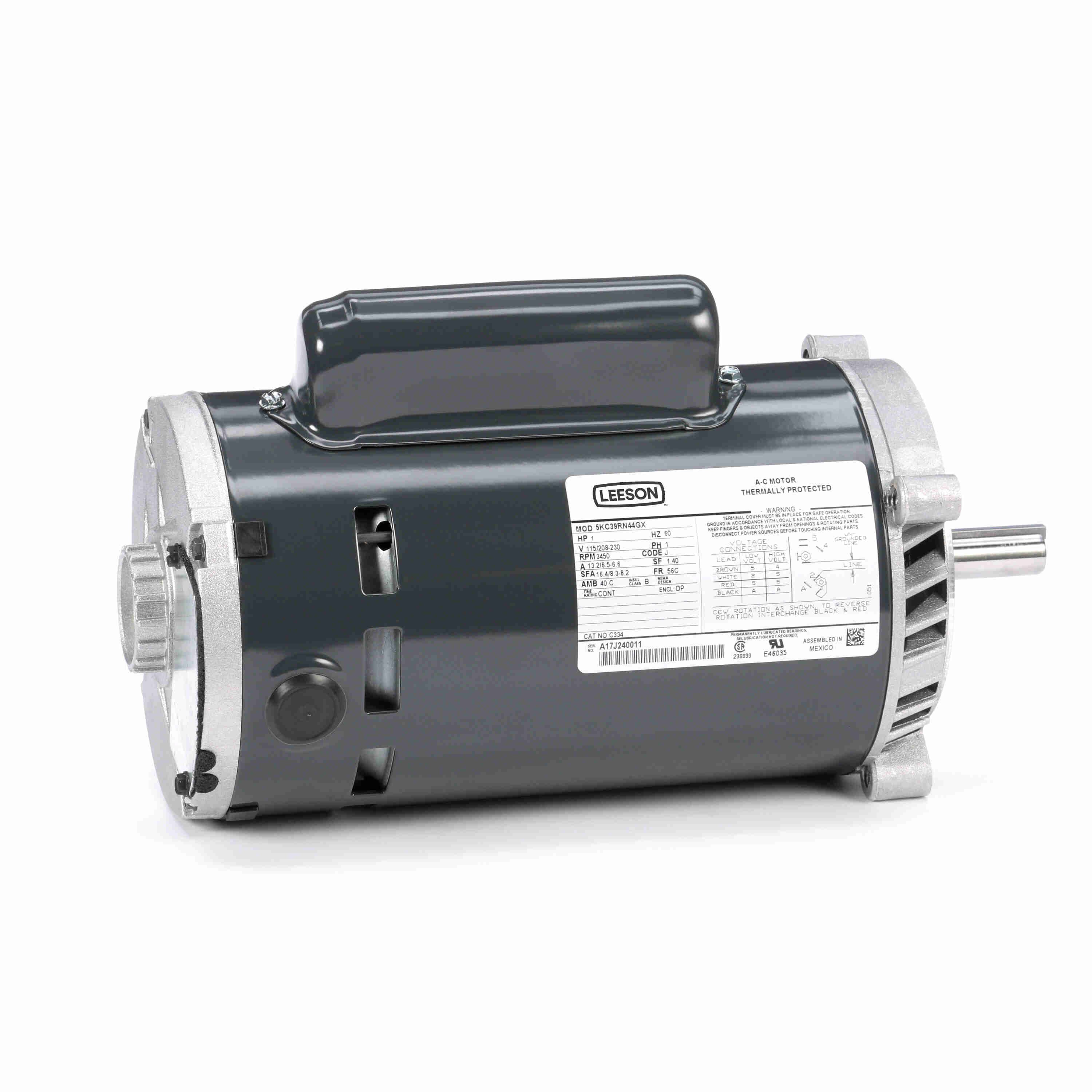

5KC39RN44X | 115/208-230V | 1 hp | Face | Automatic | Jet Pump | All Angle | CW/CCW | Automatic | €389.56 | |
 |
5KC49TN2141X | 115/208-230V AC | 2 hp | Face | Auto | Jet Pumps | All Angle | CW/CCW | Automatic | €586.71 | |
 |
5KCR48TN2142T | 115/230V AC | 3 hp | Face | Auto | Jet Pumps | All Angle | CW/CCW | Automatic | €1,139.70 | |
 |

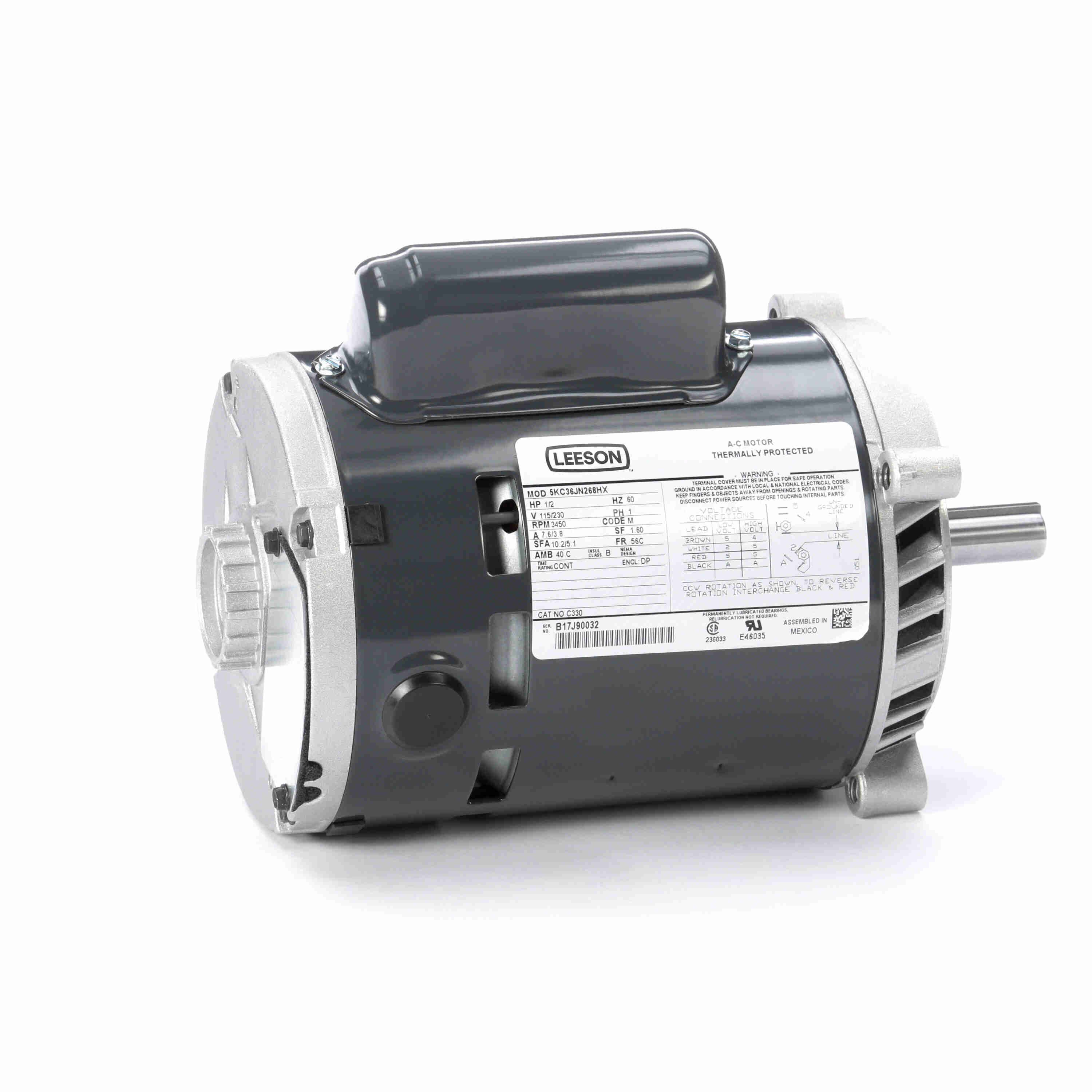

5KC36JN268X | 115/230V AC | 1/2 hp | Face | Automatic | Jet Pump | All Angle | CW/CCW | Automatic | €320.32 | |
 |

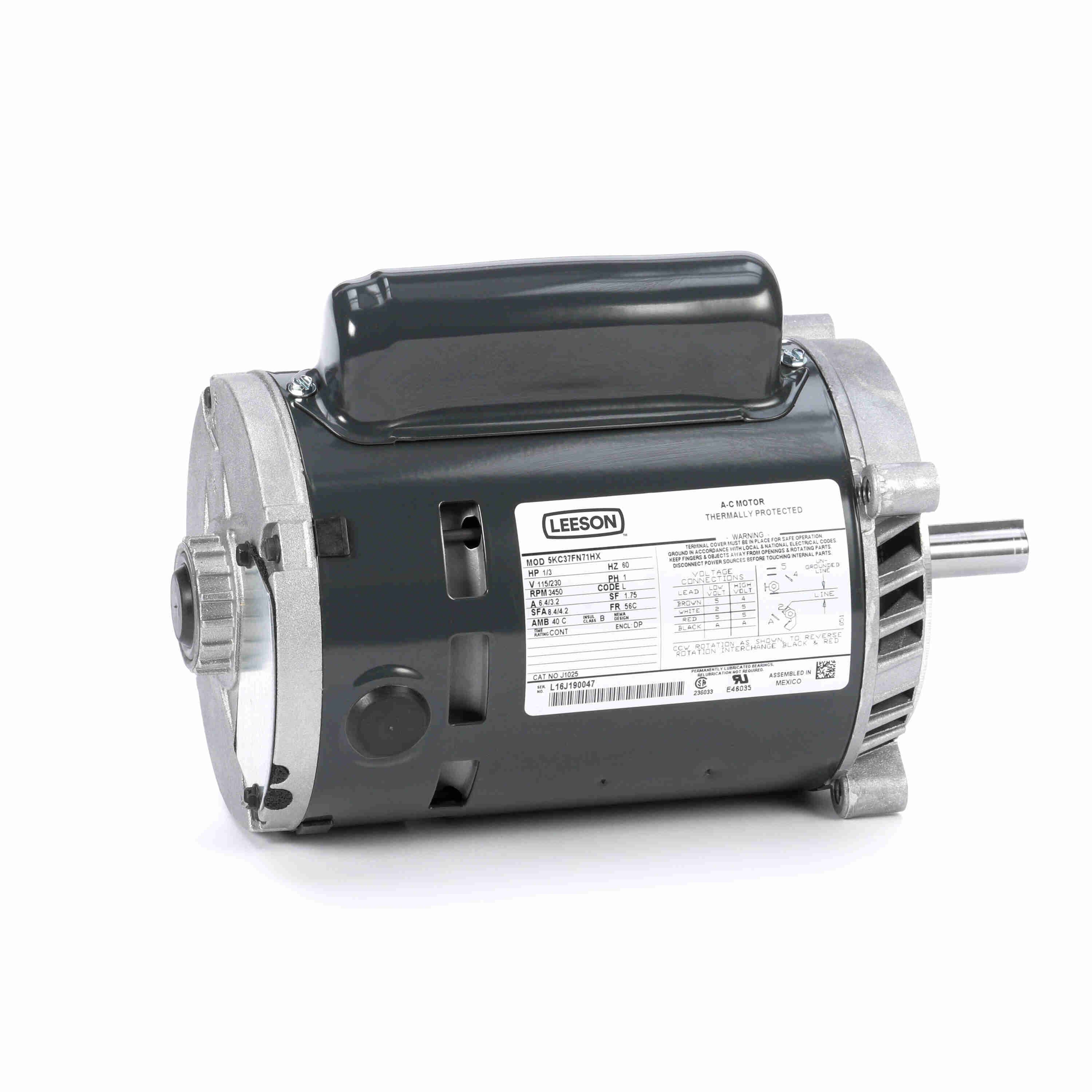

5KC37FN71X | 115/230V AC | 1/3 hp | Face | Automatic | Jet Pump | All Angle | CW/CCW | Automatic | €269.17 | |
 |

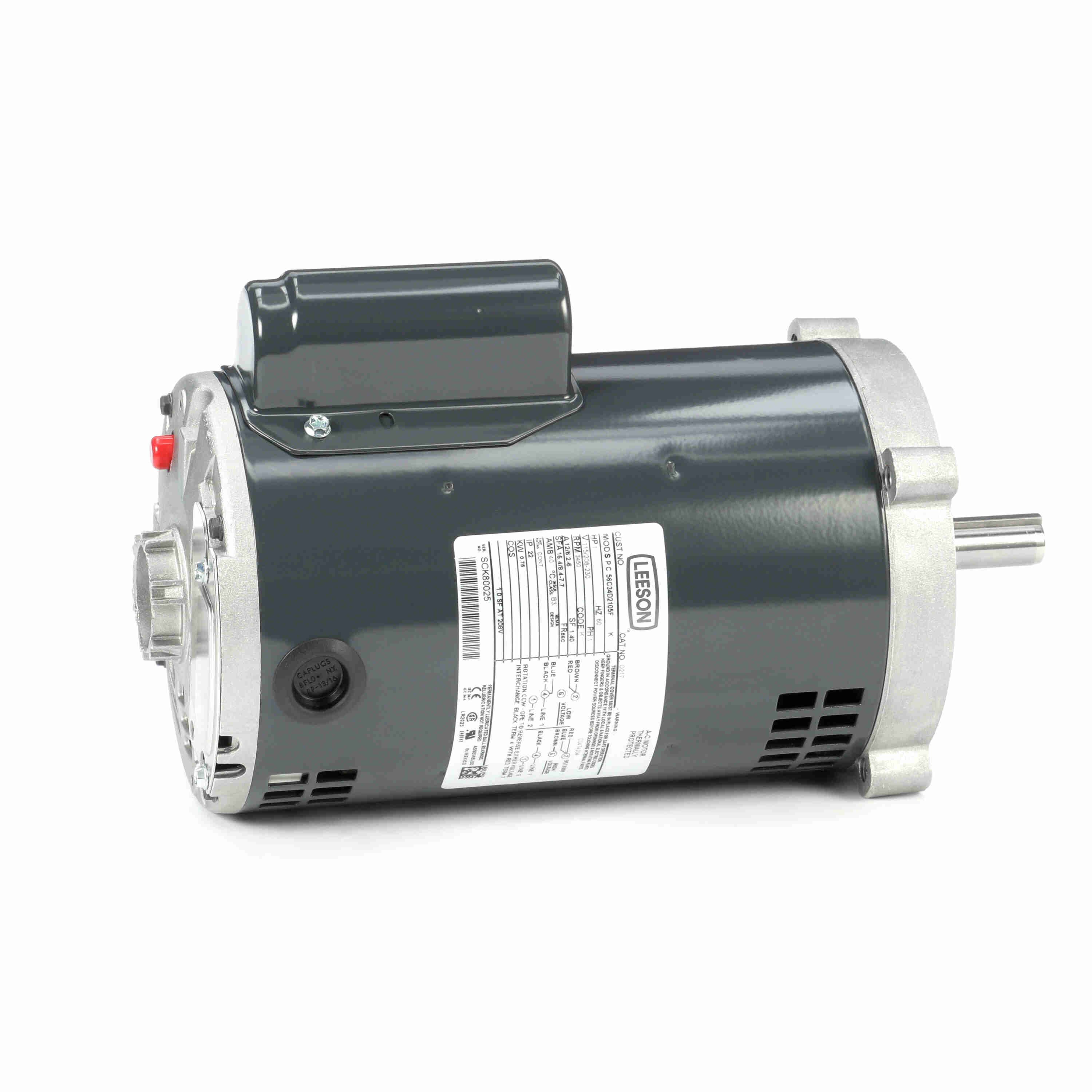

056C34D2105 | 115/208-230V AC | - | C Face, Footless | Manual | - | Horizontal | CCW | Manual | €550.48 | |
 |

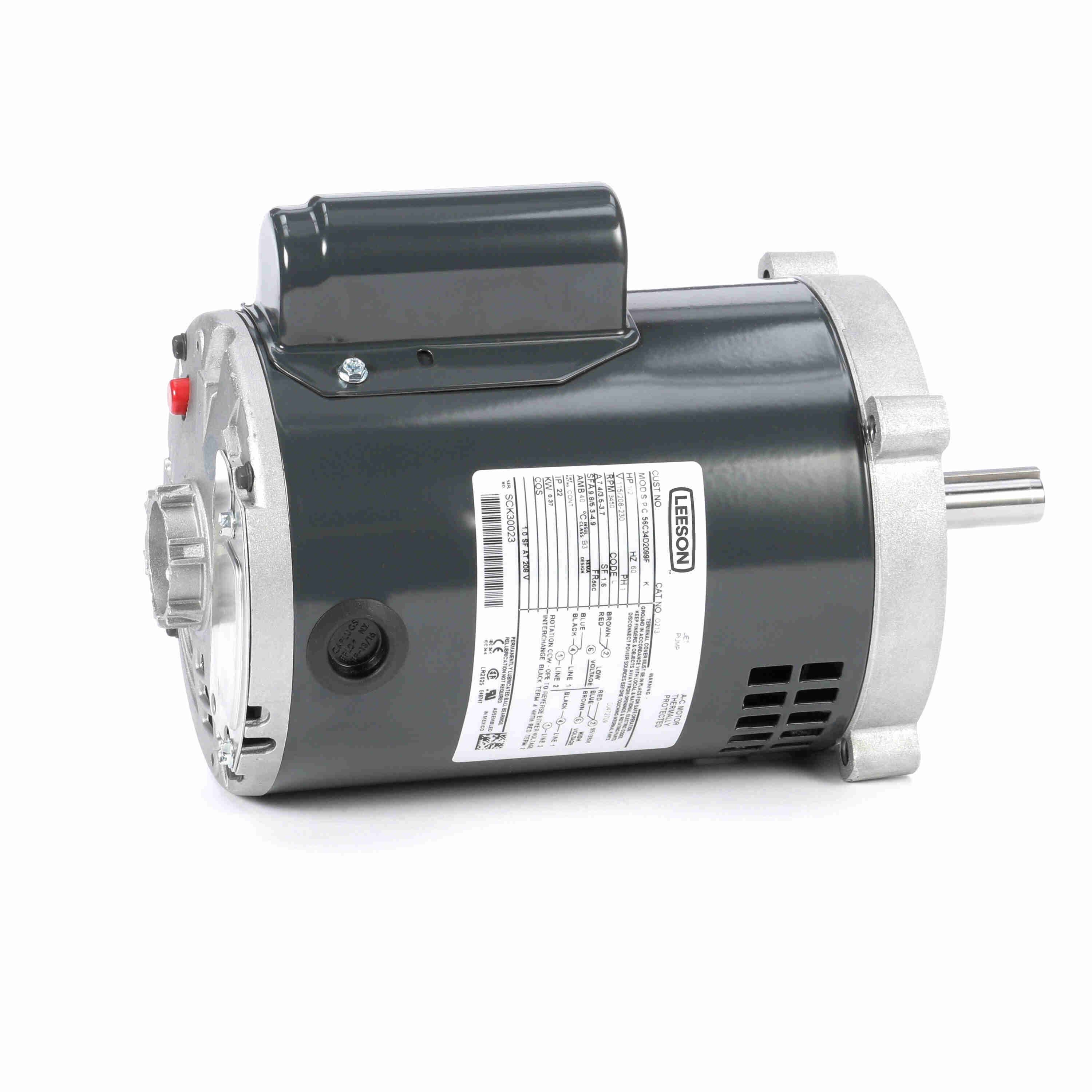

056C34D2099 | 115/208-230V AC | 1/2 hp | C Face, Footless | Manual | - | Horizontal | CCW | Manual | €308.67 |
