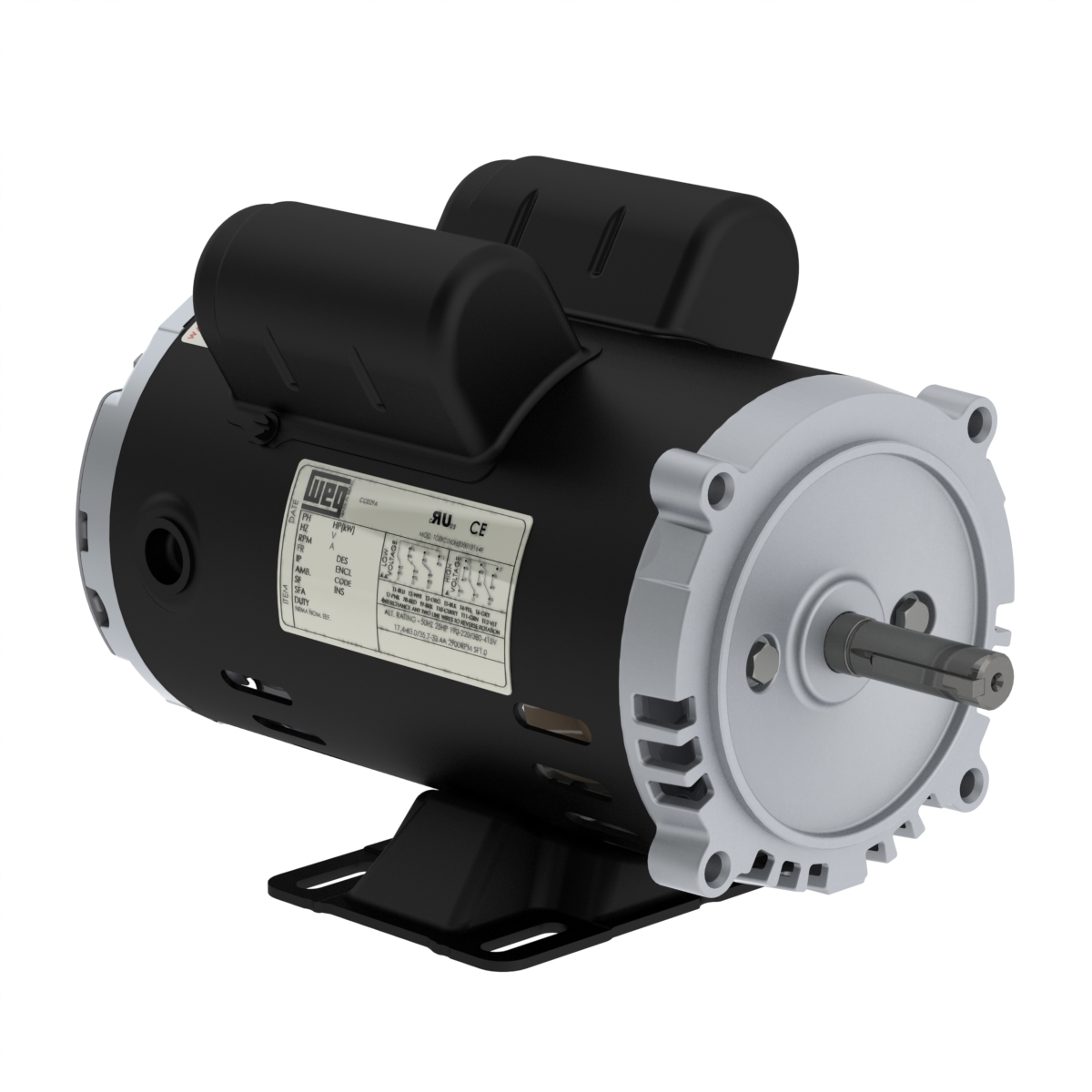

WEG .3336OT1BW56C-S 13989128 Electric Motor, 1/3Hp, 60Hz, 3600 Rpm

Item: BB9YHCModel: .3336OT1BW56C-SCross Ref: 13989128

Check Availability

In Stock

Get it by Monday, Dec 22

€340.03 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	General Purpose Motor
Altitude	1000 MASL
Ambient Temp.	-20°C to +40°C
Balancing Method	Not Balanced
Bearing Cap	Yes
Bolt Material	Carbon Steel
Break-down Torque	300%
Cold Locked Rotor Time	27 sec.
Composition	Steel
Design	N
Drip Cover	Without
Duty Cycle	S1
Efficiency At 1 %	97%
Efficiency At 50 %	97%
Efficiency At 75 %	97%
Enclosure Type	ODP
Fan Cover Material	Without Fan Cover
Fan Material	Without Fan
Flange Type	C
Frame	W56C
Frame Material	Rolled Steel
Frequency	60 Hz
Grounding Lugs	Single
Hot Locked Rotor Time	15 sec.
Hp	1/3 hp
Impregnation Method	Dip And Bake Polyester
Insulation Class	Class F
L. R. Amps	28.2/15.6-14.1A
Locked Rotor Torque	280%
Lrc	8.8X(Code L)
Moment Of Inertia	0.0254 lbs.-sq. ft.
Motor Enclosure Design	Open Dripproof
Motor Speed	3510 RPM
Mounting	Foot Mounted
No Load Amps	1/0.431-0.5A
No. Of Poles	2
Noise Level	56 dBA
Output	1/3 hp
Output Rating	1/3 hp
Overload Protector	Without Overload Protector
Painting	Only Primer
Phase	1
Power Factor At 1 %	70.5
Power Factor At 50 %	56
Power Factor At 75 %	64
Rated Current	3.2/1.77-1.6A
Rated Torque	0.494 lbs.-ft.
Rated Voltage	115/208-230V AC
Resilient Base	Without
Rotation	CW/CCW
Rpm	3400-3600 RPM
Service Factor	1.35
Shaft Material	Carbon Steel
Shaft Material Grade	Grade 1040/45
Ships Factory Direct	No
Slip	2.5%
Starting Method	Direct On Line
Synchronous Speed	3600 RPM
Temp. Rise	80 K
Terminal Box	Without Terminal Box
Tropicalized Painting	Without
Voltage	115/208-230V AC

Shipping Info:

Ship weight (kg)	12.15
Ship height (cm)	2.54
Ship length (cm)	2.54
Ship width (cm)	2.54
Country of Origin	MX

Product Variants

Model	Voltage	Service Factor	Hp	Frame	Duty Cycle	No. Of Poles	Synchronous Speed	No Load Amps	Price
.5018OT1BW56C-S	115/208-230V AC	1.25	1/2 hp	W56C	S1	4	1800 RPM	2.7/1.16-1.35A	€399.67
.1636OS1B48CH-S	115/208-230V	1.35	1/6 hp	48	Continuous	2	3600 RPM	2.4/1.03-1.2A	€275.29
.5036OT1B48CH-S	115/208-230V AC	1.25	1/2 hp	48	S1	2	3600 RPM	1.6/0.69-0.8A	€335.08
00236OT1B56C-S	115/208-230V AC	1.15	2 hp	56C	S1	2	3600 RPM	5/2.16-2.5A	€612.05
.2536OT1B48CH-S	115/208-230V AC	1.35	1/4 hp	48	S1	2	3600 RPM	1/0.431-0.5A	€309.38
00158OT1B56C-S	115/208-230V AC	1.15	1 1/2 hp	56HC	S1	4	1800 RPM	4.6/1.98-2.3A	€657.39
.1218OS1B48CH-S	115/208-230V AC	1.4	1/2 hp	48	S1	4	1800 RPM	2.6/1.12-1.3A	€264.93
