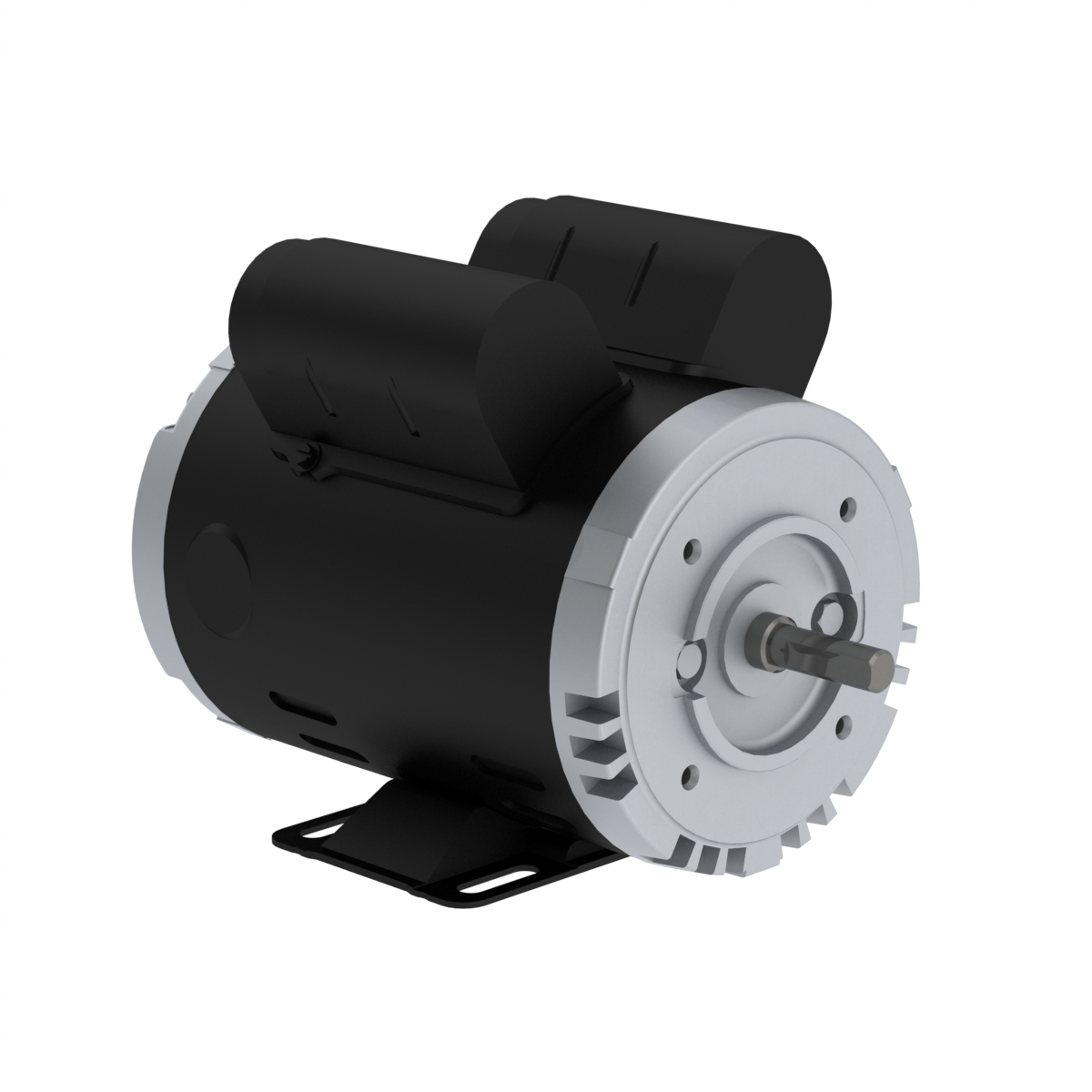

WEG .3336OT1B48CH-S Electric Motor, 1/3Hp, 60Hz, 3600 Rpm | BB9ZDZ

WEG .3336OT1B48CH-S 14419288 General Purpose Motor, ODP RolLED Steel 48 Frame, 0.33 HP, 3510 RPM, 115/208-230 V With Bearing Cap

Item: BB9ZDZModel: .3336OT1B48CH-SCross Ref: 14419288
Check Availability
In Stock

Get it by Tuesday, Apr 7

€314.98 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method Not Balanced
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 300%
Breakdown Torque 300%
Cold Locked Rotor Time 27 sec.
Composition Steel
Design N
Drip Cover Without
Duty Cycle S1
Efficiency @ 100% 70.5%
Efficiency @ 50% 56%
Efficiency @ 75% 64%
Efficiency At 1 % 97%
Efficiency At 50 % 97%
Efficiency At 75 % 97%
Enclosure IC01
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange C Superior Size
Flange Type C
Frame 48
Frame Material Rolled Steel
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 15 sec.
Hp 1/3 hp
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 28.2/15.6-14.1A
L.r. Amperes 14.1-15.6/28.2A
Locked Rotor Time (cold) 27 sec.
Locked Rotor Time (hot) 15 sec.
Locked Rotor Torque 280%
Lrc 8.8X(Code L)
Moment Of Inertia 0.0254 lbs.-sq. ft.
Moment Of Inertia (j) 0.0254 lbs.-sq. ft.
Motor Enclosure Design Open Dripproof
Motor Speed 3510 RPM
Mounting F-1 , Foot Mounted
No Load Amps 0.431-0.5/1A , 1/0.431-0.5A
No. Of Poles 2
Noise Level 56 dBA
Output 1/3 hp
Output Rating 0.33 hp , 1/3 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting Only Primer
Phase 1
Power Factor 50% 0.97
Power Factor 75% 0.97
Power Factor At 1 % 70.5
Power Factor At 50 % 56
Power Factor At 75 % 64
Power Factor_100% 0.97
Rated Current 1.6-1.77/3.2A , 3.2/1.77-1.6A
Rated Speed 3510 RPM
Rated Torque 0.494 lbs.-ft.
Rated Voltage 115/208-230V , 115/208-230V AC
Resilient Base Without
Rotation CW/CCW
Rpm 3400-3600 RPM
Service Factor 1.35
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.5%
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Box Without Terminal Box
Tropicalized Painting Without
Voltage 115/208-230V AC

Shipping Info:

Ship weight (kg) 10.8
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
