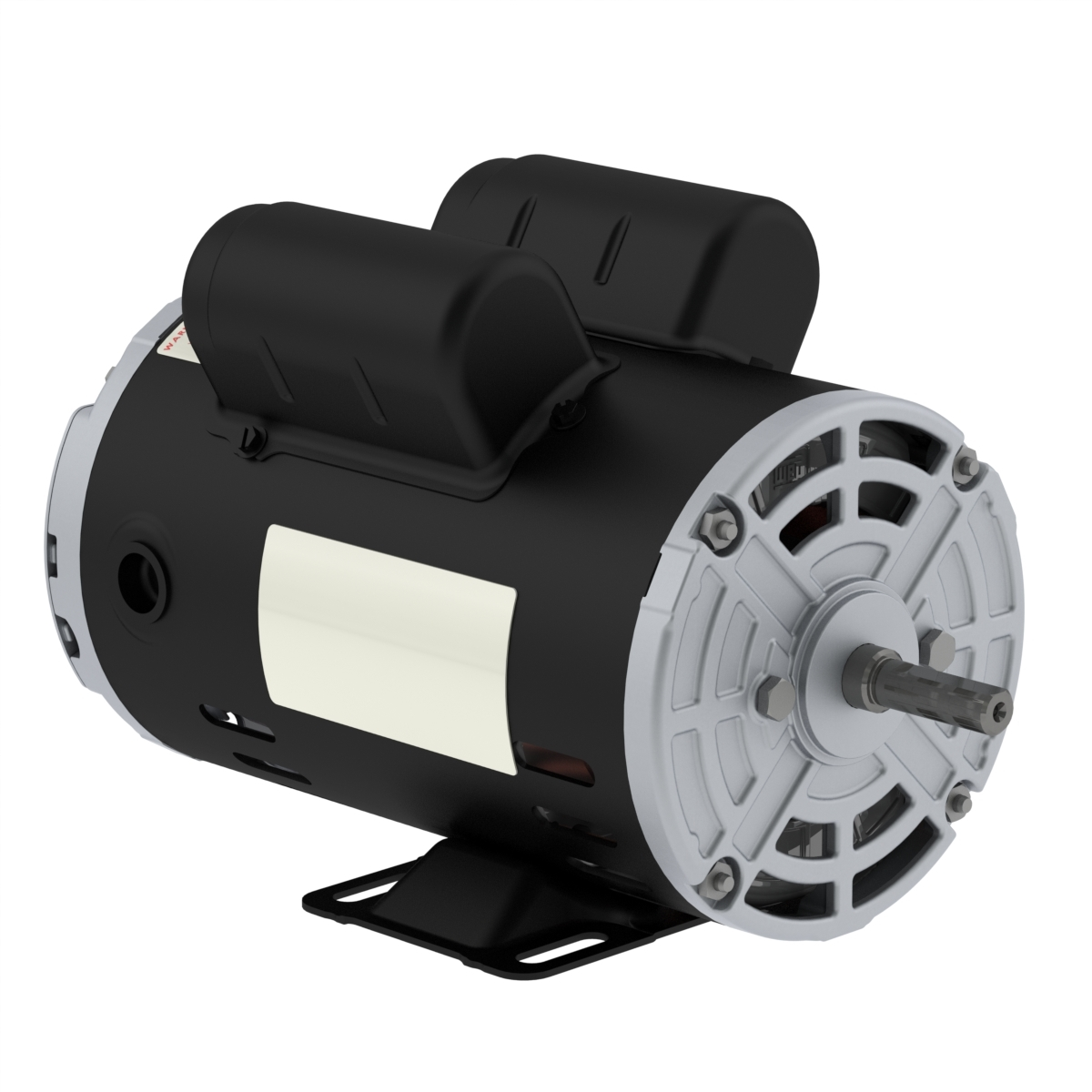

WEG .3336OT1B48-S Electric Motor, 1/3Hp, 60Hz, 3600 Rpm | BC2JRL

WEG .3336OT1B48-S 13645808 General Purpose Motor, ODP RolLED Steel 48 Frame, 0.33 HP, 3510 RPM, 115/208-230 V Without Bearing Cap

Item: BC2JRLModel: .3336OT1B48-SCross Ref: 13645808
Check Availability
In Stock

Get it by Tuesday, Feb 17

€305.42 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method Not Balanced
Bearing Cap No
Bolt Material Carbon Steel
Break-down Torque 300%
Cold Locked Rotor Time 27 sec.
Composition Steel
Design N
Drip Cover Without
Duty Cycle S1
Efficiency At 1 % 97%
Efficiency At 50 % 97%
Efficiency At 75 % 97%
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange Type Without
Frame 48
Frame Material Rolled Steel
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 15 sec.
Hp 1/3 hp
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 28.2/15.6-14.1A
Locked Rotor Torque 280%
Lrc 8.8X(Code L)
Moment Of Inertia 0.0254 lbs.-sq. ft.
Motor Enclosure Design Open Dripproof
Motor Speed 3510 RPM
Mounting Foot Mounted
No Load Amps 1/0.431-0.5A
No. Of Poles 2
Noise Level 56 dBA
Output 1/3 hp
Output Rating 1/3 hp
Overload Protector Without Overload Protector
Painting Only Primer
Phase 1
Power Factor At 1 % 70.5
Power Factor At 50 % 56
Power Factor At 75 % 64
Rated Current 3.2/1.77-1.6A
Rated Torque 0.494 lbs.-ft.
Rated Voltage 115/208-230V AC
Resilient Base Without
Rotation CW/CCW
Rpm 3400-3600 RPM
Service Factor 1.35
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.5%
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Box Without Terminal Box
Tropicalized Painting Without
Voltage 115/208-230V AC

Shipping Info:

Ship weight (kg) 11.7
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginMX

Product Variants

ProductModelVoltageService FactorHpNameplate RpmFull Load AmpsFrameRpmSynchronous SpeedPrice
WEG 00118OT1B56-S General Purpose Motor, Open Dripproof, Rigid Base Mount, 1 HP, 1750 RPM, 115/208-230V AC | CL4YFP 00118OT1B56-S115/208-230V AC1.151 hp1750 RPM90/4.98-4.5A561700-1800 RPM1800 RPM€549.90
WEG 00218OT1B56-S Electric Motor, 2Hp, 60Hz, 1800 Rpm | BA9YFZ 00218OT1B56-S115/208-230V AC1.15---56H1700-1800 RPM1800 RPM€746.87
WEG 00536OS1DCD56HZ-S Electric Motor, 5Hp, 3600 Rpm | BB3QMR 00536OS1DCD56HZ-S230V AC15 hp--56HZ3400-3600 RPM3600 RPM€573.87
WEG 00718OS1F215T Electric Motor, 7 1/2Hp, 60Hz, 1800 Rpm | BB6HVK 00718OS1F215T230/460V1.157 1/2 hp--213/5T1700-1800 RPM1800 RPM€1,146.55
WEG 00236OT1B56-S Electric Motor, 2Hp, 60Hz, 3600 Rpm | BB8FNE 00236OT1B56-S115/208-230V AC1.152 hp--56H3400-3600 RPM3600 RPM€578.65
WEG .7518OT1B56-S Electric Motor, 3/4Hp, 60Hz, 1800 Rpm | BB8NZD .7518OT1B56-S115/208-230V AC1.25---561700-1800 RPM1800 RPM€461.73
WEG .5018OT1B48-S Electric Motor, 1/2Hp, 60Hz, 1 Rpm | BB8VFW .5018OT1B48-S115/208-230V AC1.251/2 hp1730 RPM4.86/34-2.43A481700-1800 RPM1800 RPM€422.40
