WEG 01536ET3V254JP-W22 Electric Motor, 15Hp, 60Hz, 3600 Rpm | BC2DFA

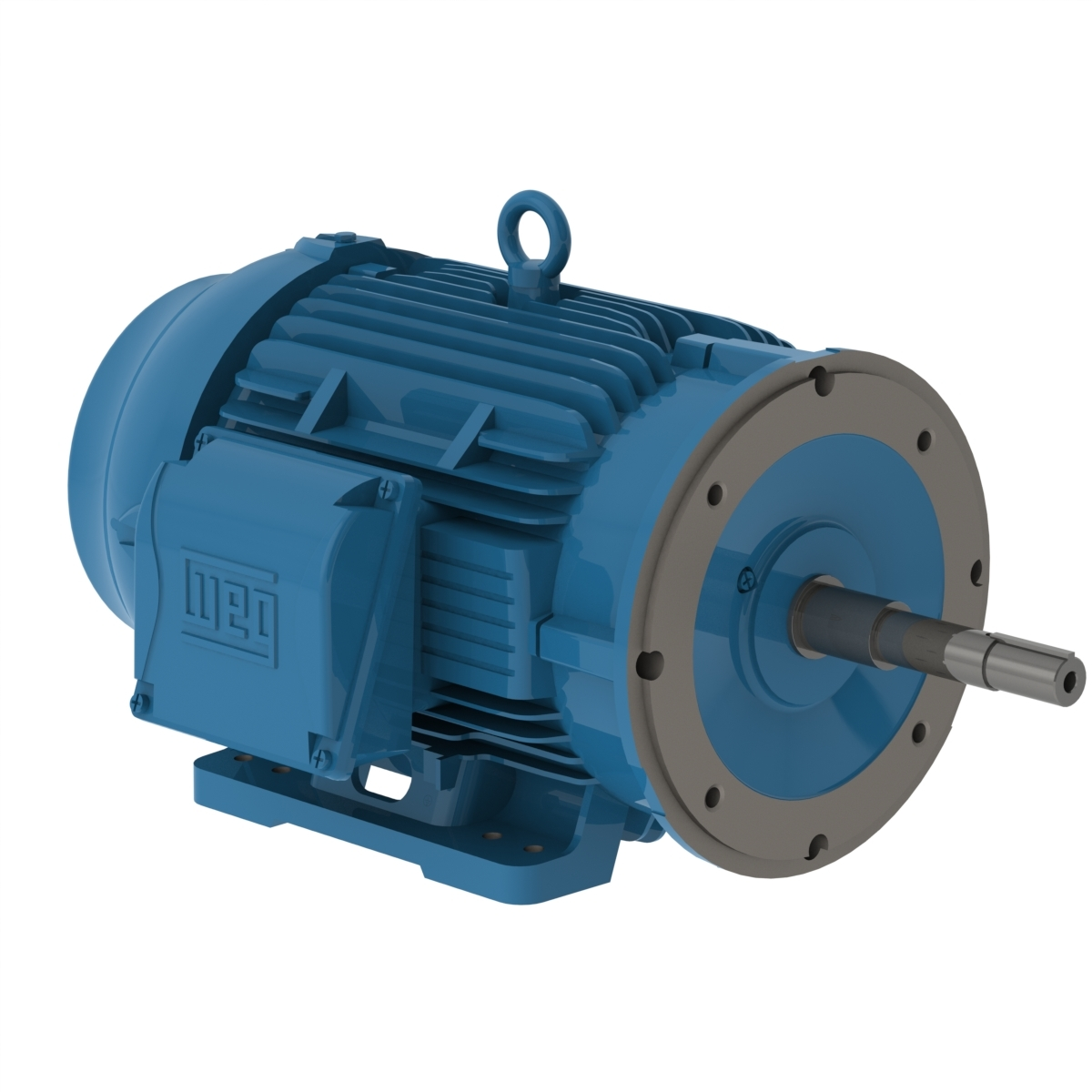

WEG 01536ET3V254JP-W22 14318123 Pump Motor, 15 HP, 3600 RPM, 200/400V, 12.2/6.10 A No Load Current, TEFC, 254JP, Footed, Close CoupLED Pump

Item: BC2DFAModel: 01536ET3V254JP-W22Cross Ref: 14318123
Check Availability
In Stock

Get it by Tuesday, Sep 1

€3,039.19 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Close-Coupled Pump Motor
Altitude 1000 m.a.s.l.
Ambient Temp. -20°C to +40°C
Balancing Method 1/2 Key
Bearing Cap Yes
Cold Locked Rotor Time 36 sec.
Connection Cables Quantity 12
De Bearing Seal V Ring
Degree Of Protection IP55
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle Cont.(S1)
Enclosure IC411
Enclosure Rating IC411
Enclosure Type Tefc
Fan Cover Material Cast Iron
Fan Material Plastic
Flange C
Frame 254JP
Frame Material Cast Iron
Frame Size 254JP
Frequency 60 Hz
Grade Grade 1010/20
Grounding Lugs Type Single
Impregnation Method Dip And Bake Polyester
Insulation Class F
Locked Rotor Time(hot) 20 sec.
Lrc 6.7x(Code G)
Main Terminal Box Hole Type NPT
Material Carbon Steel
Mounting F-1
Nde Bearing Seal V Ring
No. Of Poles 2
Output Rating 15 hp
Overload Protector (phenolic) Without Overload Protector
Painting Only Primer
Phase 3
Product Datasheet weg-01536et3v254jp-w22.pdf
Pump Seal Gasket
Regreasing System At Drive End And Non-Drive End
Replaces 01536EP3V254JP-W22
Rotation CW And CCW
Shaft Material SAE 1040/45 Carbon Steel
Speed 3400-3600 RPM
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 200/400V

Shipping Info:

Ship weight (kg) 132.3
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Documentation:

Datasheet

Product Variants

ProductModelVoltageFrequencyHpService FactorMotor Enclosure DesignFull Load AmpsMotor TypeMounting TypePrice
WEG 01836ET3Y160LFF-W22 Metric Motor, 25Hp, 230/460v Cw / Ccw | AA2GEN 10G894 01836ET3Y160LFF-W22460V50 Hz25 hp1.25Totally Enclosed Fan Cooled29.9A-Face, Base€5,367.05
WEG 03736ET3Y200LFF-W22 Metric Motor, 50Hp, 230/460v Cw / Ccw | AA2GEY 10G904 03736ET3Y200LFF-W22460V60 Hz50 hp1.25Totally Enclosed Fan Cooled59.8A-Face, Base€9,770.55
WEG 00156ET3H143TC-W22 General Purpose Motor, 3-phase Tefc 1-1/2 Hp, 3495 Rpm 143tc | AA4JCX 12N885 00156ET3H143TC-W22575V AC60 Hz1 1/2 hp1.25Totally Enclosed Fan Cooled1.57AThree PhaseRigid Base€840.81
WEG 00236ET3H145TC-W22 General Purpose Motor, 3-phase Tefc 2 Hp, 3490 Rpm 145tc | AA4JCZ 12N887 00236ET3H145TC-W22575V AC60 Hz2 hp1.25Totally Enclosed Fan Cooled2.05AThree PhaseRigid Base€853.67
WEG 00336ET3H182TC-W22 General Purpose Motor, 3-phase Tefc 3 Hp, 3510 Rpm 182tc | AA4JDB 12N889 00336ET3H182TC-W22575V60 Hz3 hp1Totally Enclosed Fan Cooled2.9AThree PhaseRigid Base€1,055.20
WEG 00536ET3H184TC-W22 General Purpose Motor, 3-phase Tefc 5 Hp, 3510 Rpm 184t | AA4JDD 12N891 00536ET3H184TC-W22575V AC60 Hz5 hp1.25Totally Enclosed Fan Cooled4.72AThree PhaseRigid Base€1,251.50
WEG 00736ET3H213TC-W22 Gp Motor, 3 Phase Tefc 7-1/2 Hp, 3530 Rpm 213tc | AA4JDF 12N893 00736ET3H213TC-W22575V AC60 Hz7 1/2 hp1.25Totally Enclosed Fan Cooled7.01AThree PhaseRigid Base€1,568.65
