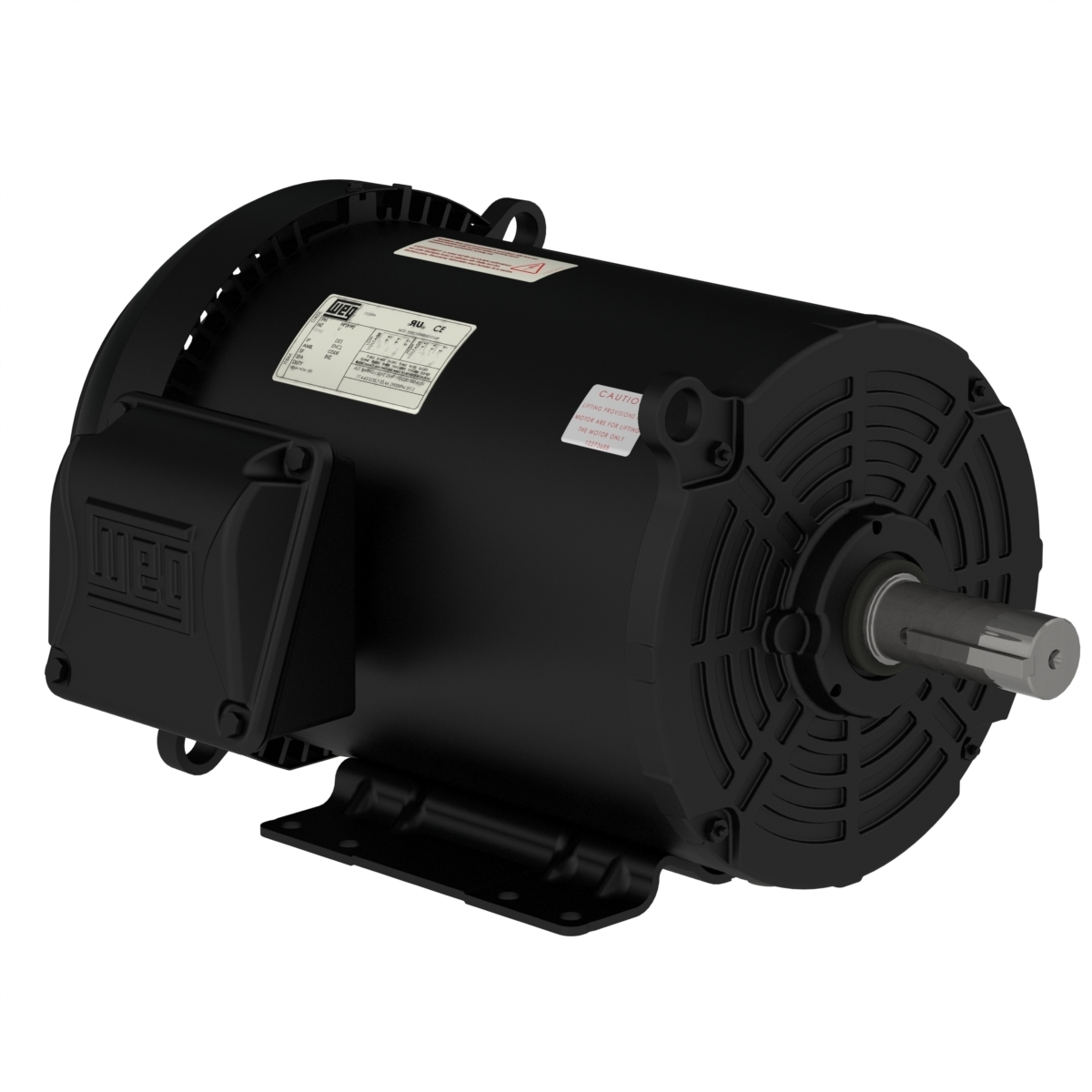

WEG 00736ET3E213T-SRG 14482705 Pump Motor, 7.5 HP, 3600 RPM, 208-230/460V, TEFC, 213T, Footed
3600 rpm
7.5 hp
213T
Get it by Tuesday, Sep 1
€1,548.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 19.4-17.5/8.76A , 8.76/17.5-19.4A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Cable Press Material | Sem |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 74% , 86.5% |
| Efficiency 75% | 88% |
| Efficiency @ 1 % | 88% |
| Efficiency @ 100% | 89.5% |
| Efficiency @ 75 % | 83% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 213/5T |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 20 sec. |
| Hp | 7 1/2 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 140-126/63.1A , 63.1/126-140A |
| Locked Rotor Time (cold) | 36 sec. |
| Locked Rotor Torque | 229% |
| Lrc | 7.2X(Code H) |
| Main Terminal Box Hole | 1.377" |
| Main Terminal Box Hole Size | 1.377" |
| Material | Carbon Steel |
| Moment Of Inertia | 0.4034 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.4034 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 3515 RPM |
| Mounting | F-1 |
| Nde Bearing Seal | No |
| No Load Amps | 0-6.4/3.2A |
| No. Of Poles | 2 |
| Noise Level | 70 dBA |
| Output Rating | 7 1/2 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor 100% | 0.88 |
| Power Factor 50% | 0.74 |
| Power Factor 75% | 0.83 |
| Power Factor @ 1 % | 89.5 |
| Power Factor @ 50 % | 86.5 |
| Power Factor @ 75 % | 88 |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.36% |
| Speed | 3400-3600 RPM , 3515 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 11.2 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 208-230/460V , 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 64.35 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 52.83 |
| Ship width (cm) | 37.08 |
| Country of Origin | US |
Product Variants
| Model | Voltage | Frequency | Hp | Service Factor | Motor Enclosure Design | Full Load Amps | Motor Type | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01836ET3Y160LFF-W22 | 460V | 50 Hz | 25 hp | 1.25 | Totally Enclosed Fan Cooled | 29.9A | - | Face, Base | €5,367.05 | |
| 03736ET3Y200LFF-W22 | 460V | 60 Hz | 50 hp | 1.25 | Totally Enclosed Fan Cooled | 59.8A | - | Face, Base | €9,770.55 | |
| 00156ET3H143TC-W22 | 575V AC | 60 Hz | 1 1/2 hp | 1.25 | Totally Enclosed Fan Cooled | 1.57A | Three Phase | Rigid Base | €840.81 | |
| 00236ET3H145TC-W22 | 575V AC | 60 Hz | 2 hp | 1.25 | Totally Enclosed Fan Cooled | 2.05A | Three Phase | Rigid Base | €853.67 | |
| 00336ET3H182TC-W22 | 575V | 60 Hz | 3 hp | 1 | Totally Enclosed Fan Cooled | 2.9A | Three Phase | Rigid Base | €1,055.20 | |
| 00536ET3H184TC-W22 | 575V AC | 60 Hz | 5 hp | 1.25 | Totally Enclosed Fan Cooled | 4.72A | Three Phase | Rigid Base | €1,251.50 | |
| 00736ET3H213TC-W22 | 575V AC | 60 Hz | 7 1/2 hp | 1.25 | Totally Enclosed Fan Cooled | 7.01A | Three Phase | Rigid Base | €1,568.65 |
