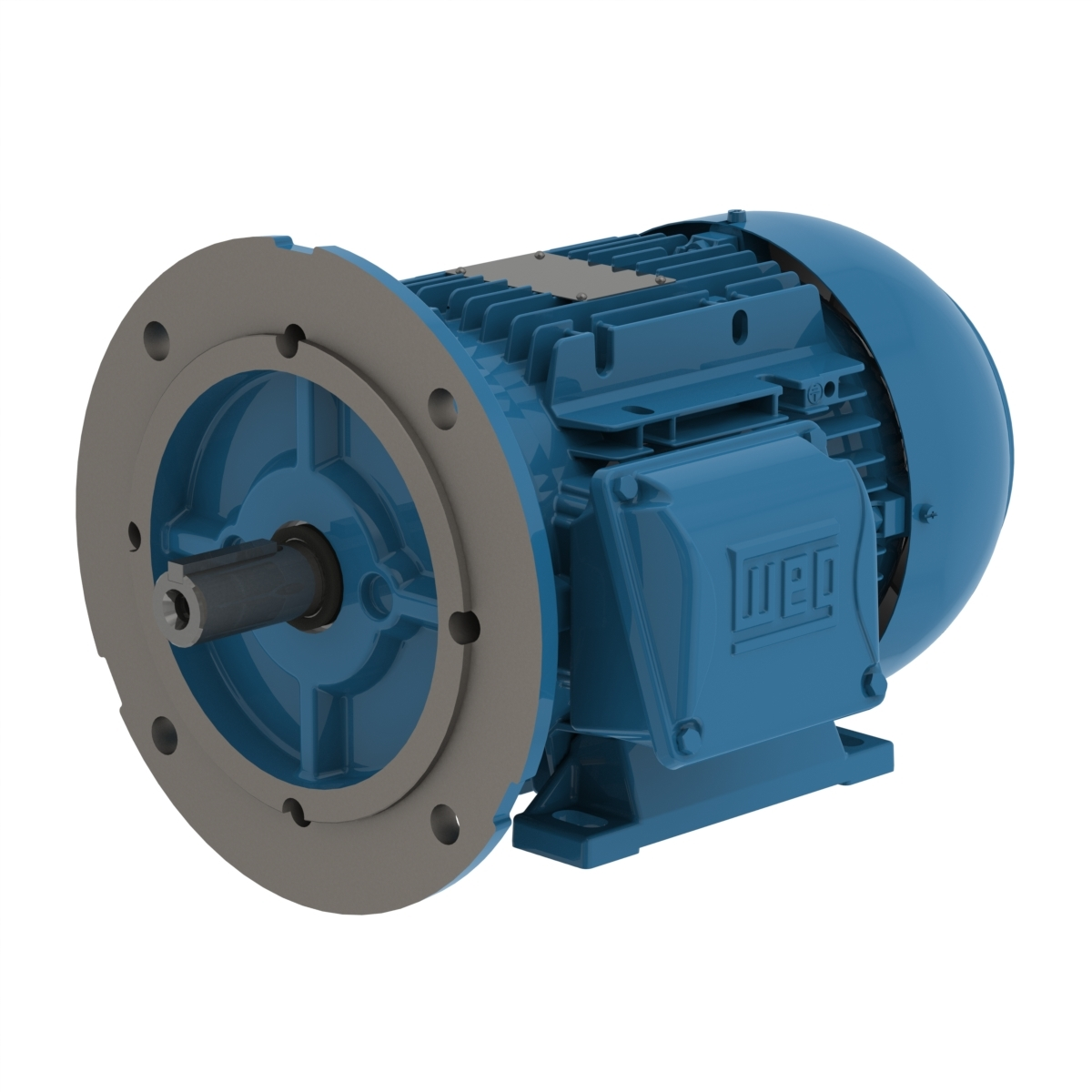

WEG 00218ET3WAL100LFF-W2 13984018 General Purpose Motor, Aluminum 100L Frame, 3 HP, 1745 RPM, 460 V With Bearing Cap, Foot-mounted
1800 rpm
2.7 hp
100LFF
460/220/240/380/415V
Get it by Tuesday, Apr 7
€835.15 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Break-down Torque | 370% |
| Breakdown Torque | 270% |
| Cold Locked Rotor Time | 41 sec. |
| Connection Cables Quantity | 6 |
| Design | N |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency @ 100% | 86.7% |
| Efficiency @ 50% | 87.2% |
| Efficiency @ 75% | 87.1% |
| Efficiency At 1 % | 75% |
| Efficiency At 50 % | 54% |
| Efficiency At 75 % | 67% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | FF |
| Flange Type | FF |
| Frame | 100L |
| Frame Material | Aluminum |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 23 sec. |
| Hz | 50/60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 37.8A |
| L.r. Amperes | 36.1/62.4A |
| Locked Rotor Time (cold) | 39 sec. |
| Locked Rotor Time (hot) | 22 sec. |
| Locked Rotor Torque | 280% , 380% |
| Lrc | 9.2 |
| Main Terminal Box Hole | 2 x M25 x 1.5 |
| Main Terminal Box Hole Size | M25 x 1.5 |
| Moment Of Inertia | 0.2136 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.2136 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1745 RPM |
| Mounting | B35L , Foot Mounted |
| No Load Amps | 2.2/3.8A , 2.2A |
| No. Of Holes | 2 |
| No. Of Pins | 6 |
| No. Of Poles | 4 |
| Noise Level | 53 dBA , 54 dBA |
| Output | 3 hp |
| Output Rating | 3 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 50% | 0.57 |
| Power Factor 75% | 0.7 |
| Power Factor At 1 % | 89.5 |
| Power Factor At 50 % | 86.6 |
| Power Factor At 75 % | 88.2 |
| Power Factor_100% | 0.79 |
| Rated Current | 4.11A , 4.88/8.43A |
| Rated Speed | 1425 RPM |
| Rated Torque | 11.1 lbs.-ft. , 9.03 lbs.-ft. |
| Rated Voltage | 220/380V , 460V AC |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Screw Cap | Stainless Steel |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 3.06% , 5% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | BMC |
| Terminal Box | Right Position |
| Terminal Type | BMC |
| Tropicalized Painting | Without |
| Voltage | 460/220-240/380-415V AC |
Shipping Info:
| Ship weight (kg) | 30.6 |
| Ship height (cm) | 51.46 |
| Ship length (cm) | 76.71 |
| Ship width (cm) | 57.07 |
| Country of Origin | BR |
Product Variants
| Model | Voltage | Frequency | Service Factor | Hp | Full Load Amps | Nameplate Rpm | Frame | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00712ET3Y160M-W22 | 380-415/460V | 60 Hz | 1 | 10 hp | 13.8A | 1180 RPM | 160M | 40°C | €3,888.09 | |
| 01112ET3Y160L-W22 | 380-415/460V | 60 Hz | 1 | 15 hp | 18.8A | 1180 RPM | 160L | 40°C | €5,328.38 | |
| 01118ET3Y160M-W22 | 380-415/460V | 60 Hz | 1 | 15 hp | 18.2A | 1775 RPM | 160M | 40°C | €2,908.96 | |
| 01136ET3Y160M-W22 | 380-415/460V | 60 Hz | 1 | 15 hp | 17.9A | 3550 RPM | 160M | 40°C | €3,544.04 | |
| 01512ET3Y180L-W22 | 380-415/460V | 50 Hz | 1 | 20 hp | 24.7A | 1180 RPM | 180L | 40°C | €6,547.52 | |
| 01518ET3Y160L-W22 | 380-415/460V | 50 Hz | 1 | 20 hp | 25A | 1775 RPM | 160L | 40°C | €3,570.52 | |
| 01536ET3Y160M-W22 | 380-415/460V | 60 Hz | 1 | 20 hp | 24.4A | 3550 RPM | 160M | 40°C | €4,068.57 |
