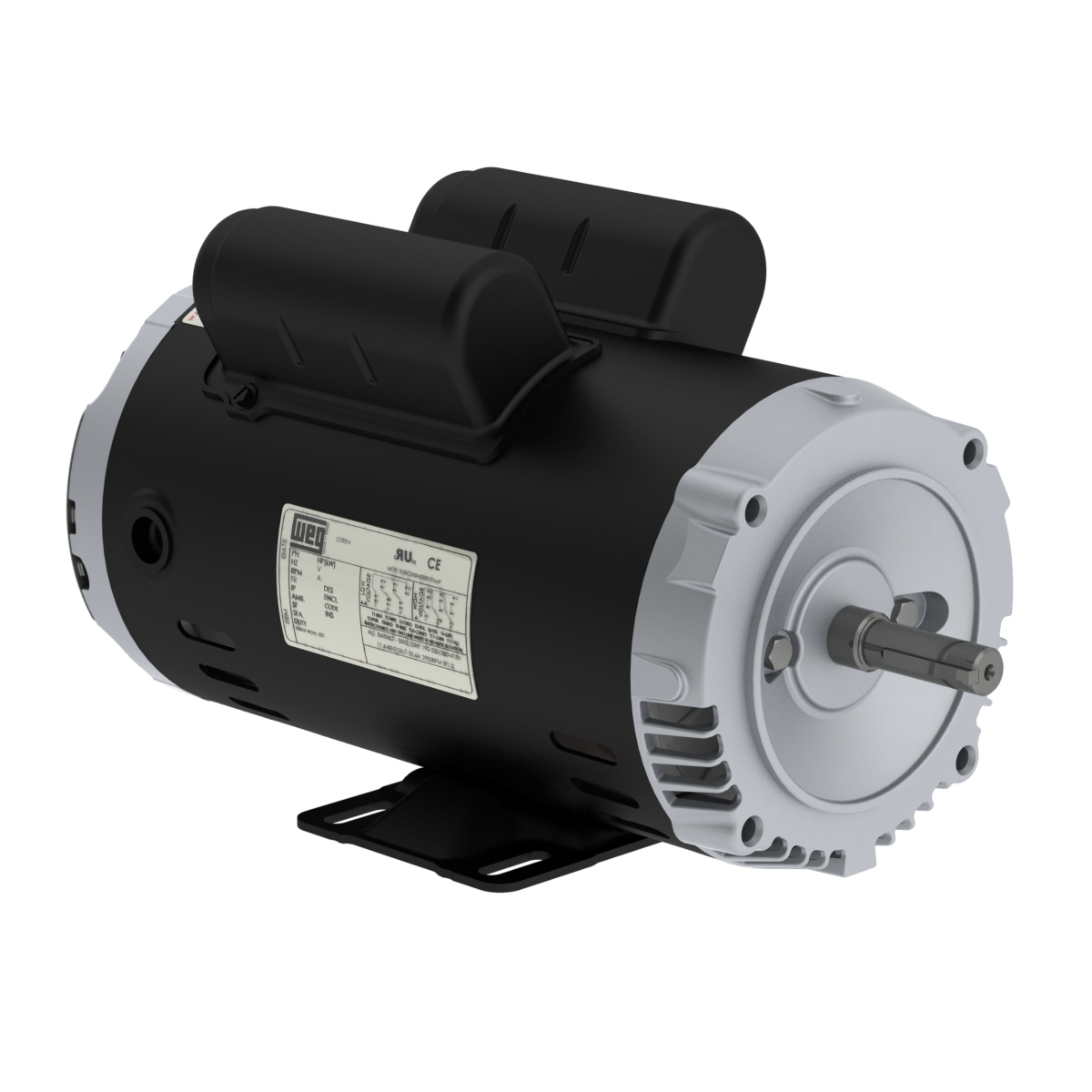

WEG 00156OT1B56C-S Electric Motor, 1 1/2Hp, 60Hz, 3600 Rpm | BC2HGL

WEG 00156OT1B56C-S 13247943 General Purpose Motor, ODP Rolled Steel 56C Frame, 1.5 HP, 3500 RPM, 115/208-230V, Foot-mounted

Item: BC2HGLModel: 00156OT1B56C-SCross Ref: 13247943
Check Availability
In Stock

Get it by Tuesday, Aug 18

€502.29 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 13.3/6.9-6.65A , 6.65-6.9/13.3A
Balancing Method 1/2 Key , 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break Down Torque 270%
Cable Press Material Sem
Cold Locked Rotor Time 18 sec.
De Bearing Seal No
Design L
Drip Cover Without
Duty Cycle S1
Efficiency 50% 73% , 88%
Efficiency 75% 79%
Efficiency @ 1 % 89%
Efficiency @ 100% 81.5%
Efficiency @ 75 % 89%
Enclosure IC01
Enclosure Rating IC01
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange C
Flange Type C
Frame 56C
Frame Material Rolled Steel
Frame Size 56C
Frequency 60 Hz
Grounding Lugs Single
Grounding Lugs Type Single
Hot Locked Rotor Time 10 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 102/53.1-51.2A , 51.2-53.1/102A
Locked Rotor Time (cold) 18 sec.
Locked Rotor Time(hot) 10 sec.
Locked Rotor Torque 260%
Lrc 7.7X(Code J)
Moment Of Inertia 0.0629 lbs.-sq. ft.
Moment Of Inertia (j) 0.0629 lbs.-sq. ft.
Motor Enclosure Design Open Dripproof
Motor Speed 3500 RPM
Mounting F-1 , Foot Mounted
Nde Bearing Seal No
No Load Amps 1.38-1.6/3.2A , 3.2/1.38-1.6A
No. Of Poles 2
Noise Level 58 dBA
Output 1 1/2 hp
Output Rating 1 1/2 hp
Overload Protection No
Overload Protector Without Overload Protector
Overload Protector (phenolic) Without Overload Protector
Painting Only Primer
Phase 1
Power Factor 100% 0.89
Power Factor 50% 0.88
Power Factor 75% 0.89
Power Factor @ 1 % 81.5
Power Factor @ 50 % 73
Power Factor @ 75 % 79
Product Datasheet weg-00156ot1b56c-s.pdf
Resilient Base Without
Rotation CW, CCW
Service Factor 1.15
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.78%
Speed 3400-3600 RPM , 3500 RPM
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Box Without Terminal Box
Torque 2.25 lbs.-ft.
Tropicalized Painting Without
Voltage 115/208-230V , 115/208-230V AC

Shipping Info:

Ship weight (kg) 17.42
Ship height (cm)2.54
Ship length (cm)31.19
Ship width (cm)2.54
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelVoltageService FactorHpFull Load AmpsFrameDuty CycleNo. Of PolesSynchronous SpeedPrice
WEG 00218OT1B56-S Electric Motor, 2Hp, 60Hz, 1800 Rpm | BA9YFZ 00218OT1B56-S115/208-230V AC1.15--56HS141800 RPM€746.87
WEG 00718OS1F215T Electric Motor, 7 1/2Hp, 60Hz, 1800 Rpm | BB6HVK 00718OS1F215T230/460V1.157 1/2 hp-213/5TContinuous41800 RPM€1,146.55
WEG 00236OT1B56-S Electric Motor, 2Hp, 60Hz, 3600 Rpm | BB8FNE 00236OT1B56-S115/208-230V AC1.152 hp-56HS123600 RPM€578.65
WEG 00536OS1E184T Electric Motor, 5Hp, 60Hz, 3600 Rpm | BB8NVE 00536OS1E184T208-230/460V-5 hp-184T---€961.68
WEG .7518OT1B56-S Electric Motor, 3/4Hp, 60Hz, 1800 Rpm | BB8NZD .7518OT1B56-S115/208-230V AC1.25--56S141800 RPM€461.73
WEG .5018OT1B48-S Electric Motor, 1/2Hp, 60Hz, 1 Rpm | BB8VFW .5018OT1B48-S115/208-230V AC1.251/2 hp4.86/34-2.43A48S141800 RPM€422.40
WEG .5018OT1BW56C-S Electric Motor, 1/2Hp, 60Hz, 1800 Rpm | BB8WAJ .5018OT1BW56C-S115/208-230V AC1.251/2 hp-W56CS141800 RPM€399.67
