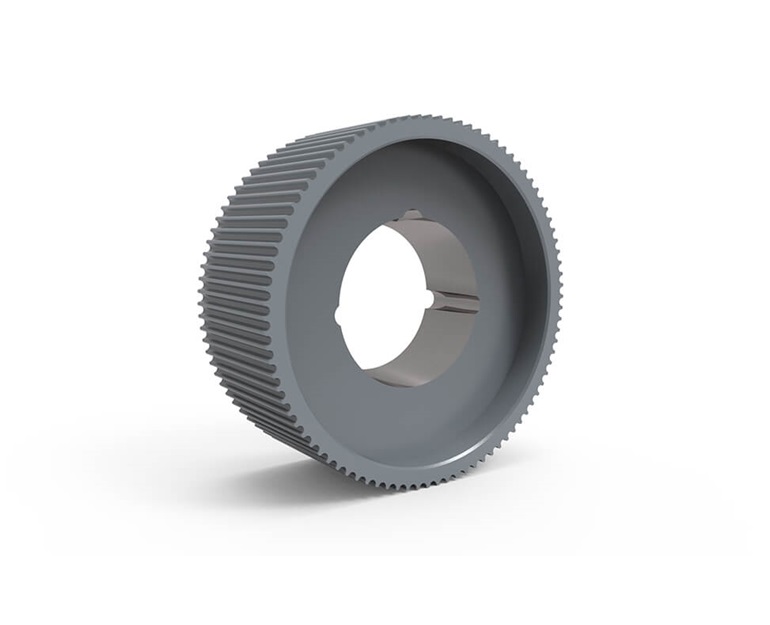

TB WOODS P908M85TL Synchronous Plus TL Belt Sprocket, Cast Iron, 85mm Belt Width, 9.023 inch Pitch Dia.
85 mm
9.023"
Get it by Tuesday, Feb 24
€831.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sprocket |
| Belt Width | 85 mm |
| Bore Type | Taper Locking Bushing |
| Bushing | 3020 |
| Bushing Type | 3020 |
| Dimension E | 22/25" |
| Dimension L | 2" |
| Dimension M | 22/25" |
| Face Width | 3 3/4" |
| Hub Length | 2" |
| Inside Dia. | 7 22/25" |
| Material | Cast Iron |
| Max. Rpm | 2790 RPM |
| Number Of Teeth | 90 |
| Outside Dia. | 8.97" |
| Pitch Dia. | 9.023" |
| Product Type | Synchronous Plus TL |
| Rpm High | 2790 RPM |
| Rpm High | 2,790 rpm |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 22.78 |
| Ship width (cm) | 22.78 |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Rpm High | Max. Rpm | Face Width | Bore Type | Dimension E | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P11214M115TL | 112 | 19.65" | 19.54" | 1280 RPM | 1280 RPM | 5 1/4" | Taper Locking Bushing | 0.38" | €1,972.66 | |
 |
P11214M40TL | 112 | 19.65" | 19.54" | 1280 RPM | 1280 RPM | 2.13" | Taper Locking Bushing | 0.0" | €1,136.21 | |
|
P11214M55TL | 112 | 19.65" | 19.54" | 1280 RPM | 1280 RPM | 2 3/4" | Taper Locking Bushing | 0.0" | €1,315.26 | |
 |
P11214M85TL | 112 | 19.65" | 19.54" | 1280 RPM | 1280 RPM | 4" | Taper Locking Bushing | 0.0" | €1,493.87 | |
 |
P1128M30TL | 112 | 11.229" | 11.18" | 2240 RPM | 2240 RPM | 1 1/2" | Taper Locking Bushing | 0.13" | €616.13 | |
 |
P1128M50TL | 112 | 11.229" | 11.18" | 2240 RPM | 2240 RPM | 2.38" | Taper Locking Bushing | 0.0" | €775.12 | |
 |
P1128M85TL | 112 | 11.229" | 11.18" | 2240 RPM | 2240 RPM | 3 3/4" | Taper Locking Bushing | 22/25" | €1,000.25 |
