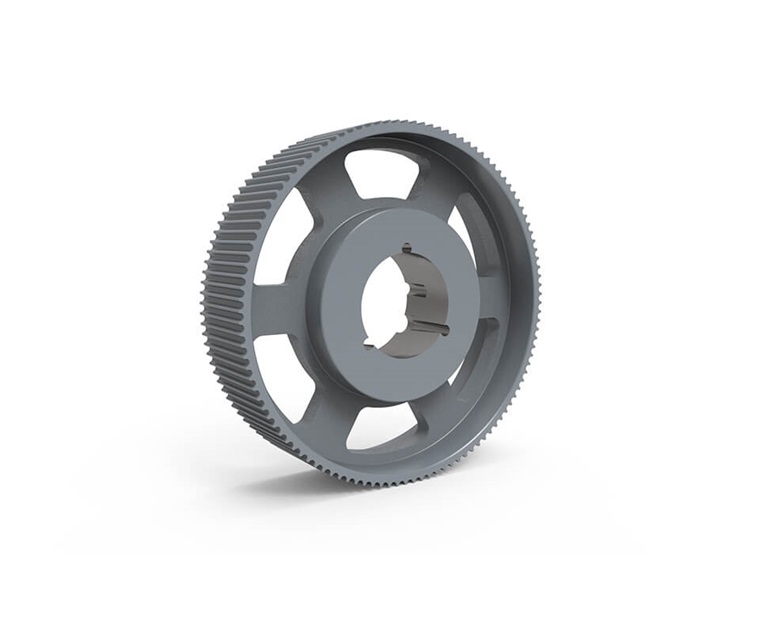

TB WOODS P11214M115TL Synchronous Plus TL Belt Sprocket, Cast Iron, 10.5 inch Hub Dia., 115mm Belt Width
115 mm
19.65"
Get it by Tuesday, Aug 25
€1,972.66 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sprocket |
| Belt Width | 115 mm |
| Bore Type | Taper Locking Bushing |
| Bushing | 4545 |
| Dimension L | 4 1/2" |
| Dimensions E | 0.38" |
| Dimensions L | 4 1/2" |
| Dimensions M | 0.38" |
| Face Width | 5 1/4" |
| Hub Dia. | 10 1/2" |
| Hub Length | 4 1/2" |
| Inside Dia. | 18 1/4" |
| Material | Cast Iron |
| Max. Speed | 1280 RPM |
| No. Of Teeth | 112 |
| Outside Dia. | 19.54" |
| Pitch Dia. | 19.65" |
| Product Type | Synchronous Plus TL |
| Rpm High | 1280 RPM |
| Rpm High | 1,280 rpm |
Shipping Info:
| Ship weight (kg) | 61.2 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 49.63 |
| Ship width (cm) | 49.63 |
Product Variants
| Model | Material | No. Of Teeth | Pitch Dia. | Rpm High | Face Width | Bore Type | Dimensions E | Dimensions L | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| P328M20TL | Ductile Cast Iron | 32 | 3.208" | 12110 RPM | 1.13" | Taper Locking Bushing | 0.13" | 1" | €234.80 | |
| P308M30TL | Ductile Iron | 30 | 3.008" | 12930 RPM | 1 1/2" | Taper Lock Bushed | 0.13" | 1" | €238.77 | |
| P408M30TL | Ductile Cast Iron | 40 | 4.01" | 9650 RPM | 1 1/2" | Taper Locking Bushing | 0.0" | 1 1/4" | €286.78 | |
| P808M30TL | Cast Iron | 80 | 8.02" | 3140 RPM | 1 1/2" | Taper Locking Bushing | 0.0" | 1 3/4" | €473.62 | |
| P328M30TL | Ductile Cast Iron | 32 | 3.208" | 12110 RPM | 1 1/2" | Taper Locking Bushing | 0.13" | 1" | €246.74 | |
| P568M50TL | Cast Iron | 56 | 5.614" | 4500 RPM | 2.38" | Taper Locking Bushing | 0.0" | 1 3/4" | €449.75 | |
| P4414M40TL | Cast Iron | 44 | 7 18/25" | 3290 RPM | 2.13" | Taper Locking Bushing | 0.0" | 1 3/4" | €455.91 |
