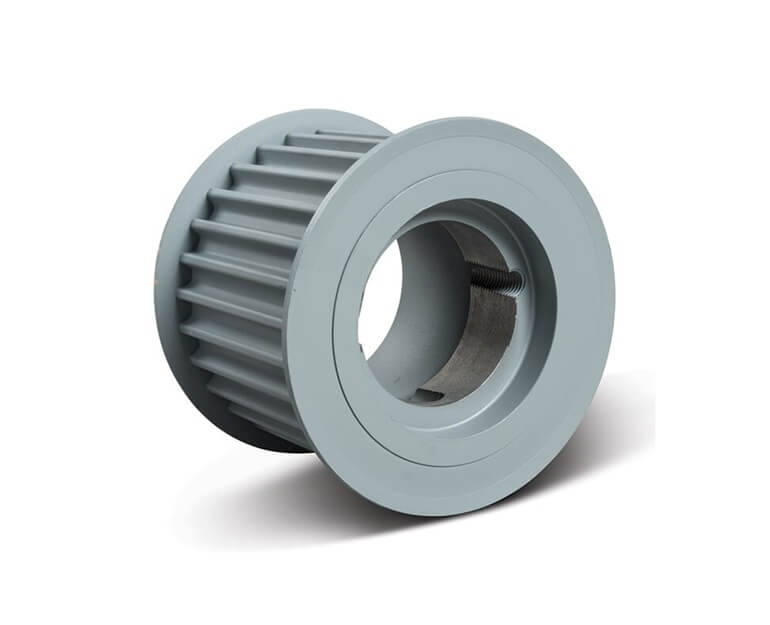

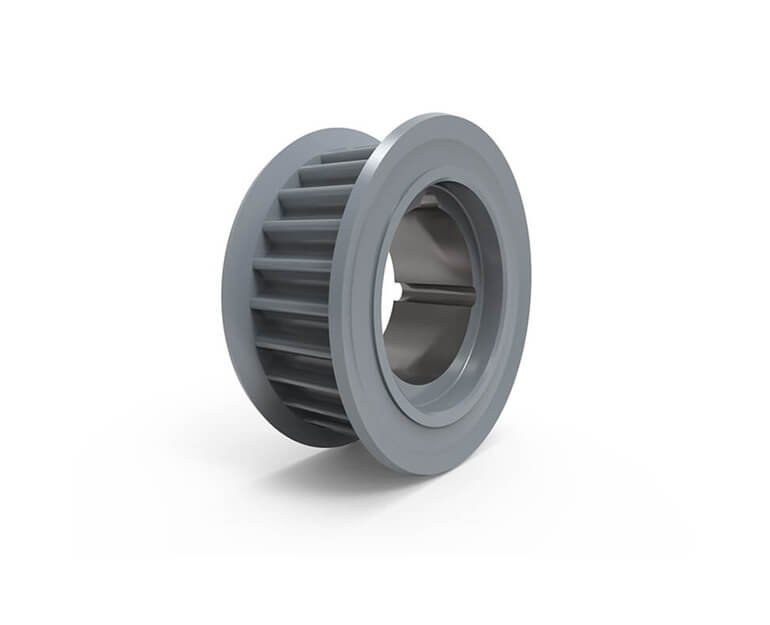

TB WOODS P488M30TL Synchronous Plus TL Belt Sprocket, Cast Iron, 30mm Belt Width, 4.812 inch Pitch Dia.
Item: AL3LNNModel: P488M30TL
7 In Stock
30 mm
4.812"
Ships within 2 days via
€370.09 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sprocket |
| Belt Width | 30 mm |
| Bore Type | Taper Locking Bushing |
| Bushing | 2021 |
| Dimension E | 0.0" |
| Dimension L | 1 1/4" |
| Dimension M | 1/4" |
| Face Width | 1 1/2" |
| Hub Length | 1 1/4" |
| Inside Dia. | 3.81" |
| Material | Cast Iron |
| Max. Rpm | 5260 RPM |
| Number Of Teeth | 48 |
| Outside Dia. | 4 19/25" |
| Pitch Dia. | 4.812" |
| Product Type | Synchronous Plus TL |
| Rpm High | 5260 RPM |
| Rpm High | 5,260 rpm |
Shipping Info:
| Ship weight (kg) | 1.76 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 12.09 |
| Ship width (cm) | 12.09 |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Rpm High | Max. Rpm | Face Width | Bore Type | Dimension E | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P11214M115TL | 112 | 19.65" | 19.54" | 1280 RPM | 1280 RPM | 5 1/4" | Taper Locking Bushing | 0.38" | €1,972.66 | |
 |
P11214M40TL | 112 | 19.65" | 19.54" | 1280 RPM | 1280 RPM | 2.13" | Taper Locking Bushing | 0.0" | €1,136.21 | |
|
P11214M55TL | 112 | 19.65" | 19.54" | 1280 RPM | 1280 RPM | 2 3/4" | Taper Locking Bushing | 0.0" | €1,315.26 | |
 |
P11214M85TL | 112 | 19.65" | 19.54" | 1280 RPM | 1280 RPM | 4" | Taper Locking Bushing | 0.0" | €1,493.87 | |
 |
P1128M30TL | 112 | 11.229" | 11.18" | 2240 RPM | 2240 RPM | 1 1/2" | Taper Locking Bushing | 0.13" | €616.13 | |
 |
P1128M50TL | 112 | 11.229" | 11.18" | 2240 RPM | 2240 RPM | 2.38" | Taper Locking Bushing | 0.0" | €775.12 | |
 |
P1128M85TL | 112 | 11.229" | 11.18" | 2240 RPM | 2240 RPM | 3 3/4" | Taper Locking Bushing | 22/25" | €1,000.25 |
