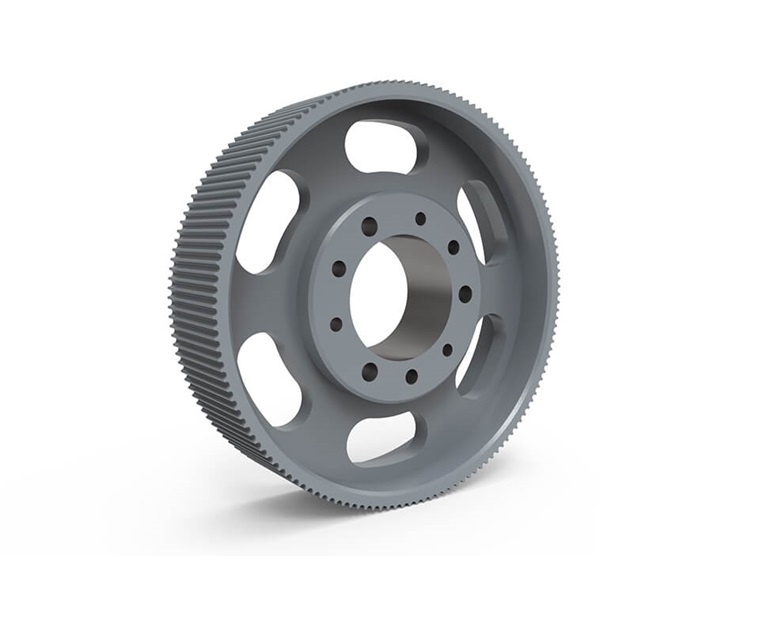

TB WOODS P1448M85 Synchronous Plus Belt Sprocket, Cast Iron, 7.38 inch Hub Dia., 85mm Belt Width
144
Get it by Friday, Dec 19
€1,125.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sprocket |
| Belt Width | 85 mm |
| Bore Type | Quick Disconnect Bushing |
| Bushing | F |
| Dimension E | 11/25" |
| Dimension L | 3.63" |
| Dimension M | 14/25" |
| Face Width | 3 3/4" |
| Hub Length | 2 1/2" |
| Hub Location | 0.63" |
| Inside Dia. | 13.19" |
| Material | Cast Iron |
| Max. Rpm | 1740 RPM |
| Number Of Teeth | 144 |
| Outside Dia. | 14.38" |
| Pitch Dia. | 14.437" |
| Product Type | Synchronous Plus |
| Rpm High | 1740 RPM |
| Rpm High | 1,740 rpm |
Shipping Info:
| Ship weight (kg) | 23.4 |
| Ship height (cm) | 36.53 |
| Ship length (cm) | 36.53 |
| Ship width (cm) | 8.51 |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Belt Width | Pitch Length | Rpm High | Max. Rpm | Bushing | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
315014M85 | 225 | - | - | 85 mm | 3150 mm | - | - | - | €1,060.72 | |
 |
P2814M40 | 28 | 4.912" | 4 4/5" | - | - | 5210 RPM | 5210 RPM | - | €234.31 | |
|
P2814M55 | 28 | 4.912" | 4 4/5" | 55 mm | - | 5210 RPM | 5210 RPM | SK R | €275.67 | |
|
P2914M40 | - | 5.088" | 4.98" | 40 mm | - | 5030 RPM | 5030 RPM | SK R | €278.68 | |
|
P2914M55 | 29 | 5.088" | 4.98" | 55 mm | - | 5030 RPM | 5030 RPM | SK R | €311.08 | |
 |
P3014M40 | 30 | 5.263" | 5.15" | 40 mm | - | 4860 RPM | 4860 RPM | SK | €256.36 | |
|
P3014M55 | 30 | 5.263" | 5.15" | 55 mm | - | 4860 RPM | 4860 RPM | SK | €297.71 |
