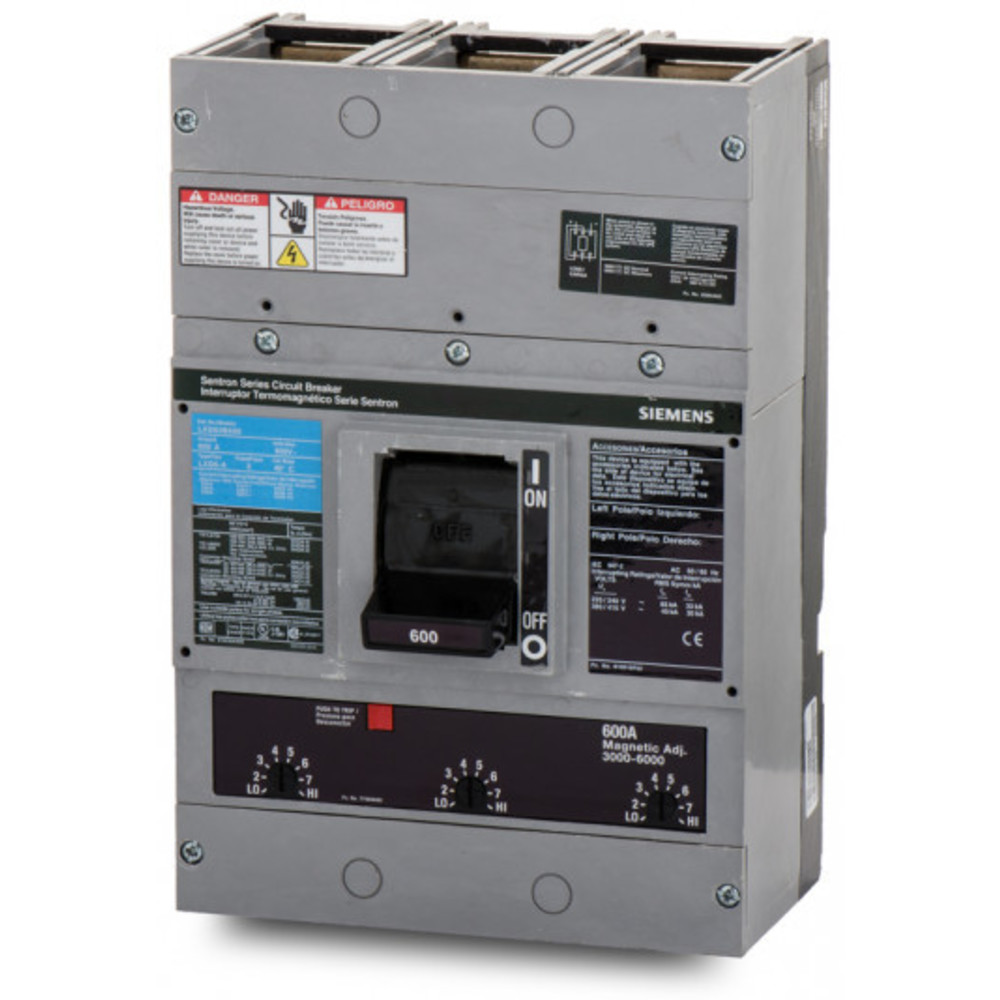

SIEMENS LXD63B600 Sentron Molded Case Circuit Breaker, LD, 600 A, 600 VAC, 3 P

Siemens LXD63B600 Sentron moulded case circuit breaker prevents damage to the circuit due to excess current (overloads) or short circuits in connected receptacles, branch circuits, motors and HVACs / HVARs.

Features:

• Sentron Series moulded case circuit breaker protects QO load centres, panelboards and switchboard distribution panels from overloads or short-circuits.
• The non-interchangeable thermal-magnetic trip unit provides both long-time and instantaneous functions.
• It has a fixed thermal-trip value of 600A and an adjustable magnetic trip value within the range of 3000 - 6000A.

Standards and Approvals:

• UL 489 / IEC 60947-2

Frequently Asked Questions:

Q. What are the different interrupt ratings of this Siemens LXD63B600 Sentron moulded case circuit breaker?

A. This Siemens LXD63B600 breaker has a maximum interrupt rating of 35kA at 480VAC input.

Q. What are the points to inspect before operating this Siemens LXD63B600 Sentron moulded case circuit breaker?

A.

• Keep the area around the breaker clean by using an enclosure. Remove the dust, dirt, grease, moisture, foreign contaminants or any safety hazards near the circuit breaker area.
• Check that the unit's mechanical linkages, like the toggle actuator, are free to move by switching the unit ON & OFF several times.
• Press the optional push-to-trip button at the bottom side of the unit to mechanically test the circuit breaker.
• Inspect the unit of any cracks, chipping, discolouration or any sign of overheating. Tighten the terminals & connectors. Check the mounting hardware.

Q. What is the voltage rating of this Siemens LXD63B600 Sentron moulded case circuit breaker?

A. Siemens LXD63B600 Sentron moulded case circuit breaker functions well on 600V supply.
