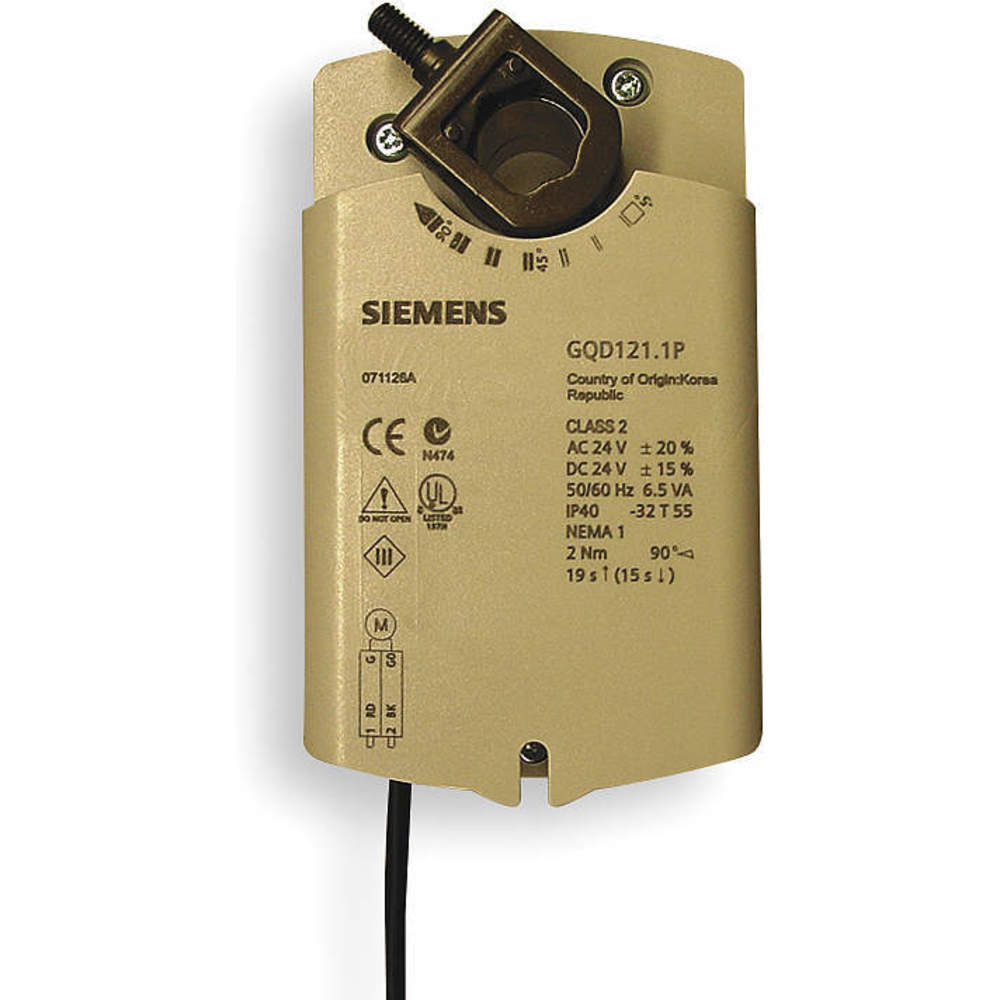

SIEMENS GQD121.1P Actuator Torque 20 90 Degree Timing 30 Sec
Item: AC3MFLModel: GQD121.1PCross Ref: 2UPH7
7 In Stock
Ships within 2 days via
5.00% off
€249.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electric Actuator |
| Ambient Temp. | -25°F to +130°F |
| Application | Damper |
| Control Signal | On/Off |
| Depth | 2 3/8" |
| Electrical Connection Type | Hardwired |
| For Shaft Dia. | 1/2" |
| For Shaft Height | 1/2" |
| For Shaft Shape | Round, Square |
| For Shaft Width | 1/2" |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Height | 4 3/4" |
| Housing Material | Plastic |
| Included | Hex Key, Mounting Bracket Screws |
| Input Voltage | 24V AC/DC |
| Ip Rating | IP40 |
| Max. Operating Temp. | 130°F |
| Min. Operating Temp. | -25°F |
| Mounting Type | Direct Mount |
| Nema Rating | 1 |
| No. Of Auxiliary Switches | 0 |
| Output Signal | 2-10V DC |
| Overall Depth | 2 1/2" |
| Overall Height | 5 1/2" |
| Overall Width | 2 3/4" |
| Plenum Rating | Plenum Rated |
| Power | 4.5 W |
| Power Consumption | 6.5 VA |
| Product Type | Actuator |
| Replaces Honeywell Motors | MS8105A1008 |
| Return Action | Spring Return |
| Shaft Rotation | CW/CCW |
| Shaft Type | Set Screw Shaft Coupling |
| Signal Type | On/Off |
| Spring Return | Yes |
| Stroke Deg. | 90° |
| Stroke Deg. | 90 |
| System Application | Dampers, Economizers |
| Time To Close | 15 sec. |
| Time To Open | 90 sec. |
| Timing | 90 sec. |
| Torque | 20 lbs.-in. |
| Type | Spring Return |
| Width | 2 3/4" |
Shipping Info:
| Ship weight (kg) | 0.79 |
| Ship height (cm) | 4.06 |
| Ship length (cm) | 34.04 |
| Ship width (cm) | 30.48 |
| HS code | 8501106060 |
| Country of Origin | KR |
Product Variants
| Product | Model | Input Voltage | Timing | Ambient Temp. | Power Consumption | Shaft Type | Replaces Honeywell Motors | Time To Open | Plenum Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

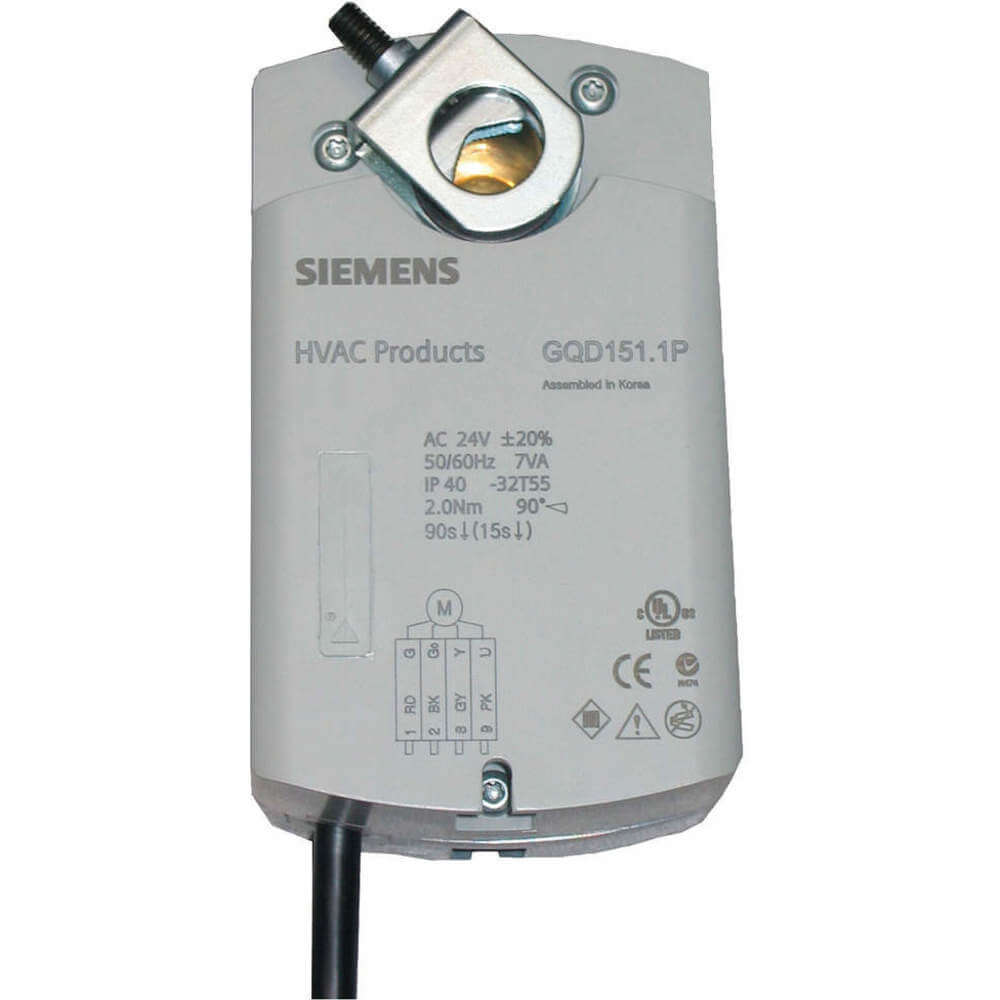

GQD221.1U | 120V AC | 15 sec. | -40°F to +158°F | 10 VA | Self Centering Shaft Coupling | MS4103 | 30 sec. | Not Plenum Rated | €298.55 |
