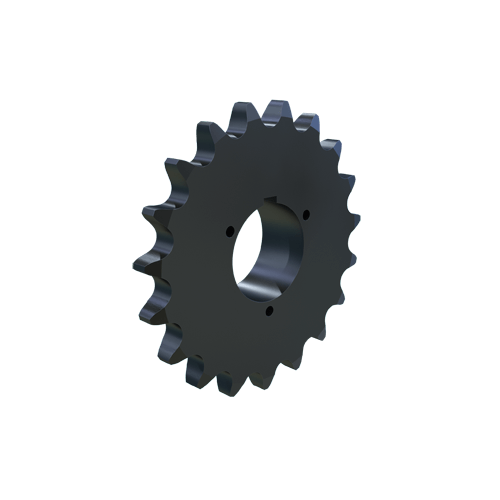

MARTIN SPROCKET 100Q19H Roller Chain Sprocket, 100 Chain, Bushed MST, 19 Teeth, 7.594 Inch Pitch Dia., Steel
Item: AL4WZKModel: 100Q19H
7 In Stock
7.594"
Ships within 2 days via
€546.76 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 0.75" to 2.688" |
| Bore Type | Bushed |
| Bushing Part Number | Q1 |
| Bushing Size | Q1 |
| Bushing Type | Type Q1 Split Taper |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Chain Size | 100 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Dia. | 4 1/8" |
| Hub Outside Dia. | 4 1/8" |
| Individually Packaged | No |
| Key Way Size | 1/2" |
| Length Through Bore | 2 1/2" |
| Length Thru Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 11/16" |
| Min. Bore Size | 3/4" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 19 |
| Outside Dia. | 8.241" |
| Pitch | 1 1/4" |
| Pitch Dia. | 7.594" , 7.5944" |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 8.241" |
| Storage Dimension Width | 8.241" |
| Type | MST Q1 Bushed Solid Type 4 |
Shipping Info:
| Ship weight (kg) | 4.06 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 20.93 |
| Ship width (cm) | 20.93 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
100Q32 | 12.7529" | 32 | 1 3/4" | 4 1/4" | 0.75" to 2.688" | #100 | 13.441" | 13.441" | €624.82 | |
|
100R32 | 12.7529" | 32 | 2" | 5 1/2" | 1 1/8" to 3 3/4" | #100 | 13.441" | 13.441" | €624.82 | |
|
100Q35 | 13.9448" | 35 | 1 3/4" | 4 1/8" | 0.75" to 2.688" | #100 | 14.639" | 14.639" | €747.51 | |
 |
100R35 | 13.945" | 35 | 2 7/8" | 5 3/8" | 1 1/8" to 3 3/4" | 100 | 14.639" | 14.639" | €747.51 | |
|
100R40 | 15.9319" | 40 | 2" | 5 3/8" | 1 1/8" to 3 3/4" | #100 | 16.633" | 16.633" | €794.11 | |
 |
100R42 | 16.7269" | 42 | 2 7/8" | 5 3/8" | 1 1/8" to 3 3/4" | 100 | 17.43" | 17.43" | €813.51 | |
 |
100R54 | 21.498" | 54 | 2" | 5 3/8" | 1 1/8" to 3 3/4" | #100 | 22.212" | 22.212" | €1,093.58 |
