DEHN Earth Connecting Elements
Filter
A
B
C
D| Style | Model | Max. Short-circuit Amps Ik0.5 S | Max. Short-circuit Amps Ik1 S | For Cable Cross Section Cu | Anti-rotation Cable Lug | Clamping Range | Temp. | Dimensions | Shaft Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

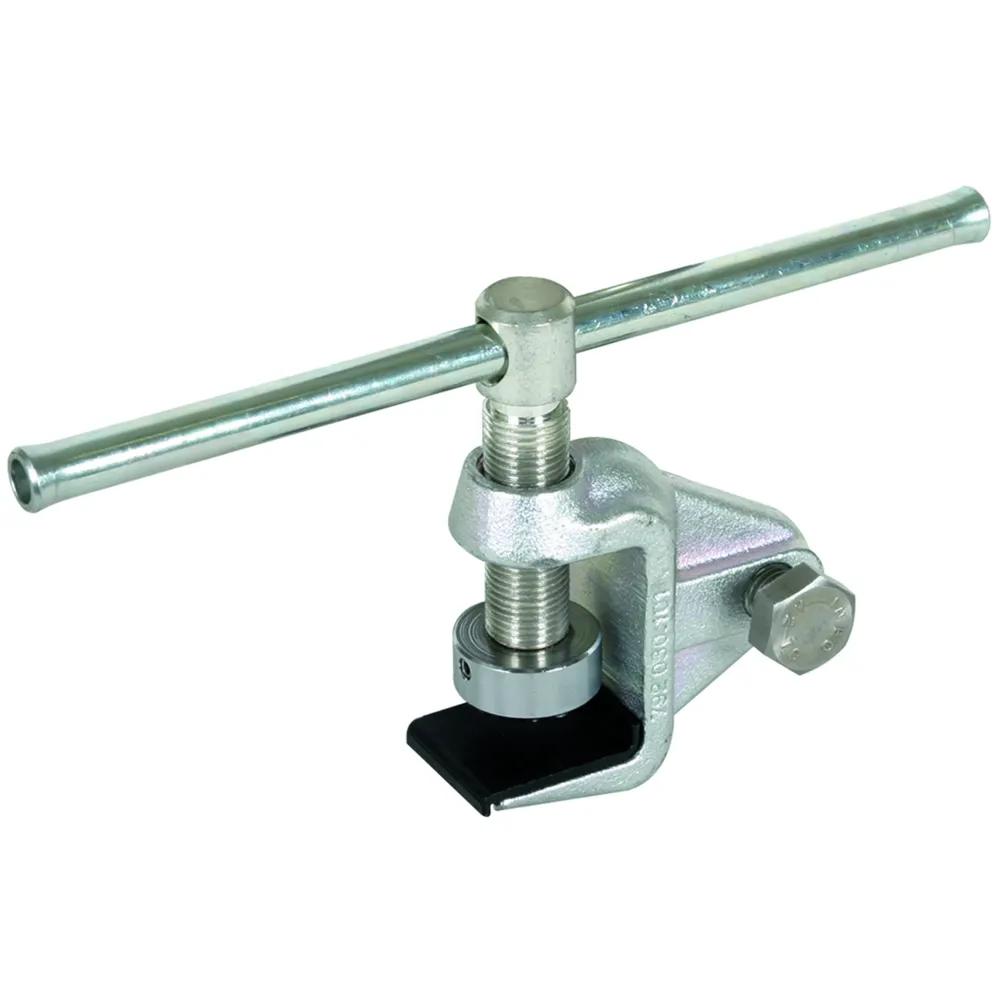

| A | 792030 | 14 kA | 9.9 kA | 16 sq. mm to 50 sq. mm | PK1 | 0 mm to 30 mm | -25°C to +55°C | - | Brass, Galvanized Zinc | €116.80 | |

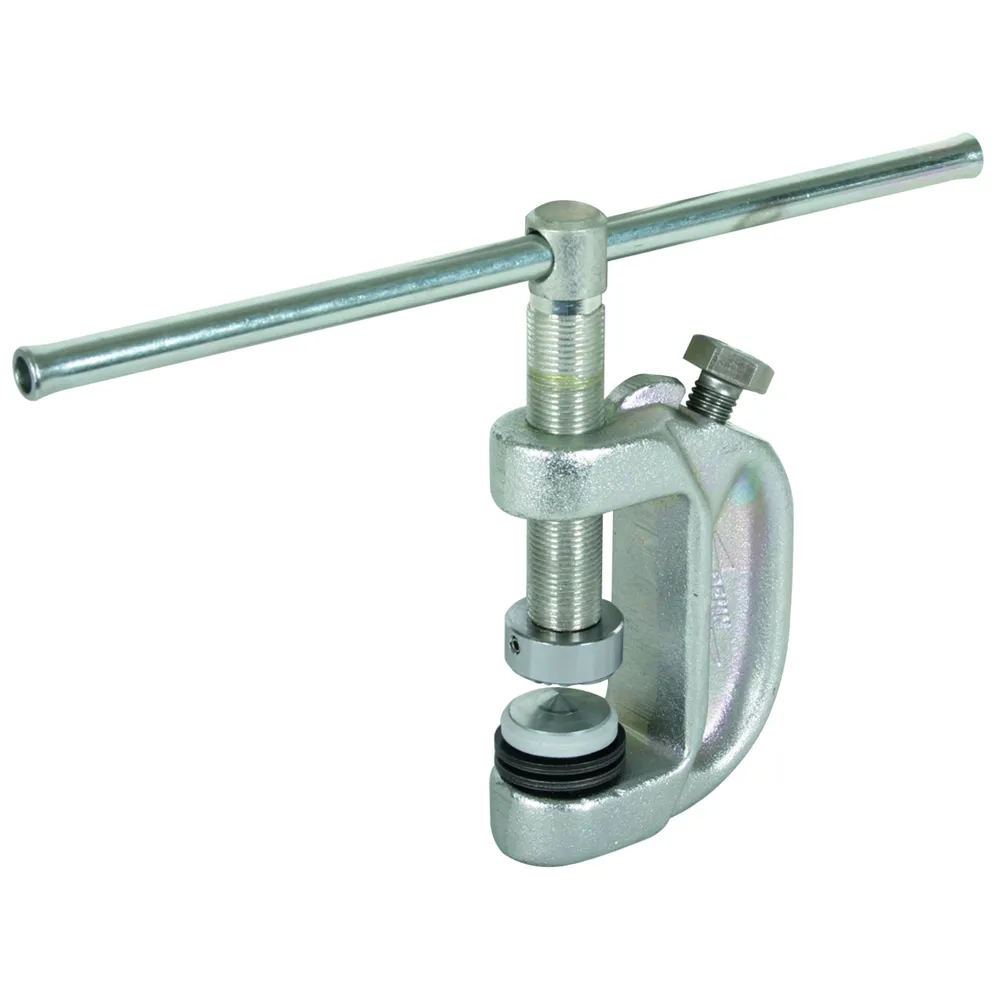

| B | 792190 | 26.5 kA | 18.7 kA | 16 sq. mm to 95 sq. mm | PK1 | 0 mm to 40 mm | -25°C to +55°C | - | Brass, Galvanized Zinc | €209.11 | |

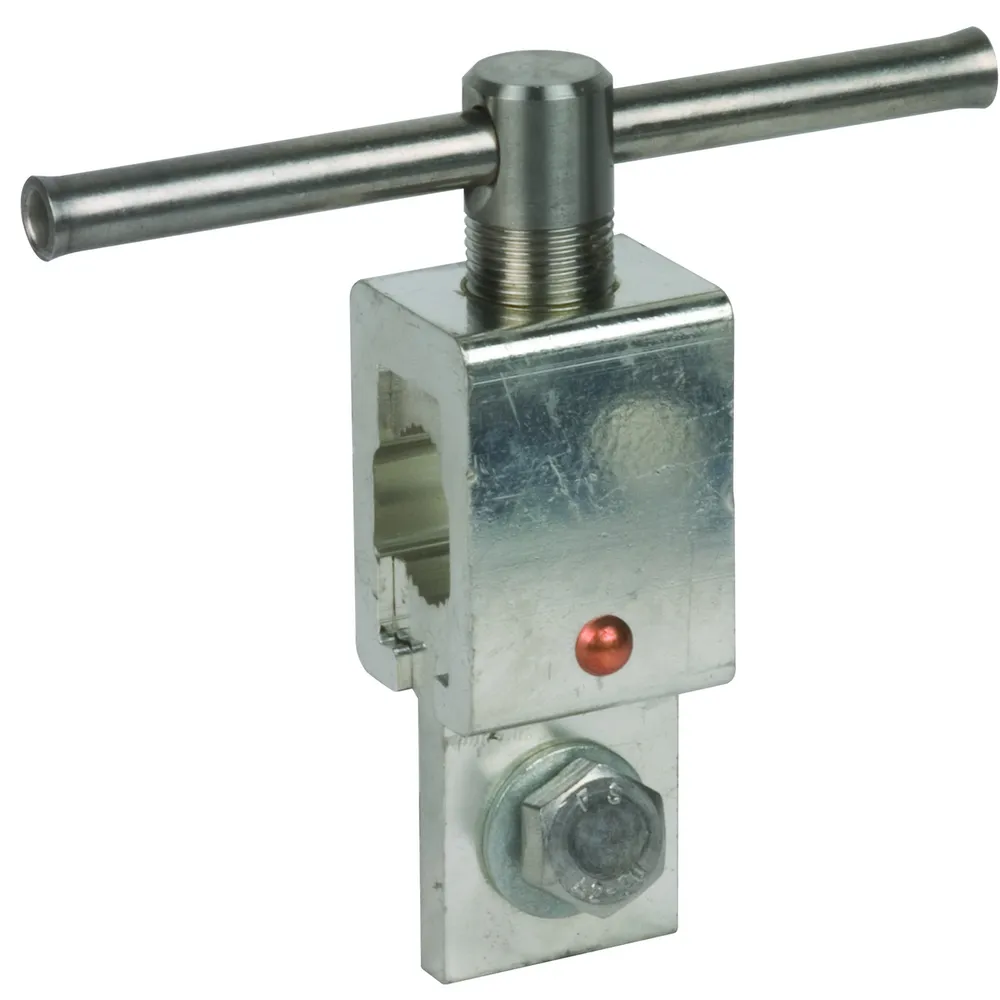

| C | 790160 | 29.6 kA | 29.6 kA | 16 sq. mm to 150 sq. mm | PK2 | - | -25°C to +55°C | 16 mm | - | €415.05 | |

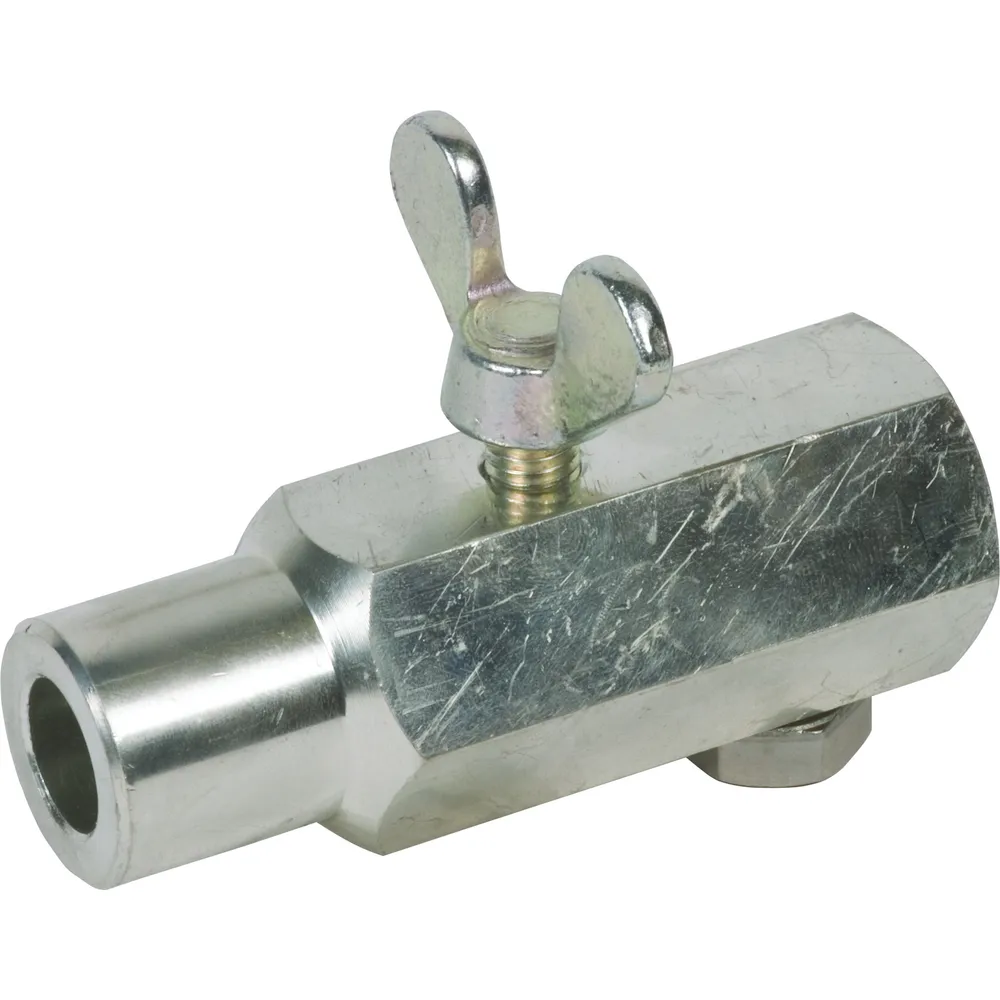

| D | 790150 | 42 kA | 29.6 kA | 16 sq. mm to 150 sq. mm | PK1 | - | -25°C to +55°C | 16 mm | - | €88.11 |
