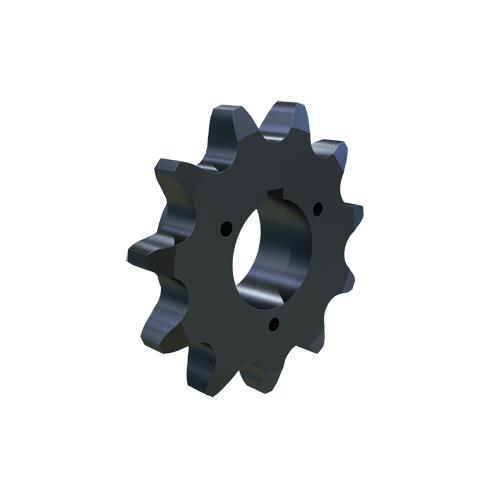

MARTIN SPROCKET 100P11H Roller Chain Sprocket, 100 Chain, Bushed MST, 11 Teeth, 4.437 Inch Pitch Dia., Steel
Item: AL4WZBModel: 100P11H
7 In Stock
4.437"
Ships within 2 days via
€242.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1/2" to 1 3/4" |
| Bore Type | Bushed |
| Bushing Part Number | P1 |
| Bushing Size | P1 |
| Bushing Type | Type P1 Split Taper |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Chain Size | 100 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Dia. | 3" |
| Hub Outside Dia. | 3" |
| Individually Packaged | No |
| Key Way Size | 3/8" |
| Keyway Width | 3/8" , 3/8" W |
| Length Through Bore | 1 15/16" |
| Length Thru Bore | 1 5/16" |
| Material | Steel |
| Max. Bore Size | 1 3/4" |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 11 |
| Outside Dia. | 5.007" |
| Pitch | 1 1/4" |
| Pitch Dia. | 4.4368" , 4.437" |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 1.31" |
| Storage Dimension Length | 5.007" |
| Storage Dimension Width | 5.007" |
| Type | MST P1 Bushed Solid Type 4 |
Shipping Info:
| Ship weight (kg) | 1.03 |
| Ship height (cm) | 4.93 |
| Ship length (cm) | 12.73 |
| Ship width (cm) | 12.73 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Keyway Width | Hub Dia. | Length Through Bore | Bushing Type | For Chain Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
100Q32 | 0.75" to 2.688" | 12.7529" | 13.441" | 1/2" | 4 1/4" | 1 3/4" | MST Q1 | 100 | €624.82 | |
|
100R32 | 1 1/8" to 3 3/4" | 12.7529" | 13.441" | 3/4" | 5 1/2" | 2" | MST R1 | 100 | €624.82 | |
|
100Q35 | 0.75" to 2.688" | 13.9448" | 14.639" | 1/2" | 4 1/8" | 1 3/4" | MST Q1 | 100 | €747.51 | |
 |
100R35 | 1 1/8" to 3 3/4" | 13.945" | 14.639" | 3/4" | 5 3/8" | 2 7/8" | Type R1 Split Taper | 100 | €747.51 | |
|
100R40 | 1 1/8" to 3 3/4" | 15.9319" | 16.633" | 3/4" | 5 3/8" | 2" | MST R1 | 100 | €794.11 | |
 |
100R42 | 1 1/8" to 3 3/4" | 16.7269" | 17.43" | 3/4" | 5 3/8" | 2 7/8" | Type R1 Split Taper | 100 | €813.51 | |
 |
100R54 | 1 1/8" to 3 3/4" | 21.498" | 22.212" | 3/4" | 5 3/8" | 2" | MST R1 | 100 | €1,093.58 |
