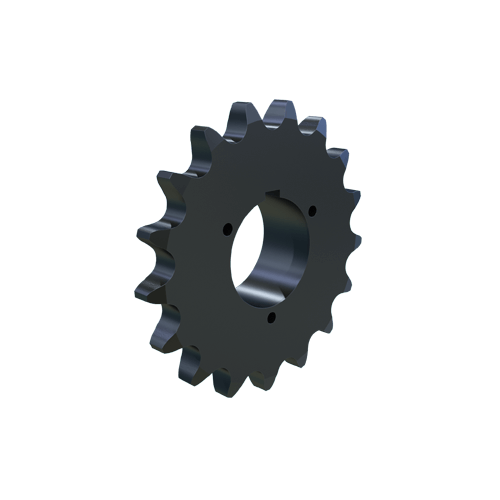

MARTIN SPROCKET 100Q17H Roller Chain Sprocket, 100 Chain, Bushed MST, 17 Teeth, 6.803 Inch Pitch Dia., Steel
Item: AL4WZHModel: 100Q17H
7 In Stock
6.803"
Ships within 2 days via
€404.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | Q1 |
| Bushing Size | Q1 |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Diameter | 4 1/8" |
| Hub Outside Dia. | 4 1/8" |
| Individually Packaged | No |
| Keyway Size | 1/2" |
| Keyway Width | 1/2" |
| Length Through Bore | 2 1/2" |
| Length Thru Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 11/16" |
| Min. Bore Size | 3/4" |
| No. Of Teeth | 17 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 17 |
| Outside Dia. | 7.437" |
| Pitch | 1 1/4" |
| Pitch Dia. | 6.8027" |
| Pitch Diameter | 6.803" |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 7.437" |
| Storage Dimension Width | 7.437" |
Shipping Info:
| Ship weight (kg) | 3.31 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 18.9 |
| Ship width (cm) | 18.9 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Bushing Type | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
100Q32 | 32 | 12.7529" | 13.441" | 1 3/4" | MST Q1 | 100 | 1 1/4" | Bushed | €624.82 | |
|
100R32 | 32 | 12.7529" | 13.441" | 2" | MST R1 | 100 | 1 1/4" | Bushed | €624.82 | |
|
100Q35 | 35 | 13.9448" | 14.639" | 1 3/4" | MST Q1 | 100 | 1 1/4" | Bushed | €747.51 | |
 |
100R35 | 35 | 13.945" | 14.639" | 2 7/8" | Type R1 Split Taper | 100 | 1 1/4" | Bushed | €747.51 | |
|
100R40 | 40 | 15.9319" | 16.633" | 2" | MST R1 | 100 | 1 1/4" | Bushed | €794.11 | |
 |
100R42 | 42 | 16.7269" | 17.43" | 2 7/8" | Type R1 Split Taper | 100 | 1 1/4" | Bushed | €813.51 | |
 |
100R54 | 54 | 21.498" | 22.212" | 2" | MST R1 | 100 | 1 1/4" | Bushed | €1,093.58 |
