LEESON 121944.00 C145T17FB92A Feather Picker Motor, 3 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Tuesday, May 19
5.00% off
€1,363.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Application | Farm Duty |
| Bearing Type | Ball |
| Code | J |
| Design | INV, J |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Frame | 145T |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 8.6-8.9/4.3A |
| Grease Type | Polyrex EM |
| Hp | 3 hp |
| Includes | Gasketed Conduit Box, Shaft Slinger |
| Insulation Class | Class F |
| Length Less Shaft | 11 1/2" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Hatchery |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1740 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 82.5% |
| Output Kw | 2.24 kW |
| Overall Length | 13 3/4" |
| Packaging | B |
| Phase | 3 |
| Power | 2.24 kW |
| Power Factor | 79 |
| Product Datasheet | leeson-121944-00.pdf |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Thermal Protection | None |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 20.7 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 82.5
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 080904
- Winding: T634206
- GROUP: 3
- Paint: WHITE - LEESON (EPOXY)
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Motor Enclosure Design | Frame | Motor Shaft Design | Motor Application | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
119230.00 | 230V | 1 hp | 3600 RPM | Totally Enclosed Fan Cooled | 56CZ | - | - | - | €769.40 | |
 |
120379.00 | 208-230/460V | 3 hp | 3450 RPM | Totally Enclosed Air Over | 145T | T | Aeration Fan Motor | - | €626.04 | |
 |
119783.00 | 208-230/460V | 3 hp | 1740 RPM | Totally Enclosed Air Over | 56HZ | NEMA 56 | Farm Duty | 3-Phase | €906.06 | |
 |
5K49NN4052T | 380/460V AC | 1 1/2 hp | 1725/1425 RPM | Totally Enclosed Fan Cooled | 56C | Keyed | Farm Duty | 3 Phase | €163.56 | |
 |

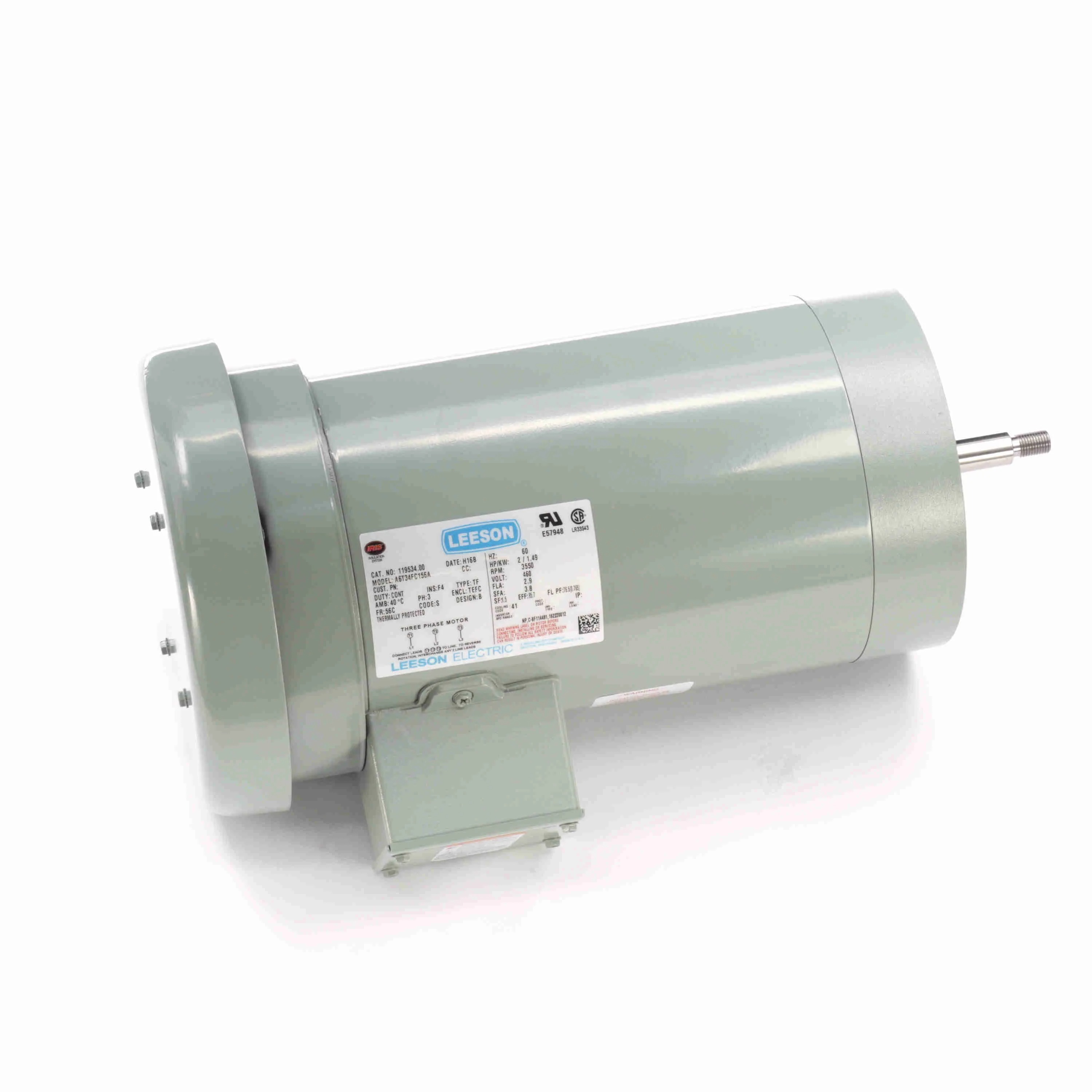

119534.00 | - | - | - | - | - | - | - | - | €1,632.52 | |
 |
121934.00 | - | - | - | - | - | - | - | - | €994.40 | |
 |
119535.00 | - | - | - | - | - | - | - | - | €346.94 |
