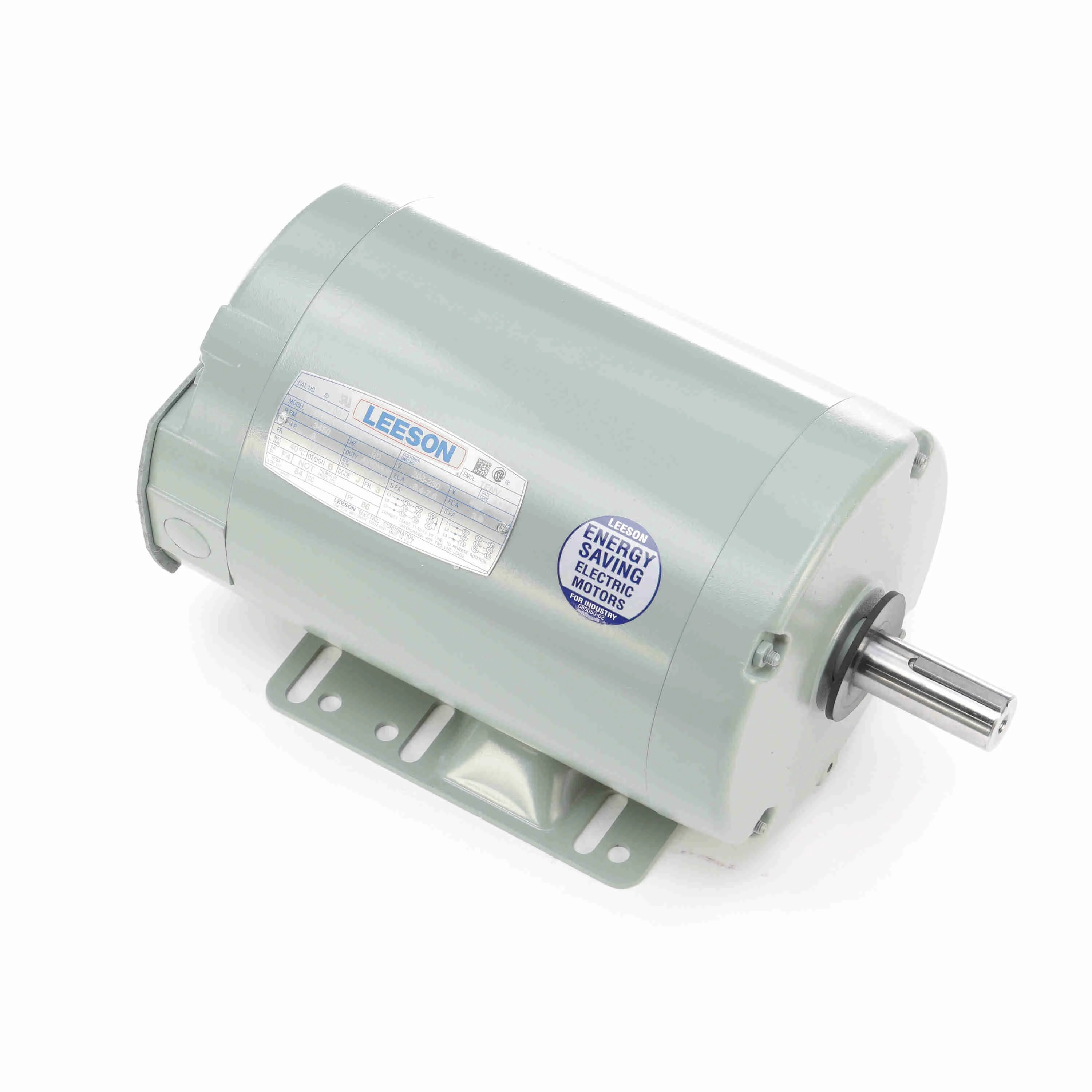

LEESON 120379.00 C145T34NB2E Aeration Fan Motor, 3 HP, 3 Phase, 60 Hz, 230/460V, 3600 RPM
Get it by Monday, Aug 31
€626.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 7.6/3.8A |
| Application | Farm Duty |
| Bearing Type | Ball |
| Code | J |
| Design | B, J |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 84% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Teao |
| Frame | 145T |
| Frame Length | 7" |
| Frame Material | Rolled Steel |
| Frame Type | 145T |
| Frequency | 60 Hz |
| Full Load Amps | 7.6-8.4/3.8A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 3 hp |
| Insulation Class | Class F |
| Ip Code | IP43 |
| Kva Code | J |
| Kw | 2.2 kW |
| Length | 14 11/25" |
| Lubrication | Polyrex EM |
| Max. Speed | 3450 RPM |
| Motor Application | Aeration Fan Motor |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Shaft Design | T |
| Motor Shaft Rotation | Reversible |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Speed | 3450 RPM |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 2.24 kW |
| Overall Length | 12 5/16" |
| Packaging | B |
| Phase | 3 |
| Power | 2.24 kW |
| Power Factor | 86 |
| Product Datasheet | leeson-120379-00.pdf |
| Resistance Main | 6.2 ohms |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | T |
| Speed | 3400-3600 RPM |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TN |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Width | 7.94" |
Shipping Info:
| Ship weight (kg) | 18.45 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 20.17 |
| Country of Origin | US |
Product Details:
- Eff 100%: 84
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 004002
- Winding: T632164
- GROUP: 3
- Paint: GRAY - LIGHT (EPOXY)
Documentation:
Product Variants
| Product | Model | Voltage | Motor Enclosure Design | Frame | Hp | Motor Shaft Design | Motor Application | Motor Mounting Type | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
119230.00 | 230V | Totally Enclosed Fan Cooled | 56CZ | 1 hp | - | - | - | - | €769.40 | |
 |
121944.00 | 208-230/460V AC | Totally Enclosed Fan Cooled | 145T | 3 hp | Keyed | Farm Duty | Rigid Base | 3-Phase | €1,521.37 | |
 |
119783.00 | 208-230/460V | Totally Enclosed Air Over | 56HZ | 3 hp | NEMA 56 | Farm Duty | Rigid Base | 3-Phase | €906.06 | |
 |
5K49NN4052T | 380/460V AC | Totally Enclosed Fan Cooled | 56C | 1 1/2 hp | Keyed | Farm Duty | Face | 3 Phase | €163.56 | |
 |
119534.00 | - | - | - | - | - | - | - | - | €1,632.52 | |
 |
121934.00 | 230/460V AC | Totally Enclosed Fan Cooled | 140 | - | Keyed | Feather Picker | Rigid Base | - | €994.40 | |
 |
119535.00 | 460V | - | - | - | - | - | - | - | €346.94 |
