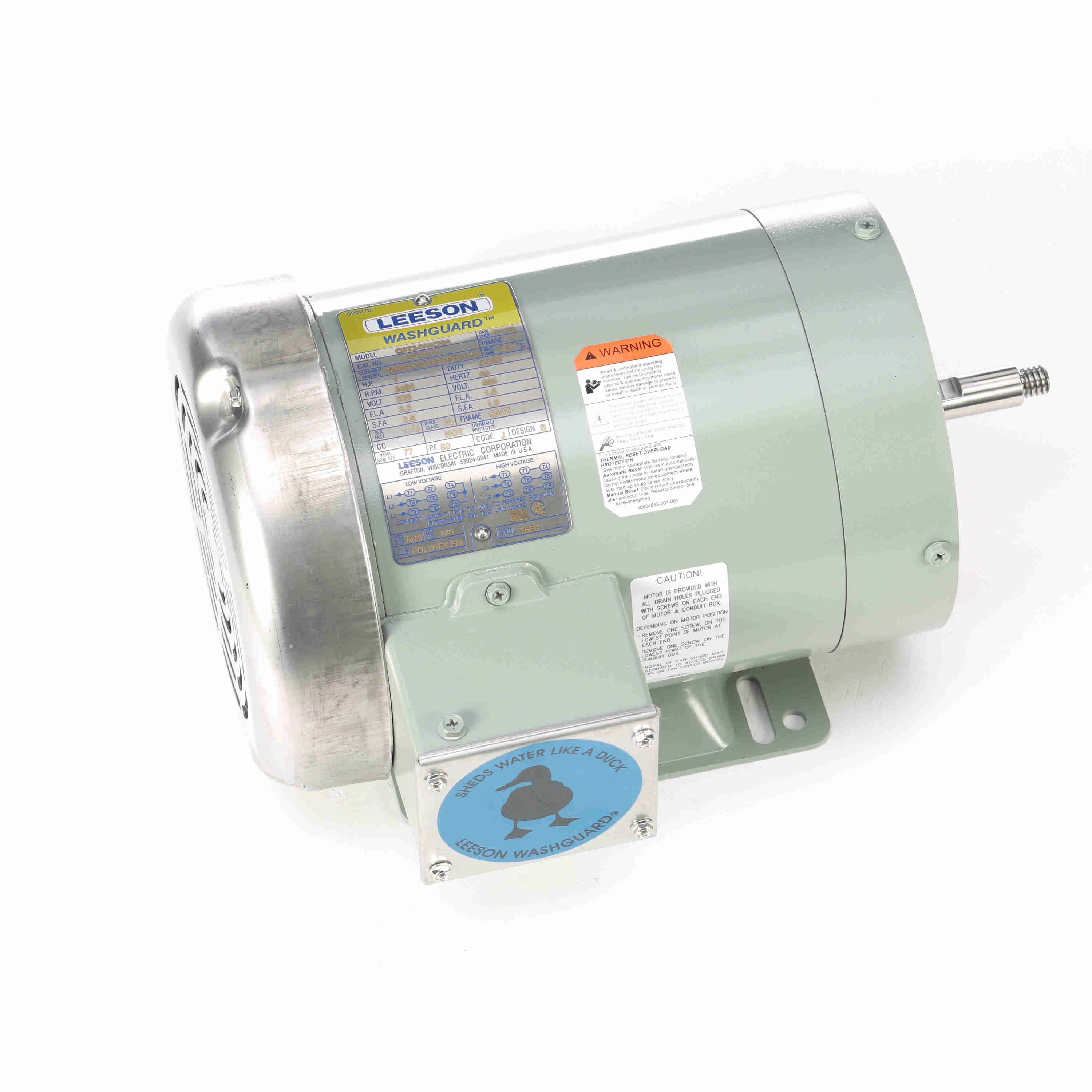

LEESON 119230.00 C6T34WK29A General Purpose Farm Duty Motor, 1 HP, 3 Phase, 60 Hz, 230/460V, 3600 RPM
Get it by Monday, Aug 24
€769.40 /unit
This product can only be shipped in multiples of 24Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 3.2/1.6A |
| Code | J |
| De Bearing Size | 6205 |
| De Bearing Type | Ball |
| Design | B, J |
| Design Code | B |
| Duty Cycle | Continuous |
| Efficiency | 77% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Frame | 56CZ |
| Frame Length | 6 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 56CZ |
| Frequency | 60 Hz |
| Full Load Amps | 3.2/1.6A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 hp |
| Insulation Class | Class F |
| Ip Code | IP43 |
| Kva Code | J |
| Kw | 0.75 kW |
| Length | 14 11/25" |
| Lubrication | Polyrex EM |
| Max. Speed | 3450 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Reversible |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Speed | 3600 RPM |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.75 kW |
| Packaging | B |
| Phase | 3 |
| Power | 0.75 kW |
| Power Factor | 80 |
| Product Datasheet | leeson-119230-00.pdf |
| Resistance Main | 23.07 ohms |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Extension | 2.19 |
| Shaft Type | Single Special Extension |
| Speed | 3400-3600 RPM |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TF |
| Voltage | 230V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 77
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 080278
- Winding: T632161
- GROUP: 3
- Paint: GRAY - LIGHT (EPOXY)
- S. F Amps: 3.6 / 1.8
Documentation:
Product Variants
| Product | Model | Voltage | Motor Enclosure Design | Frame | Hp | Motor Shaft Design | Motor Application | Motor Mounting Type | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
120379.00 | 208-230/460V | Totally Enclosed Air Over | 145T | 3 hp | T | Aeration Fan Motor | - | - | €626.04 | |
 |
121944.00 | 208-230/460V AC | Totally Enclosed Fan Cooled | 145T | 3 hp | Keyed | Farm Duty | Rigid Base | 3-Phase | €1,521.37 | |
 |
119783.00 | 208-230/460V | Totally Enclosed Air Over | 56HZ | 3 hp | NEMA 56 | Farm Duty | Rigid Base | 3-Phase | €906.06 | |
 |
5K49NN4052T | 380/460V AC | Totally Enclosed Fan Cooled | 56C | 1 1/2 hp | Keyed | Farm Duty | Face | 3 Phase | €163.56 | |
 |
119534.00 | - | - | - | - | - | - | - | - | €1,632.52 | |
 |
121934.00 | 230/460V AC | Totally Enclosed Fan Cooled | 140 | - | Keyed | Feather Picker | Rigid Base | - | €994.40 | |
 |
119535.00 | 460V | - | - | - | - | - | - | - | €346.94 |
