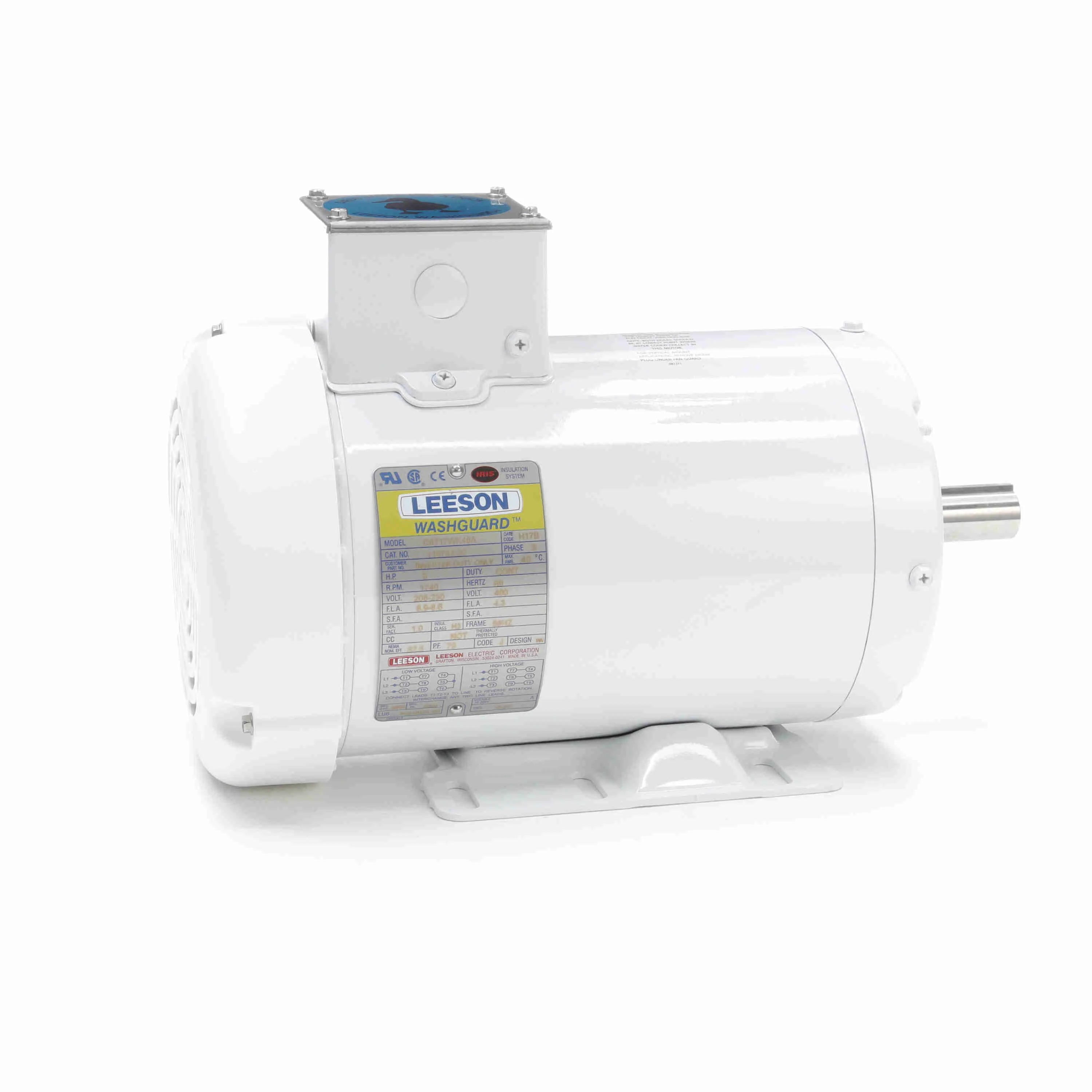

LEESON 119783.00 C6T17WK48A Feather Picker Motor, 3 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Friday, May 22
€906.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | 48 |
| Amps | 8.6/4.3A |
| Application | Farm Duty |
| Bearing Type | Ball |
| Design Code | Inv |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Electrical Type | Squirrel Cage, Inverter Duty |
| Enclosure Type | Tefc |
| Frame | 56HZ |
| Frame Length | 8" |
| Frame Material | Rolled Steel |
| Frame Type | 56HZ |
| Frequency | 60 Hz |
| Full Load Amps | 8.6-8.9/4.3A |
| Height | 10 22/25" |
| Hp | 3 hp |
| Hz | 60 Hz |
| Ins. Class | Class H |
| Insulation Class | Class H |
| Ip Code | IP55 |
| Kva Code | J |
| Kw | 2.2 kW |
| Length | 19 1/2" |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1740 RPM |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1 |
| Motor Shaft Design | NEMA 56 |
| Motor Shaft Rotation | Reversible |
| Motor Sub Application | Feather Picker Motor |
| Motor Thermal Protection | No Protection |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1740 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 82.5% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 13 15/16" |
| Phase | 3 |
| Power Factor | 79 |
| Product Datasheet | leeson-119783-00.pdf |
| Resistance Main | 5.4 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2.38" |
| Shaft Type | NEMA 56 |
| Standards | Csa, Ul |
| Starting Method | Inverter Only |
| Thermal Protection | No Protection |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Motor Enclosure Design | Frame | Motor Shaft Design | Motor Application | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
119230.00 | 230V | 1 hp | 3600 RPM | Totally Enclosed Fan Cooled | 56CZ | - | - | - | €769.40 | |
 |
120379.00 | 208-230/460V | 3 hp | 3450 RPM | Totally Enclosed Air Over | 145T | T | Aeration Fan Motor | - | €626.04 | |
 |
121944.00 | 208-230/460V AC | 3 hp | 1740 RPM | Totally Enclosed Fan Cooled | 145T | Keyed | Farm Duty | 3-Phase | €1,435.49 | |
 |
5K49NN4052T | 380/460V AC | 1 1/2 hp | 1725/1425 RPM | Totally Enclosed Fan Cooled | 56C | Keyed | Farm Duty | 3 Phase | €163.56 | |
 |
119534.00 | - | - | - | - | - | - | - | - | €1,632.52 | |
 |
121934.00 | - | - | - | - | - | - | - | - | €994.40 | |
 |
119535.00 | - | - | - | - | - | - | - | - | €346.94 |
