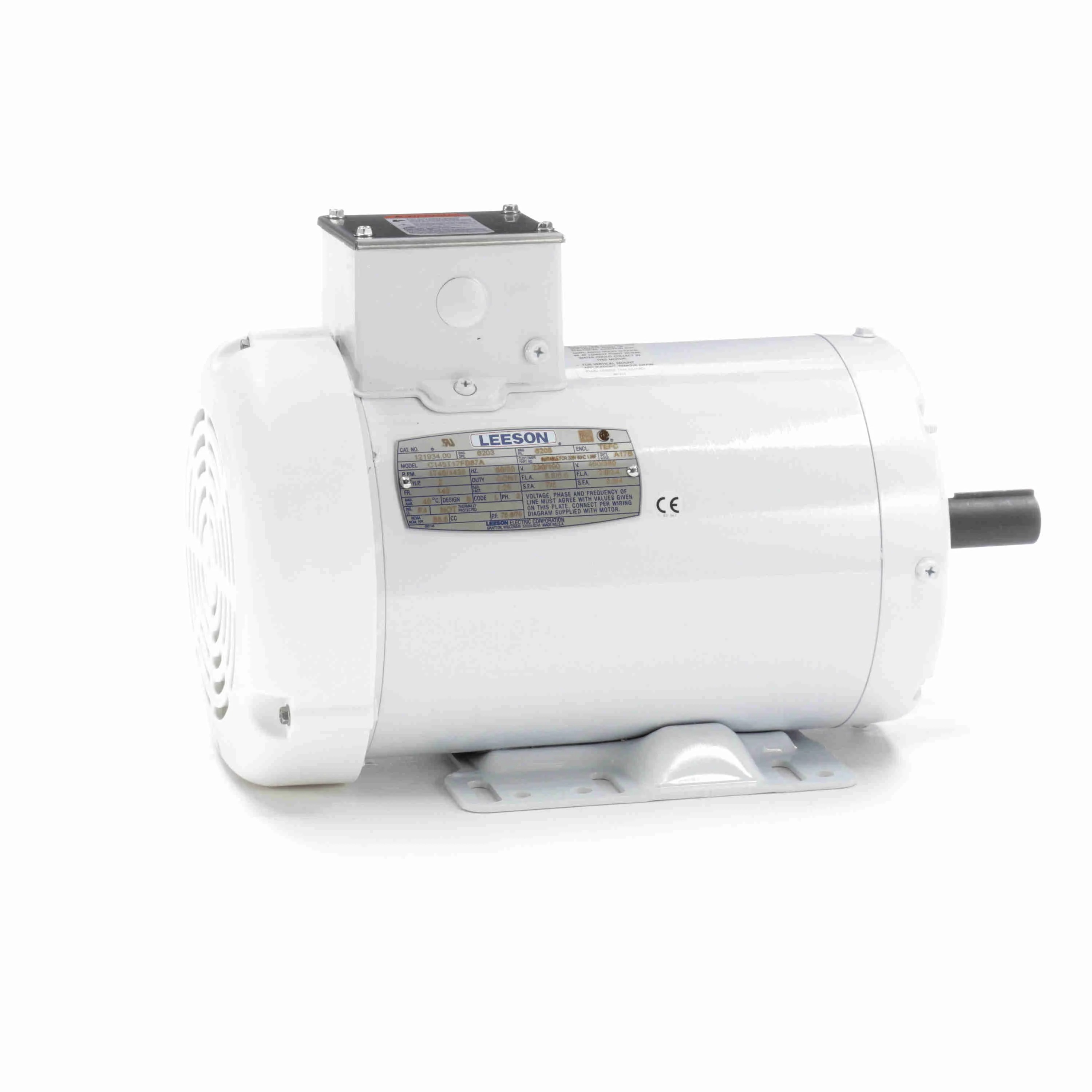

LEESON 121934.00 C145T17FB87A Washdown Feather Picker Motor, 2 And 2 HP, 60 And 50 Hz, 1800 And 1500 RPM
Get it by Monday, Aug 31
€994.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 40°C |
| Application | Pumps, Blowers, Valves, Petro Chemical, Paint Booths |
| Compatible Part/model Number | Baldor WDM3558TP9 |
| Duty Cycle | Continuous |
| Efficiency Group | 86.5 |
| Electrical Phase | 3 |
| Enclosure | Totally Enclosed Fan Cooled |
| Enclosure Type | Totally Enclosed |
| Family Series | Leeson Motors, Agricultural Duty Series |
| Frame | 140 |
| Frame Material | Rolled Steel |
| Frame Size | 145 |
| Frequency | 60 Hz |
| Full Load Amps | 7.2-7/3.5A |
| Includes | Gasketed Conduit Box, Shaft Slinger |
| Insulation | F4 |
| Kw | 1.5 kW |
| Length Less Shaft | 11 1/2" |
| Motor Application | Feather Picker |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Sub Application | Hatchery |
| Mounting | Metric |
| No. Of Speeds | 1 |
| Nominal Voltage | 208/240V AC |
| Overall Length | 13 3/4" |
| Product Datasheet | leeson-121934-00.pdf |
| Rotation | Reversible |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Speed | 1701-1800 RPM , 1745 RPM |
| Type | Agricultural Duty |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage | Motor Enclosure Design | Frame | Hp | Motor Shaft Design | Motor Application | Motor Mounting Type | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
119230.00 | 230V | Totally Enclosed Fan Cooled | 56CZ | 1 hp | - | - | - | - | €769.40 | |
 |
120379.00 | 208-230/460V | Totally Enclosed Air Over | 145T | 3 hp | T | Aeration Fan Motor | - | - | €626.04 | |
 |
121944.00 | 208-230/460V AC | Totally Enclosed Fan Cooled | 145T | 3 hp | Keyed | Farm Duty | Rigid Base | 3-Phase | €1,521.37 | |
 |
119783.00 | 208-230/460V | Totally Enclosed Air Over | 56HZ | 3 hp | NEMA 56 | Farm Duty | Rigid Base | 3-Phase | €906.06 | |
 |
5K49NN4052T | 380/460V AC | Totally Enclosed Fan Cooled | 56C | 1 1/2 hp | Keyed | Farm Duty | Face | 3 Phase | €163.56 | |
 |
119534.00 | - | - | - | - | - | - | - | - | €1,632.52 | |
 |
119535.00 | 460V | - | - | - | - | - | - | - | €346.94 |
