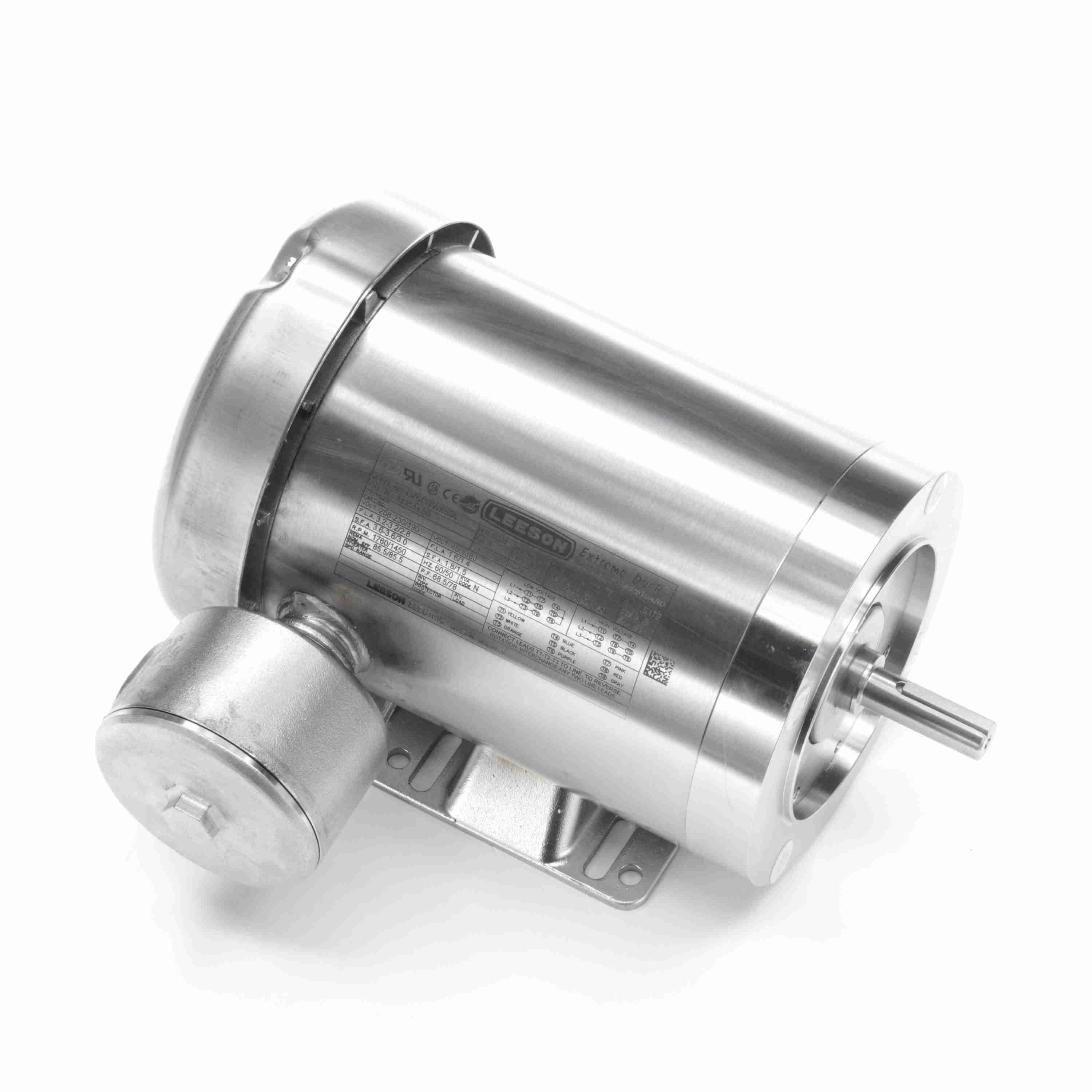

LEESON 119511.00 CZ6T17UK1C General Purpose Motor, 1/0.75 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Get it by Monday, Dec 22
10.00% off
€3,033.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 3.2/1.6A |
| Bearing Type | Ball |
| Bolt Circle Dia. | 5 7/8" |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | Tefc |
| Endshield Material | Stainless Steel |
| Frame | 56C |
| Frame Length | 7" |
| Frame Material | Stainless Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 3.2-3.2/1.6A |
| Height | 12 22/25" |
| Hp | 1 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Rating | 6:1 |
| Ip Code | IP69 |
| Kva Code | No |
| Kw | 0.75 kW |
| Length | 17.94" |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1760 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | NEMA 56 |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1760 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 85.5% |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 11 15/16" |
| Phase | 3 |
| Power Factor | 68.5 |
| Product Type | Washdown Motor |
| Resistance Main | 12.96 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1.87" |
| Shaft Type | NEMA 56 |
| Starting Method | Line Or Inverter |
| Thermal Protection | No Protection |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Weight | 51 lbs. |
| Width | 13.06" |
Shipping Info:
| Ship weight (kg) | 22.95 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Full Load Amps | Service Factor | Phase | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
116466.00 | 208-230/460V | 1725 RPM | 33/100 hp | 0.65A | 1.15 | 3 | Face/Base | Three Phase | €1,321.26 | |
 |
122197.00 | 208-230/460V | 1745 RPM | 2 hp | 2A | 1.15 | 3 | Rigid Base | Three Phase | €2,541.76 | |
 |
141427.00 | 230V | 1750 RPM | 7 1/2 hp | 26.4/13.2A | 1.15 | 3 | Rigid Base | Three Phase | €1,864.33 | |
 |
119458.00 | 208-230/460V | 3490 RPM | 1 1/2 hp | 4.4-4/2A | 1.15 | 3 | Face/Base | Three Phase | €1,533.65 | |
 |
119462.00 | 208-230/460V | 3490 RPM | 3 hp | 8.8-8/4A | 1.15 | 3 | Face | Three Phase | €1,599.38 | |
 |
141358.00 | 230/460V | 3495 RPM | 15 hp | 35/17.6A | 1.15 | 3 | Rigid Base | Three Phase | €5,484.32 | |
 |
141275.00 | 230/460V | 3525 RPM | 10 hp | 23.6/11.8A | 1.15 | 3 | Rigid Base | Three Phase | €7,441.39 |
