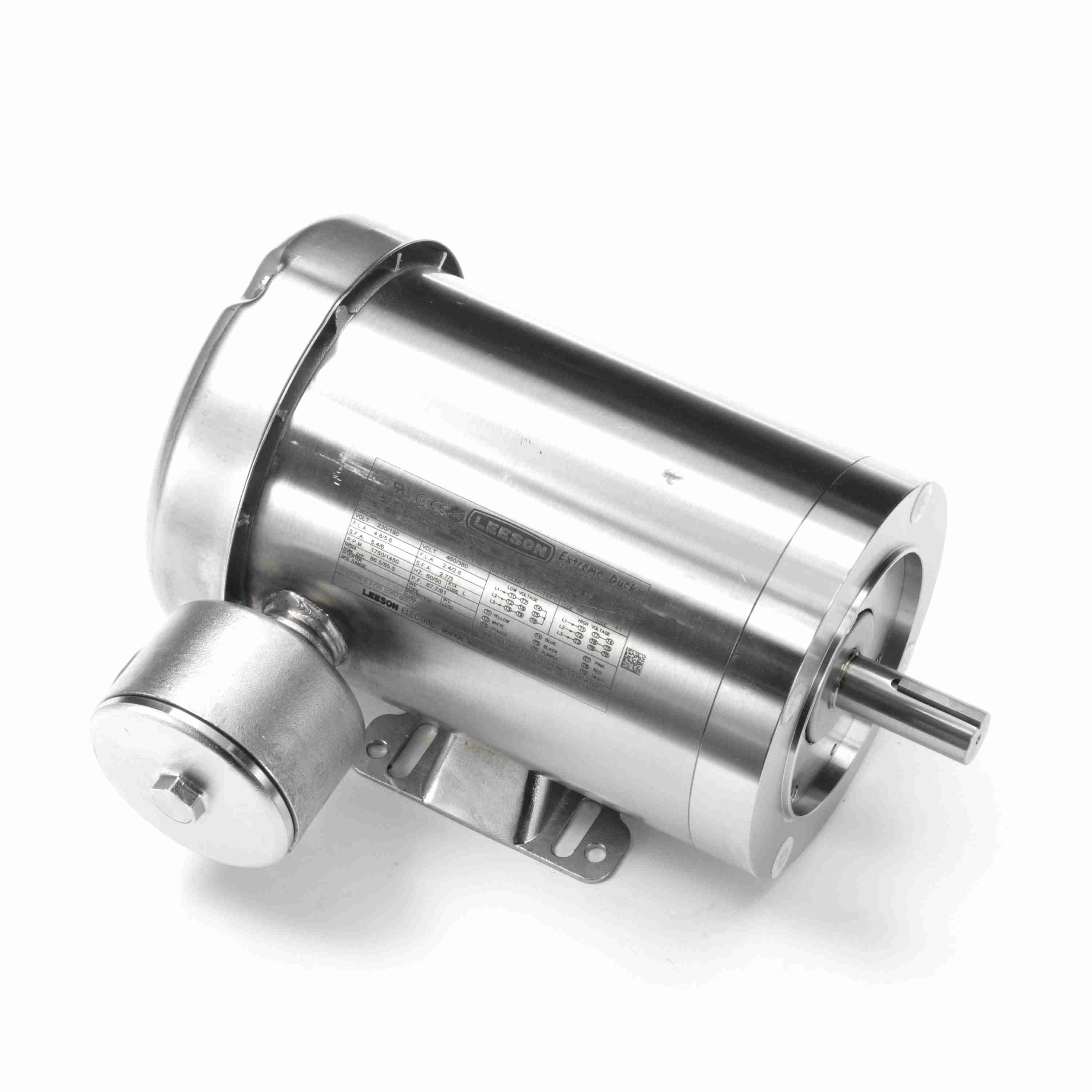

LEESON 121880.00 CZ143T17UK1C General Purpose Motor, 1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Thursday, Jul 2
5.00% off
€2,854.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Amps | 4.8/2.4A |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 7.38" |
| Bolt Circle Dia. | 5 7/8" |
| Cc Number | CC005A |
| Conduit Box | Oversized Stainless Steel Sidebox And Threaded Cover With O-Ring |
| Conduit Box Location | Exterior |
| Design Code | B |
| Drain Plug | None |
| Drain Plugs | None |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Endshield Grade | 300 Series , Stainless Steel |
| Endshields | 300 Series Stainless Steel |
| Finish | Paint Free |
| Frame | 143TC |
| Frame Length | 7 3/4" |
| Frame Material | Stainless Steel |
| Frame Type | 143TC |
| Frequency | 50/60 Hz , 60 Hz |
| Frequency | 50/60 Hz |
| Full Load Amps | 2.4A |
| Height | 12 22/25" |
| Hp | 1 1/2 hp |
| Included | Frame, Base, Conduit Box Cover Endshields, Bearing Carrier Cover |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP69 |
| Kva Code | L |
| Kw | 1.1 kW |
| Length | 17.94" |
| Length Less Shaft | 11 9/16" |
| Max. Ambient Temp. | 40°C |
| Max. Speed | 1750 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face/Base |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1750 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Opp Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 13 15/16" |
| Phase | 3 |
| Power Factor | 67.7 |
| Product Datasheet | leeson-121880-00.pdf |
| Product Type | Washdown Motor |
| Resistance Main | 9.12 ohms |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Grade | Grade 303 |
| Shaft Length | 2 1/4" |
| Shaft Material | Stainless Steel |
| Shaft Type | T |
| Speed | 1700-1800 RPM |
| Standards | Bissc Approved, Ce, Csa Certified, Ul Recognized |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V |
| Width | 13.06" |
Shipping Info:
| Ship weight (kg) | 26.1 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| HS code | 8501524000 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - G121749.00 / CZ143T17WK8C
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Frequency | Motor Enclosure Design | Full Load Amps | Mounting Type | Motor Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
121881.00 | 230V | 2 hp | 60 Hz | Totally Enclosed Fan Cooled | 2A | Rigid Base | Three Phase | 145TC | €2,046.12 | |
 |
121882.00 | 230/460V | 2 hp | 60 Hz | Totally Enclosed Fan Cooled | 2A | Rigid Base | Three Phase | 145TC | €2,065.47 | |
 |
103412.00 | 208-230/460V | 3/4 hp | 60 Hz | Totally Enclosed Fan Cooled | 2.5-2.4/1.2A | Rigid Base | Squirrel Cage Induction Run | S56C | €3,557.60 | |
 |
103414.00 | 208-230/460V | 3/4 hp | 60 Hz | Totally Enclosed Fan Cooled | 2.5-2.4/1.2A | Round | Squirrel Cage Induction Run | S56C | €1,663.89 | |
 |
119512.00 | 208-230/460V | 1 hp | 60 Hz | Totally Enclosed Fan Cooled | 3.2/1.6A | Round | Three Phase | 56C | €3,106.91 | |
 |
119520.00 | 208-230/460V | 1 1/2 hp | 60 Hz | Totally Enclosed Fan Cooled | 4.6-4.8/2.4A | Round | Three Phase | 56C | €1,815.13 | |
 |
119522.00 | 230/460V | 1 1/2 hp | 60 Hz | Totally Enclosed Fan Cooled | 4.8/2.4A | Rigid Base | Three Phase | 56C | €3,214.29 |
