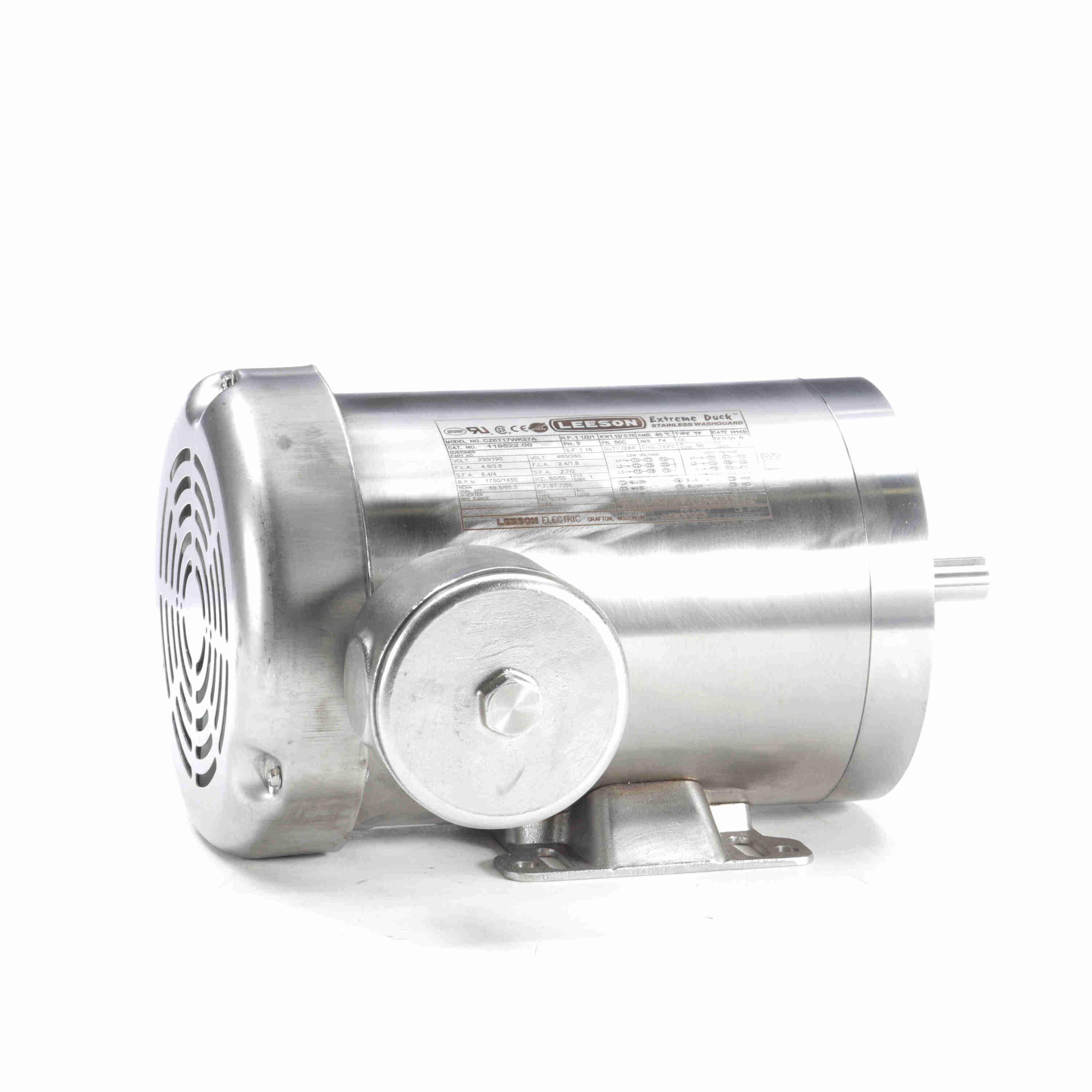

LEESON 119522.00 CZ6T17UK2B General Purpose Motor, 1.50/1 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM

Item: AJ2RDRModel: 119522.00Cross Ref: 60PV02 / CZ6T17UK2B

Check Availability

In Stock

Get it by Tuesday, Dec 23

~~€3,520.99~~

10.00% off

€3,168.89 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Washdown Motor
Ambient Temp.	104°F
Amps	4.8/2.4A
Application	Washdown
Bearing Protection	Shaft Shield
Bearing Type	Ball
Body Dia.	7 2/5"
Bolt Circle Dia.	5 7/8"
Code	L
Conduit Box Location	Exterior
Design Code	B
Drain Plug	(1) Drain Plugs In Conduit Box
Drive End Bearing Size	6205
Drive End Bearing Type	Ball
Duty Cycle	Continuous
Efficiency	86.5%
Electrical Type	Squirrel Cage, Inverter Rated
Enclosure Type	Tefc
Finish	Unfinished
Frame	56C
Frame Length	7 1/2"
Frame Material	Stainless Steel
Frame Type	56C
Frequency	60 Hz
Frequency	50/60 Hz
Full Load Amps	4.8/2.4A
Grease Type	Polyrex EM
Height	12 22/25"
Hp	1 1/2 hp
Hz	50/60 Hz
Ins. Class	Class F
Insulation Class	Class F
Inverter Rating	3:1
Ip Code	IP69
Kva Code	L
Kw	1.1 kW
Length	17.94"
Length Less Shaft	10 1/2"
Manufacturers Warranty Length	1 yr.
Max. Ambient Temp.	104°F
Max. Rpm	1750 RPM
Motor Application	Washdown
Motor Bearings	Ball
Motor Design	3-Phase
Motor Enclosure Design	Totally Enclosed Fan Cooled
Motor Frame Material	Stainless Steel
Motor Mounting Position	Horizontal
Motor Mounting Type	Face, Base
Motor Orientation	Horizontal
Motor Service Factor	1.2
Motor Shaft Design	Keyed
Motor Shaft Rotation	Clockwise, Counter Clockwise
Motor Shaft Rotation	Clockwise/Counter Clockwise
Motor Thermal Protection	Manual
Motor Type	Three Phase
Mounting Type	Rigid Base
Nameplate Rpm	1750 RPM
Nema Design	B
No. Of Poles	4
No. Of Speeds	1
Nominal Efficiency	86.5%
Opp. Drive End Bearing Size	6205
Opp. Drive End Bearing Type	Ball
Overall Length	12 7/16"
Packaging	F
Phase	3
Power	1.1 kW
Power Factor	67.7
Product Type	Washdown Motor
Removable Base	No
Resistance Main	9.12 ohms
Rotation	Reversible
Rpm	1700-1800 RPM
Service Factor	1.15
Shaft Dia.	5/8"
Shaft Length	1.87"
Shaft Material	Stainless Steel
Shaft Type	NEMA 56
Standards	Ce, Csa Certified, Ul Recognized
Starting Method	Line Or Inverter
Thermal Protection	No Protection
Type	TF
Usable @ 200v	No
Usable @ 208v	No
Voltage	230/460V
Weight	59 lbs.
Width	13.06"

Shipping Info:

Ship weight (kg)	26.55
Ship height (cm)	32.72
Ship length (cm)	45.57
Ship width (cm)	33.17
Country of Origin	US

Product Details:

Supersedes Leeson - 117296.00
Eff 100%: 86.5
Eff 75%: 85
Bearing OPE: 6205
CC Number: EXEMPT
Bearing PE: 6205
Nameplate: 213-0016-001
Winding: T634341
GROUP: 7
S. F Amps: 5.4 / 2.7

Product Variants

Model	Voltage	Hp	Nameplate Rpm	Finish	Frame	Full Load Amps	Motor Mounting Type	Ambient Temp.	Price
117119.00	208-230/460V	1/2 hp	1725 RPM	Paint Free	56C	1.6A	Face, Base	104°F	€2,829.77
117121.00	208-230/460V	3/4 hp	1725 RPM	Paint Free	56C	1.1A	Face, Base	104°F	€2,924.91
117122.00	230/460V	1 hp	3450 RPM	Paint Free	56C	1.3A	Face, Base	104°F	€2,881.68
121880.00	230/460V	1 1/2 hp	1750 RPM	Paint Free	143TC	2.4A	Rigid Base	104°F	€2,889.32
121881.00	230V	2 hp	3490 RPM	Paint Free	145TC	2A	Rigid Base	104°F	€2,046.12
121882.00	230/460V	2 hp	1745 RPM	Paint Free	145TC	2A	Rigid Base	104°F	€2,065.47
103412.00	208-230/460V	3/4 hp	1725/1425 RPM	Paint Free	S56C	2.5-2.4/1.2A	-	40°C	€3,897.08
