LEESON 119526.00 CZ6T34UK1B Washdown Motor 50-60 Hertz | AJ2RDU CZ6T34UK1B

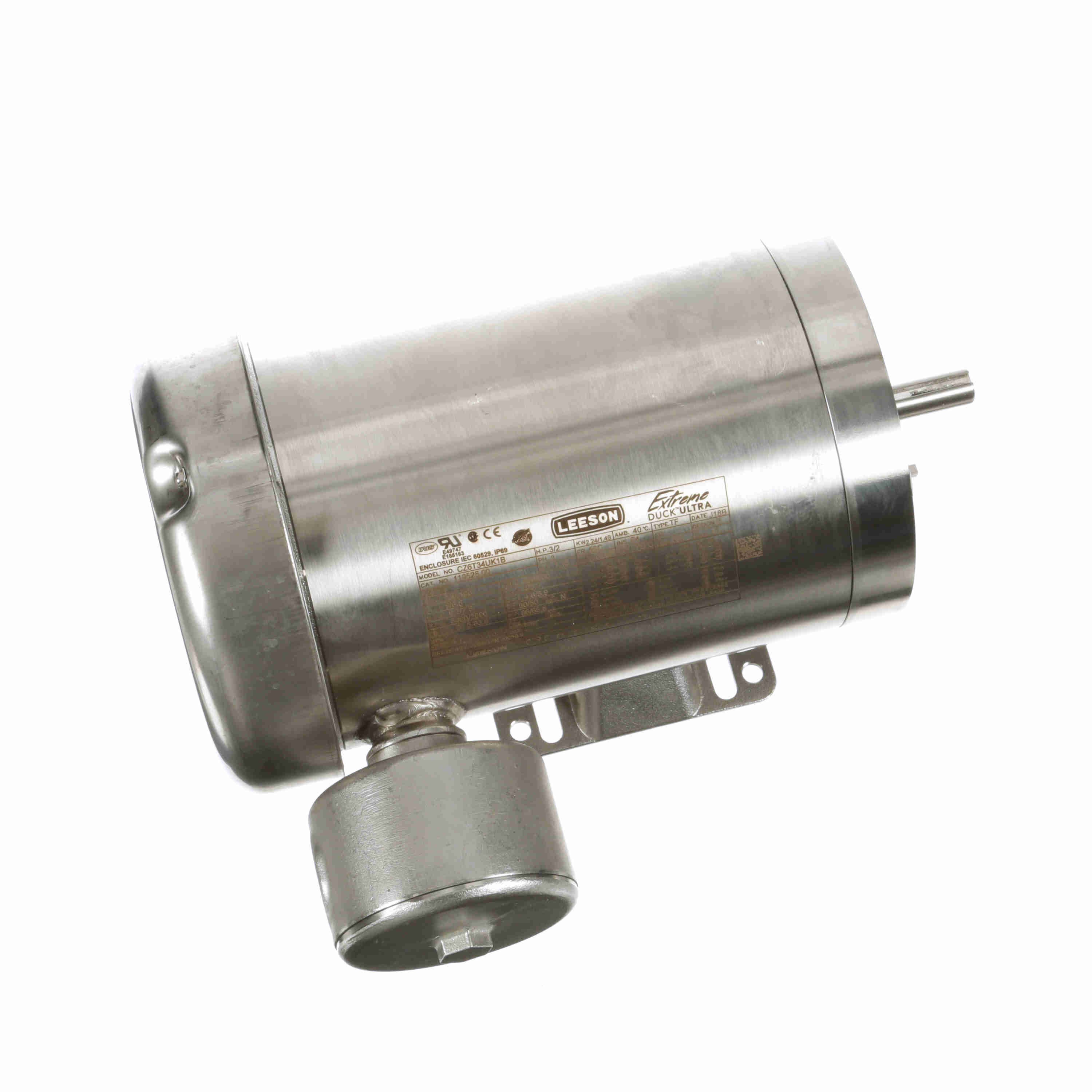

LEESON 119526.00 CZ6T34UK1C General Purpose Motor, 3/2 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 and 3000 RPM

Item: AJ2RDUModel: 119526.00Cross Ref: 820JD4 / CZ6T34UK1C
Check Availability
In Stock
HP
Frame

Get it by Wednesday, May 20

€4,861.53
5.00% off
€4,618.46 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Washdown Motor
Ambient Temp. 40°C
Amps 8/4A
Code N
Design Code B
Drive End Bearing Size 6205
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 86.5%
Electrical Type Squirrel Cage, Inverter Rated
Enclosure Type Tefc
Finish Paint Free
Frame 56C
Frame Length 8"
Frame Material Stainless Steel
Frame Type 56C
Frequency 60 Hz
Frequency 50/60 Hz
Full Load Amps 8/4A
Grade Grade 300
Grease Type Polyrex EM
Height 12 22/25"
Hp 3 hp
Insulation Class Class F
Ip Code IP69
Kva Code No
Kw 2.2 kW
Length 17.94"
Max. Rpm 3490 RPM
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Orientation Horizontal
Motor Shaft Rotation Clockwise, Counter Clockwise
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Type Squirrel Cage Inverter Rated
Mounting Type Rigid Base
Nameplate Rpm 3600/3000 RPM
No. Of Poles 2
No. Of Speeds 1
Opp. Drive End Bearing Size 6205
Opp. Drive End Bearing Type Ball
Phase 3
Power 2.2 kW
Power Factor 86
Product Datasheet leeson-119526-00.pdf
Resistance Main 3.83 ohms
Rotation Reversible
Rpm 3400-3600 RPM
Service Factor 1.15
Shaft Dia. 5/8"
Shaft Length 1 22/25"
Shaft Type NEMA 56
Starting Method Line Or Inverter
Thermal Protection No Protection
Type TF
Voltage 230/460V
Width 13.06"

Shipping Info:

Ship weight (kg) 29.07
Ship height (cm)32.72
Ship length (cm)45.57
Ship width (cm)33.17
Country of OriginUS

Product Details:

    • Supersedes Leeson - 119203.00 / CZ6T34WK26B
    • Bearing OPE: 6205
    • CC Number: EXEMPT
    • Bearing PE: 6205
    • Nameplate: 213-0016
    • Winding: T632209
    • GROUP: 3
    • S. F Amps: 9.2 / 4.6
    • Eff 100%: 86.5 / 83.8

Documentation:

Datasheet

Product Variants

ProductModelVoltageHpMotor Enclosure DesignNameplate RpmFull Load AmpsMounting TypeMotor TypeFramePrice
LEESON 121880.00 Washdown Motor 3-phase Tefc 1-1/2 Hp 1750 Rpm | AE7DYW 5XAR9 / CZ143T17WK13A 121880.00230/460V1 1/2 hpTotally Enclosed Fan Cooled1750 RPM2.4ARigid BaseThree Phase143TC€2,889.32
LEESON 121881.00 Washdown Motor 3-phase Tefc 2 Hp 3490 Rpm | AE7DYX 5XAT0 / CZ145T34WK19C 121881.00230V2 hpTotally Enclosed Fan Cooled3490 RPM2ARigid BaseThree Phase145TC€2,046.12
LEESON 121882.00 Washdown Motor 3-phase Tefc 2 Hp 1745 Rpm | AE7DYY 5XAT1 / CZ145T17WK34C 121882.00230/460V2 hpTotally Enclosed Fan Cooled1745 RPM2ARigid BaseThree Phase145TC€2,065.47
LEESON 103412.00 CZ4T17UK1C Washdown Motor 50-60 Hertz | AJ2PRY CZ4T17UK1C 103412.00208-230/460V3/4 hpTotally Enclosed Fan Cooled1725/1425 RPM2.5-2.4/1.2ARigid BaseSquirrel Cage Induction RunS56C€3,897.08
LEESON 103414.00 CZ4T17UC1C Washdown Motor 50-60 Hertz | AJ2PTA CZ4T17UC1C 103414.00208-230/460V3/4 hpTotally Enclosed Fan Cooled1800/1500 RPM2.5-2.4/1.2ARoundSquirrel Cage Induction RunS56C€1,663.89
LEESON 119512.00 CZ6T17UC1B Washdown Motor 50-60 Hertz | AJ2RDP 52ZW24 / CZ6T17UC1B 119512.00208-230/460V1 hpTotally Enclosed Fan Cooled1760 RPM3.2/1.6ARoundThree Phase56C€2,937.94
LEESON 119520.00 CZ6T17UC2B Washdown Motor 50-60 Hertz | AJ2RDQ 52ZW26 / CZ6T17UC2B 119520.00208-230/460V1 1/2 hpTotally Enclosed Fan Cooled1750 RPM4.6-4.8/2.4ARoundThree Phase56C€1,815.13
